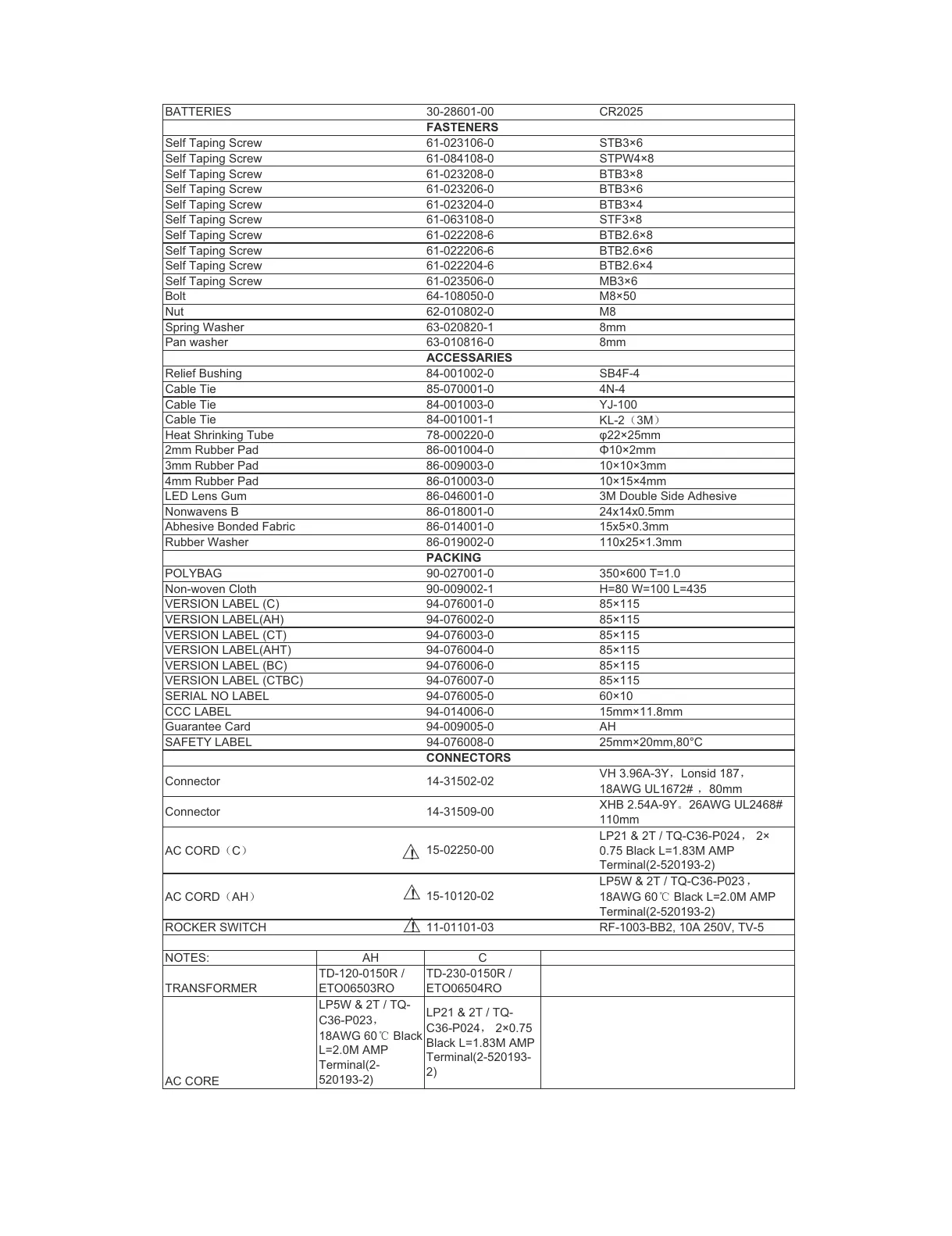

NAD C 315BEE - Batteries, Fasteners, and Packing Items

BATTERIES 30-28601-00 CR2025
FASTENERS
Self Taping Screw 61-023106-0 STB3×6
Self Taping Screw 61-084108-0 STPW4×8
Self Taping Screw 61-023208-0 BTB3×8
Self Taping Screw 61-023206-0 BTB3×6
Self Taping Screw 61-023204-0 BTB3×4
Self Taping Screw 61-063108-0 STF3×8
Self Taping Screw 61-022208-6 BTB2.6×8
Self Taping Screw 61-022206-6 BTB2.6×6
Self Taping Screw 61-022204-6 BTB2.6×4
Self Taping Screw 61-023506-0 MB3×6
Bolt 64-108050-0 M8×50
Nut 62-010802-0 M8
Spring Washer 63-020820-1 8mm
Pan washer 63-010816-0 8mm
ACCESSARIES
Relief Bushing 84-001002-0 SB4F-4
Cable Tie 85-070001-0 4N-4
Cable Tie 84-001003-0 YJ-100
Cable Tie 84-001001-1
KL-2˄3M˅
Heat Shrinking Tube 78-000220-0 φ22×25mm
2mm Rubber Pad 86-001004-0 Φ10×2mm
3mm Rubber Pad 86-009003-0 10×10×3mm
4mm Rubber Pad 86-010003-0 10×15×4mm
LED Lens Gum 86-046001-0 3M Double Side Adhesive
Nonwavens B 86-018001-0 24x14x0.5mm
Abhesive Bonded Fabric 86-014001-0 15x5×0.3mm
Rubber Washer 86-019002-0 110x25×1.3mm
PACKING
POLYBAG 90-027001-0 350×600 T=1.0
Non-woven Cloth 90-009002-1 H=80 W=100 L=435
VERSION LABEL (C) 94-076001-0 85×115
VERSION LABEL(AH) 94-076002-0 85×115
VERSION LABEL (CT) 94-076003-0 85×115
VERSION LABEL(AHT) 94-076004-0 85×115
VERSION LABEL (BC) 94-076006-0 85×115
VERSION LABEL (CTBC) 94-076007-0 85×115
SERIAL NO LABEL 94-076005-0 60×10
CCC LABEL 94-014006-0 15mm×11.8mm
Guarantee Card 94-009005-0 AH
SAFETY LABEL 94-076008-0 25mm×20mm,80°C
CONNECTORS
Connector 14-31502-02
VH 3.96A-3YˈLonsid 187ˈ
18AWG UL1672# ˈ80mm
Connector 14-31509-00
XHB 2.54A-9YDŽ26AWG UL2468#
110mm
AC CORD˄C˅
15-02250-00
LP21 & 2T / TQ-C36-P024ˈ 2×
0.75 Black L=1.83M AMP
Terminal(2-520193-2)
AC CORD˄AH˅
15-10120-02
LP5W & 2T / TQ-C36-P023 ˈ
18AWG 60ć Black L=2.0M AMP
Terminal(2-520193-2)
ROCKER SWITCH 11-01101-03 RF-1003-BB2, 10A 250V, TV-5
NOTES: AH C
TRANSFORMER
TD-120-0150R /
ETO06503RO
TD-230-0150R /
ETO06504RO
AC CORE
LP5W & 2T / TQ-
C36-P023ˈ
18AWG 60ć Black
L=2.0M AMP
Terminal(2-
520193-2)
LP21 & 2T / TQ-
C36-P024ˈ 2×0.75
Black L=1.83M AMP
Terminal(2-520193-
2)
Ƹ
!
Ƹ
!
Ƹ
!
