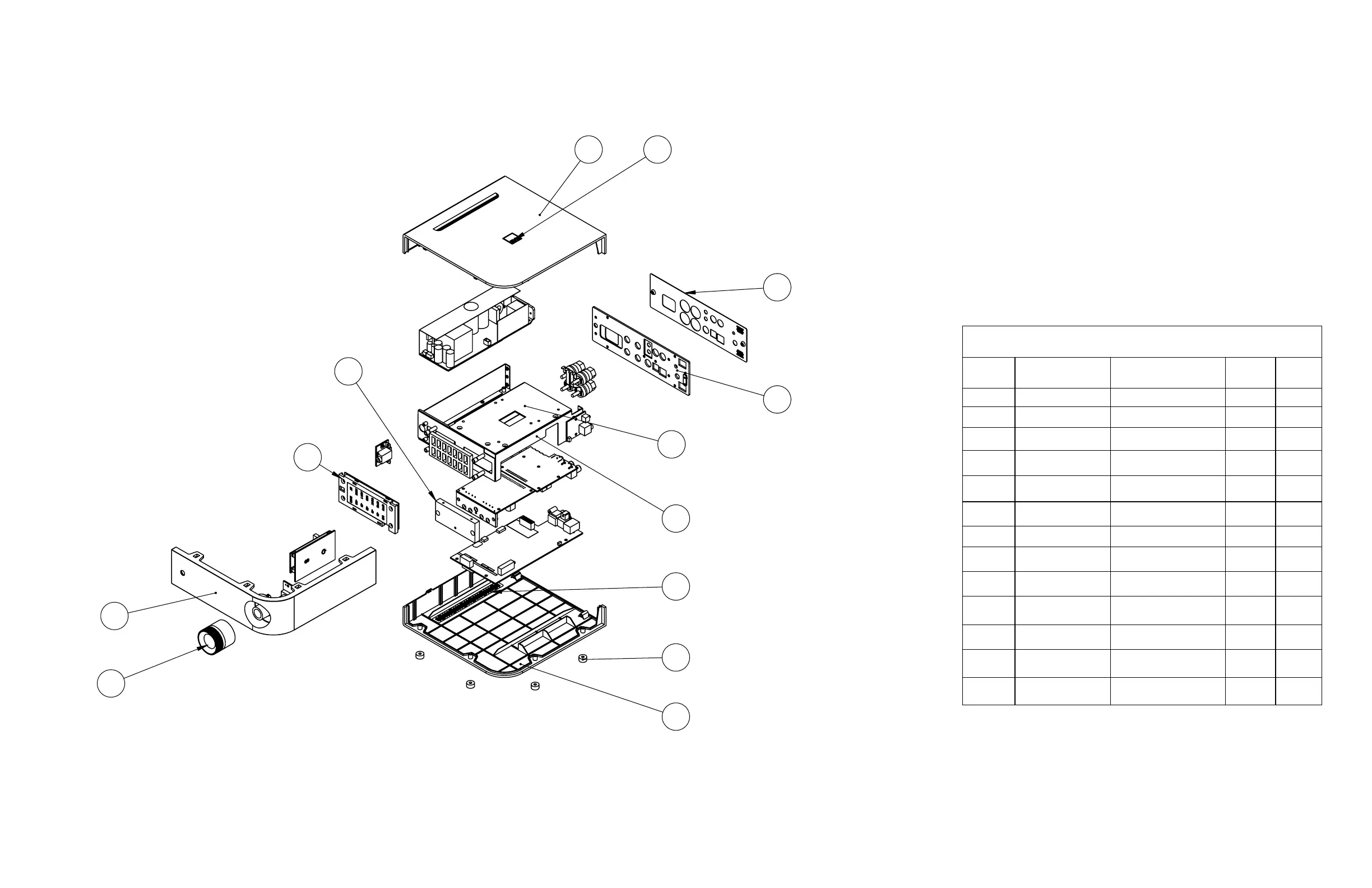

NAD D3020 - Exploded Views; Mechanical Exploded View and Parts List

1
3
4
2
6
5
9
8
10
9
12
7
13
D3020 PART LIST
ITEM PART NO. PART NAME QTY REMARK
1 77-351001-1 TOP PANEL 1
2
70-351003-1 BADGE 1
3
67-359001-0B REAR PLATE 1
4
70-359001-0 INNER PLATE 1
5
70-359003-0 HEAT SINK E 1
6
66-359001-0 U TYPE BRAKCET 1
7
66-351002-0 VENT PLATE 2
8
75-351002-0 ROUND COVER 4
9
77-351002-1 BOTTOM COVER 1
10
J71-325002-0 KNOB_SEC 1
11
76-351011-0B FROTN PANEL 1
12
75-359001-0 LED BRACKET 1
13
70-359002-0 HEAT SINK C 1
51
Exploded View Mechanical
