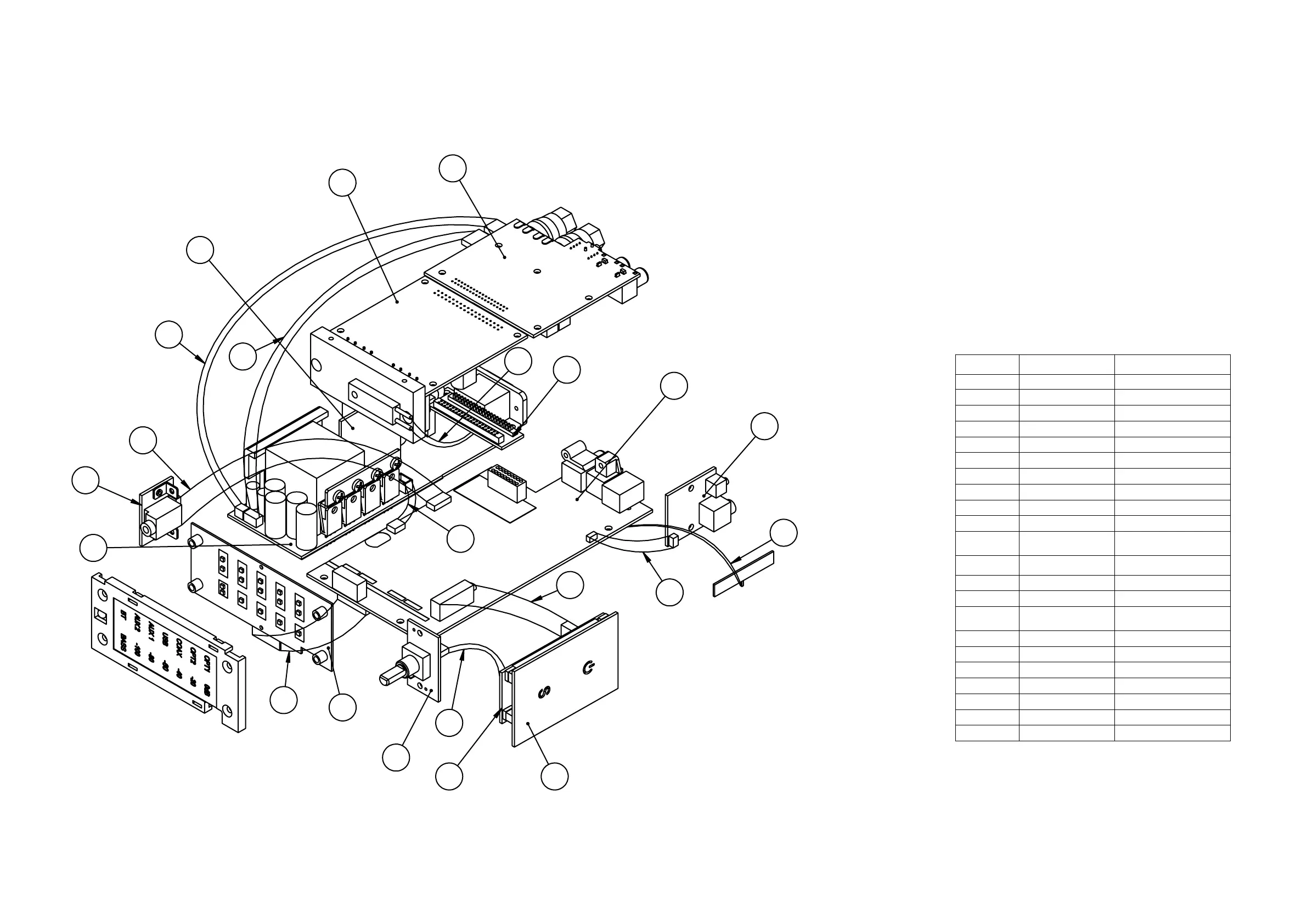

NAD D3020 - Electrical Exploded View and Board Identification

7
8
5
6
4
2
1
10
12
11
3
13
14
15
17
18
19
21
20
16
9
22
ITEM PN. NAME
1 14-32306-00
2 14-32304-00
3 14-32305-00 FFC 5P 45mm
4 14-32314-00 FFC 14P 30mm
5 14-32306-01 FFC 6P 40mm
6 14-32310-00
7 14-32305-01
8 29-04601-02
9 A07-70022-10
10 14-32303-01
11 01-32315-00 HEADPHONE BOARD
12 01-32309-00 PSU BOARD
13 01-32306-00 FPP BOARD
14 01-32313-00 POT BOARD
15 01-32307-00 TOUCH B BORAD
16 01-32308-00 TOUCH A BOARD
17 01-32312-00 TRIGGER BOARD
18 01-32302-00 PREAMP BOARD
19 01-32316-00 CONNECTIING BOARD
20 01-32304-00 OUTPUT BOARD
21 01-32310-00 UCD102 BOARD
22 01-32317-00 PSU-2 BOARD
Exploded View Electrical
52
Not Serviceable
