NAD M12 - OPERATION; EQ, Speaker Setup, and Source Configuration

EQ

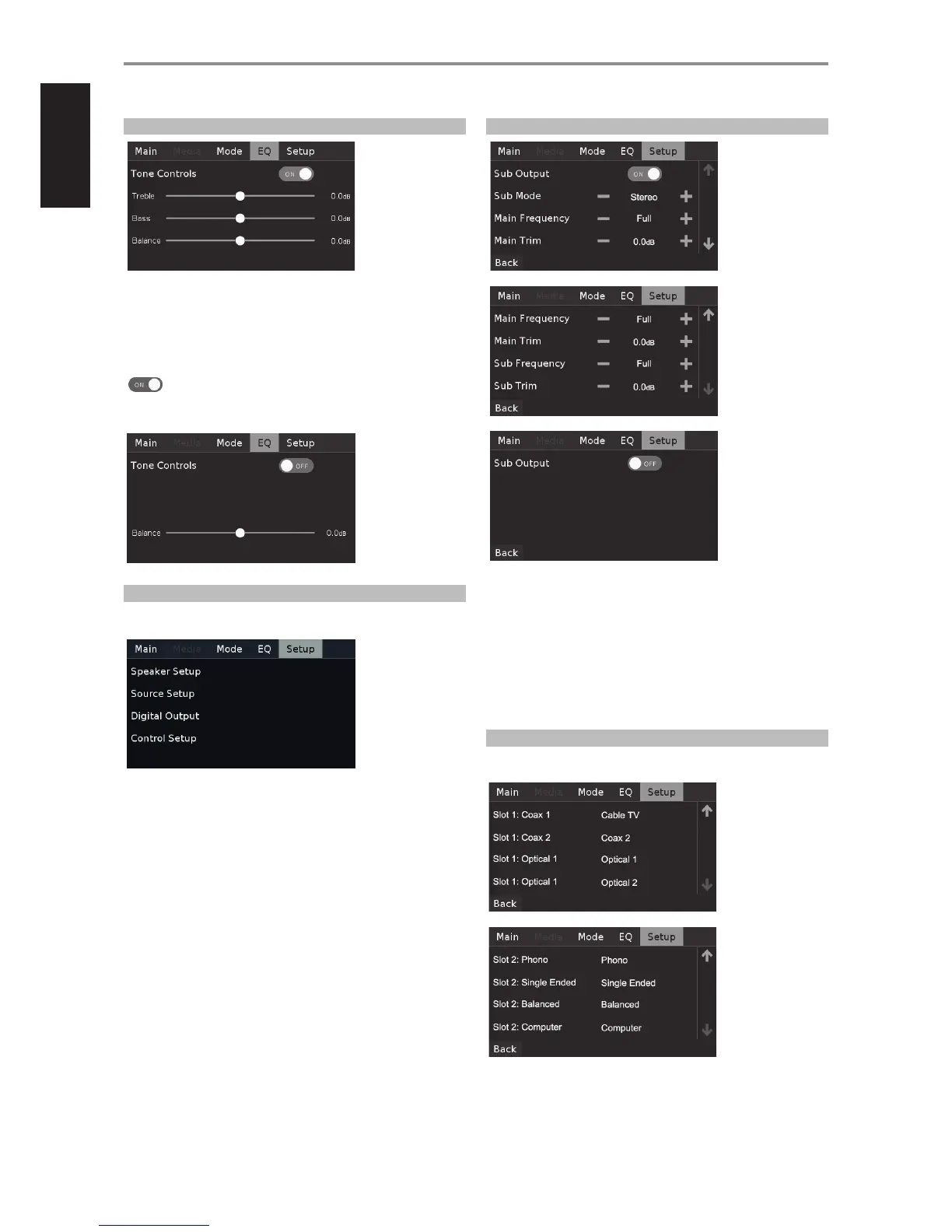

The M12 has the following Tone Control levels – Treble, Bass and Balance.
Bass and Treble controls only aect the low bass and high treble leaving
the critical midrange frequencies free of coloration. The Balance control
adjusts the relative levels of the left and right speakers.
h : Slide to adjust treble, bass or balance level.
: Slide to turn ON or OFF Tone Controls. At OFF setting, tone
controls (Treble and Bass) are disabled or defeated – Balance option
remains available.
SETUP
The Setup menu contains the menu options for Speaker Setup, Source
Setup, Digital Output and Control Setup.
SPEAKER SETUP
Sub Output: At “ON” Setting, all subwoofer settings are in eect. At “OFF”
setting, all subwoofer settings are disabled.
Sub Mode: Mono or Stereo.
Main Frequency: 40Hz to 200Hz and Full.
Main Trim: -12.0 dB to 0.0 dB.
Sub Frequency: 40Hz to 200Hz and Full. Selected subwoofer crossover
frequency and below will be directed to subwoofer output.
Sub Trim: -12.0 dB to 0.0 dB. Subwoofer trim allows exact volume
matching of the subwoofer level to the main speaker level.
SOURCE SETUP
Display contents of available source card modules as slotted in the rear
panel. Below is a description of the Source Setup display contents
Slot 1: Location slot of the Source module in the rear panel.
Coax 1: Coaxial 1 input.
Cable TV: Source name for Coaxial 1 input. Source name can be changed
in the “Name” section shown below.
OPERATION
USING THE M12
