ATTENTION
Please make sure all ancillary equipment is turned o and that the MT2
is not yet connected to its dedicated power supply.
1 LED INDICATOR
• This LED indicates the status of the MT2. Below is a description of
the LED indicator colors.
LED COLOR DESCRIPTION
Fast ashing blue
Powering up
Boot up/reboot
Slow ashing blue No WiFi connection
Alternately ashing blue and pink Hot spot mode
Flashing red Reset mode
Solid blue WiFi connected
2 RESET
• The RESET button restores the MT2 to its factory default settings.
• Use a paper clip or similar to poke the RESET button – the front LED
ashes red. Release paper clip. MT2 will reset and reboot itself.
3 SETUP
• The SETUP button initiates wireless conguration.
• Press and hold SETUP button until the front LED indicator
alternately ashes blue and pink. The MT2 is now at Hotspot mode.
• Refer also to the section below about WIRELES CONNECTION
CONFIGURATION.
4 ANALOG OUT
• Plug-in the 3.5mm mini-stereo end of the supplied analog audio
adaptor to this port. Then, connect the two RCA male ends of the
adaptor to applicable analog audio input of a receiver, amplier or
any compatible device.
5 OPTICAL OUT
• Using a TOSLINK optical cable (not supplied), connect OPTICAL OUT
to corresponding optical digital audio input of compatible devices
such as receivers, computer soundcard or other digital processors.
6 SERVICE
• For servicing purposes only. Not for consumer use. Only authorized
NAD service personnel can access this SERVICE port.
7 5V DC IN
• Before connecting the supplied Plug-in Power Supply to the wall
outlet, connect rmly rst the other end to MT2’s 5V DC IN.
• Always disconnect the Plug-in Power Supply from the wall outlet
rst, before disconnecting the cable from MT2’s 5V DC IN.

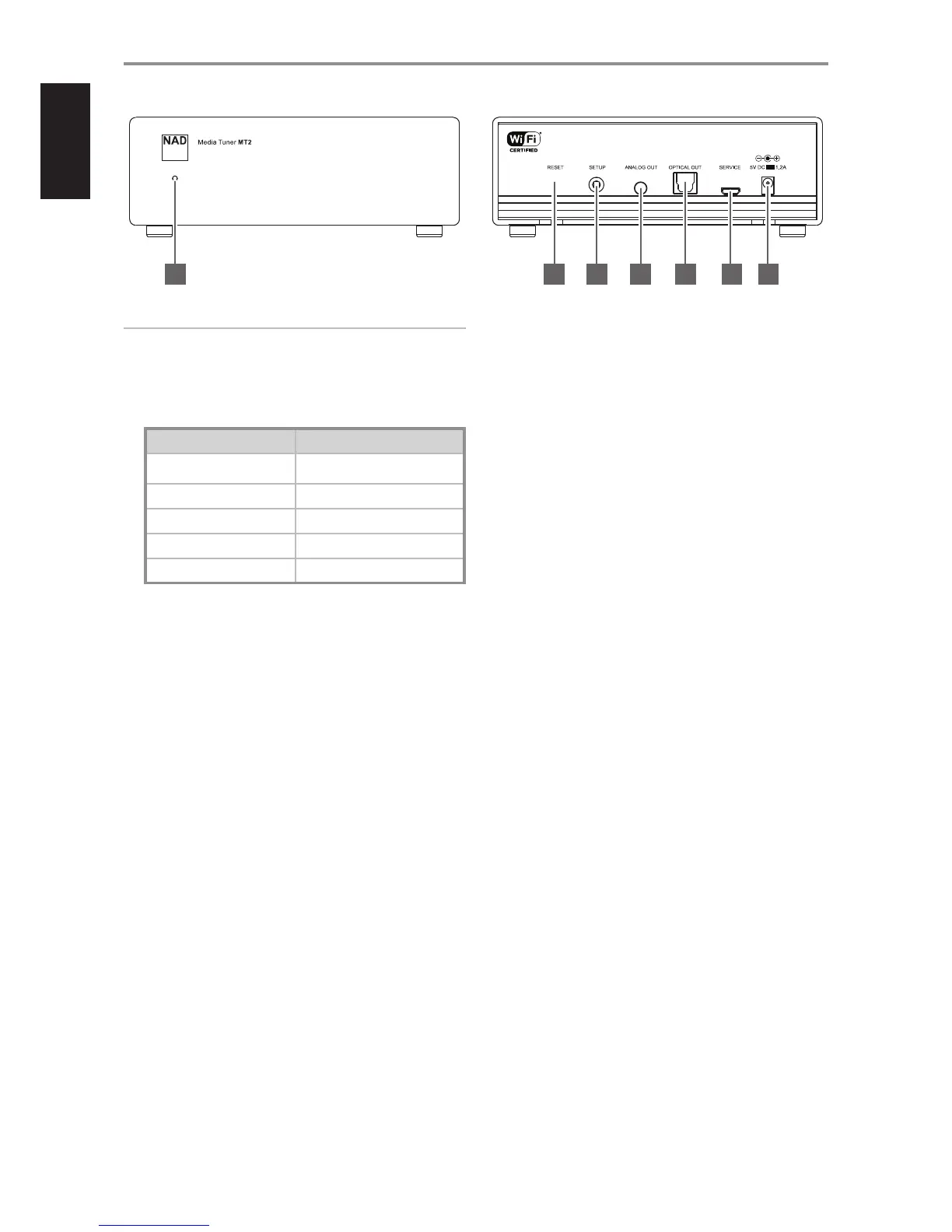

IDENTIFICATION OF CONTROLS
1 32 4 5 6 7
4
