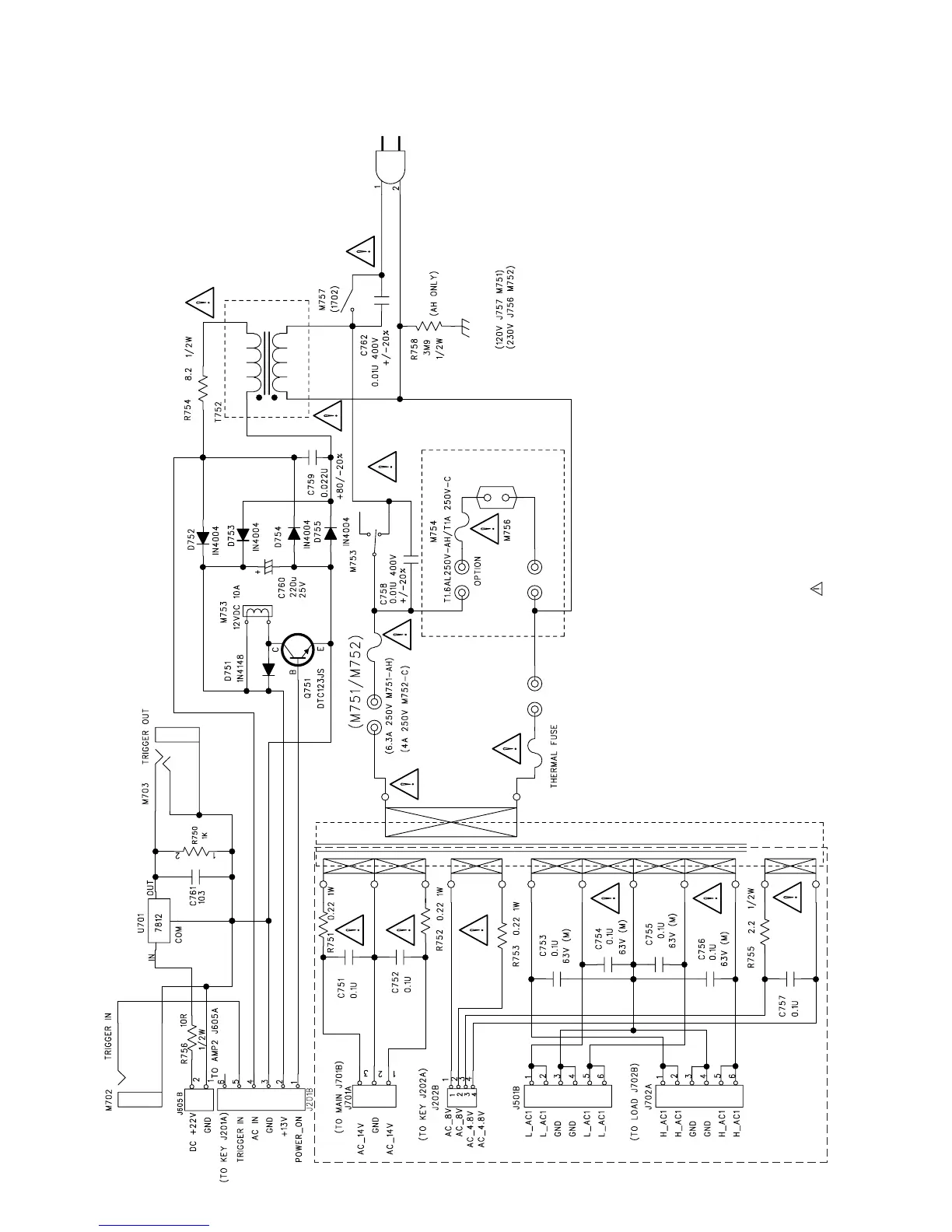

NAD T 761 - Standby & Secondary Schematic Diagram

42
(TO SurrAMP C834)
(TO FRONT AMP J501A)
(MF)
STANDBY & SECONDARY
NOTE: 1. RESISTORS ARE CARBON FILM 5% 1/8W UNLESS OTHERWISE SPECIFIED.
MF - METAL FILM
2. CERAMIC CAPACITORS ARE 50V 10%. UNLESS OTHERWISE SPECIFIED. 3. COMPONENTS MARKED “ ” ARE SAFETY CRITICAL PARTS.
