NAD T 762 - Multi-Ch; Pre-Out

37
Cutting line for folded page!
E C B
2SC2878
E B C
SS8050
SS8550
E C B
RN1241
DTC144ESA
DTC114ESA
DTA114ESA
DTA144ESA
E C B

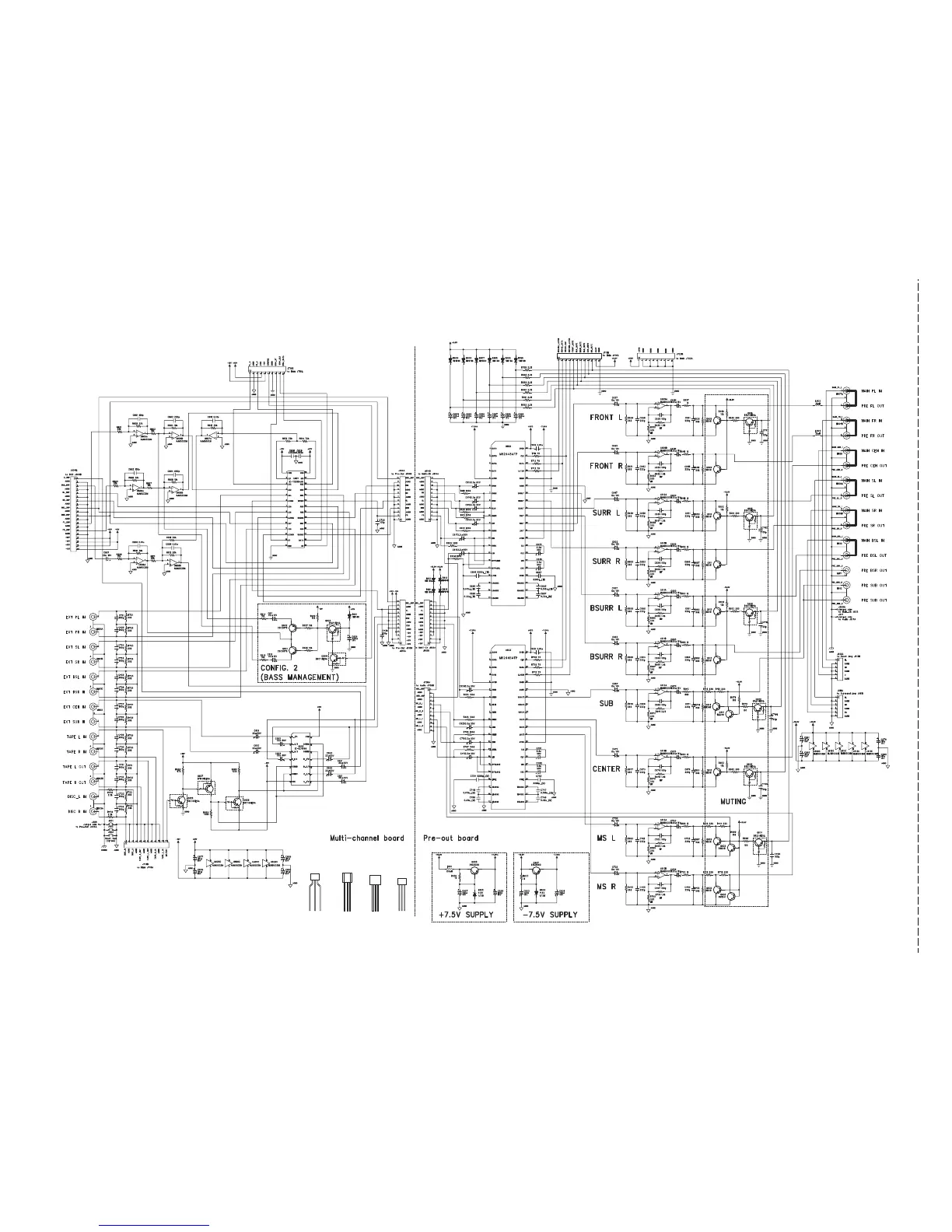

MULTI-CH / PRE-OUT
RESISTORS : UNLESS OTHERWISE SPECIFIED ARE CARBON FILM.
NOTE:
1. RESISTORS, UNLESS OTHERWISE SPECIFIED, ARE 1/6W, 5%.
2. ALL CERAMIC CAPACITORS, UNLESS OTHERWISE SPECIFIED, ARE 50V, 10%.
