NAPCO StarLink SLE User Manual

12 StarLink
™
SLE Commercial Series Alarm Communicators -- Installation Instructions
TELCO
T300
RJ31X

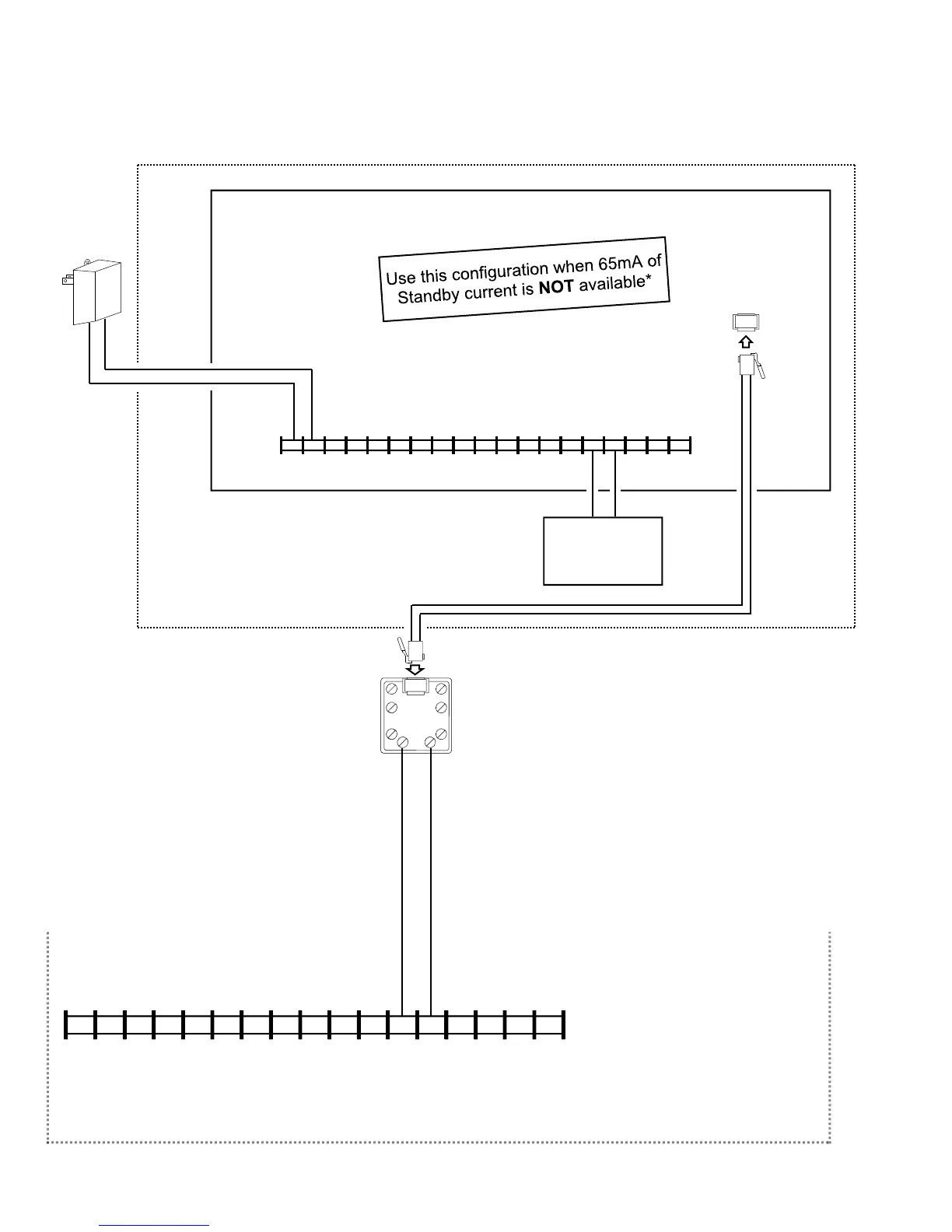

Wiring Diagram for PRIMARY Reporting Configuration
GEM-P801 Control Panel
(Use when telephone line is NOT available)
CONTROL PANEL PC BOARD
6 7
8 17 16 15 14 13 12 11 9 10 2
3 4 5
1
19 18
(CONTROL PANEL HOUSING)
~ ~
AUX POWER
(–) (+)
16VAC
*Refer to section "SUPPLYING POWER".
6 7 8 15 14 13 12 11 9 10 2* 3 4 5 1*
+12V
(–)
PGM1 PGM2 PGM3 IN1 IN2 GND IN3 RING TIP
17 16
RTS
(R)
PANEL
TX (B)
PANEL
RX (G)
CTS
Y
StarLink Radio Terminals
PANEL
RING (+)
PANEL
TIP (–)
(STARLINK RADIO HOUSING)
16VAC
Transformer
Optional: When Power Supply
SLE-ULPS-R is not used,
connect Panel Aux Power to
StarLink terminals 1 and 2
(observing polarity)
All connections are
power limited except
AC Mains, Telco and
battery terminals.
Terminals 14-17: No
connections permitted.
