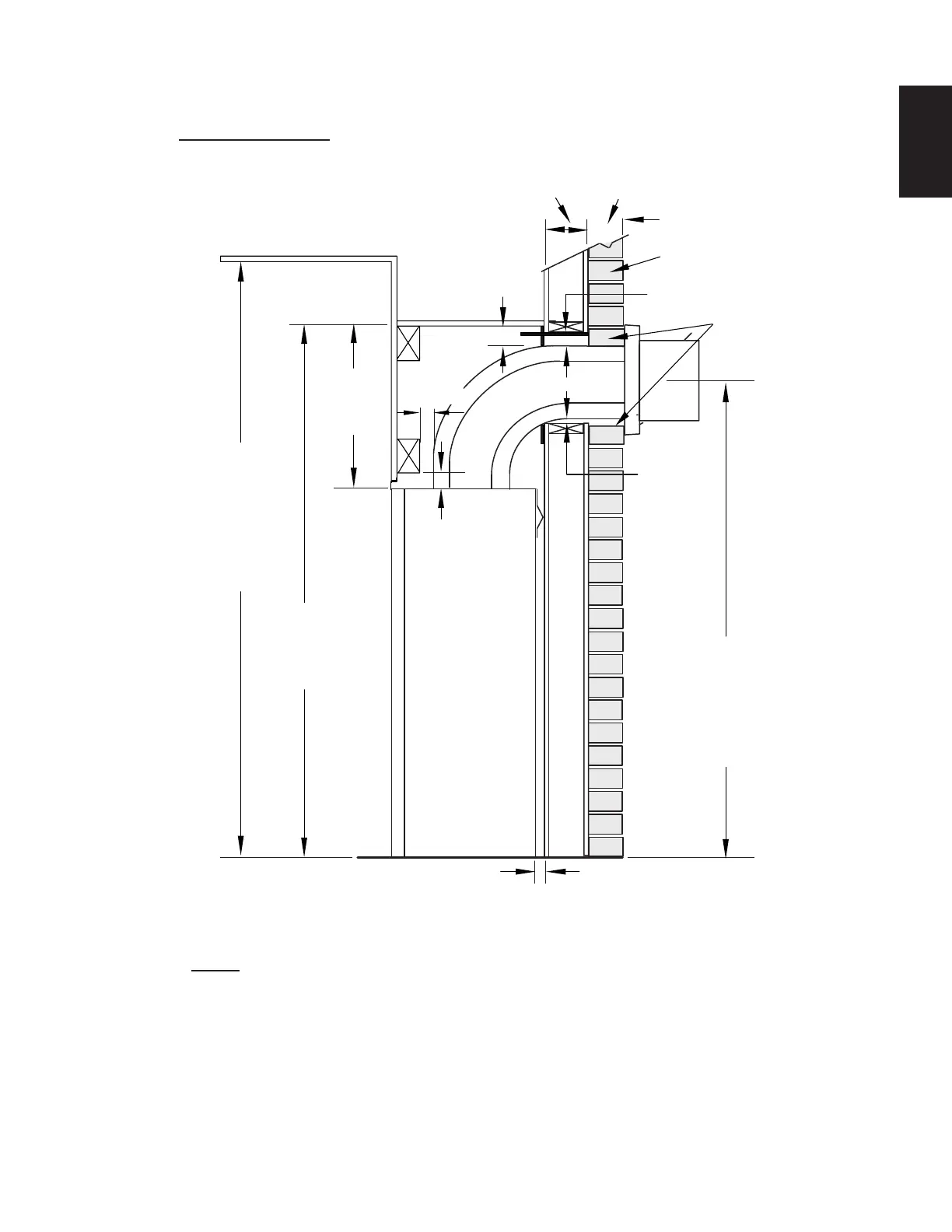

5.2 MINIMUM ENCLOSURE CLEARANCES
3" [76mm]
COMBUSTIBLE
NON-COMBUSTIBLE
BRICK
0” (0MM) IF
NON-COMBUSTIBLE
FINISHING IS USED
SUCH AS BRICK
AND STONE.
3" [76mm]
MINIMUM
3" [76mm]
2"
[51mm]
1"
[25mm]
50 1/2"
[1283mm]
54"
[1372mm]
CEILING
(MIN)
42 1/16"
[1068mm]
MINIMUM
PLUS RISE*
16 1/4"
[412mm]
1"
[25mm]
TOP EXIT ENCLOSURE
The appliance requires a minimum enclosure height of 50 1/2" (1282mm). For temperature
requirements, the enclosure space around and above the appliance must be left
unobstructed.
B36 TOP VENT
NOTE: The vent shield is telescopic and must be adjusted to shield the full depth of the
combustible wall penetration.
