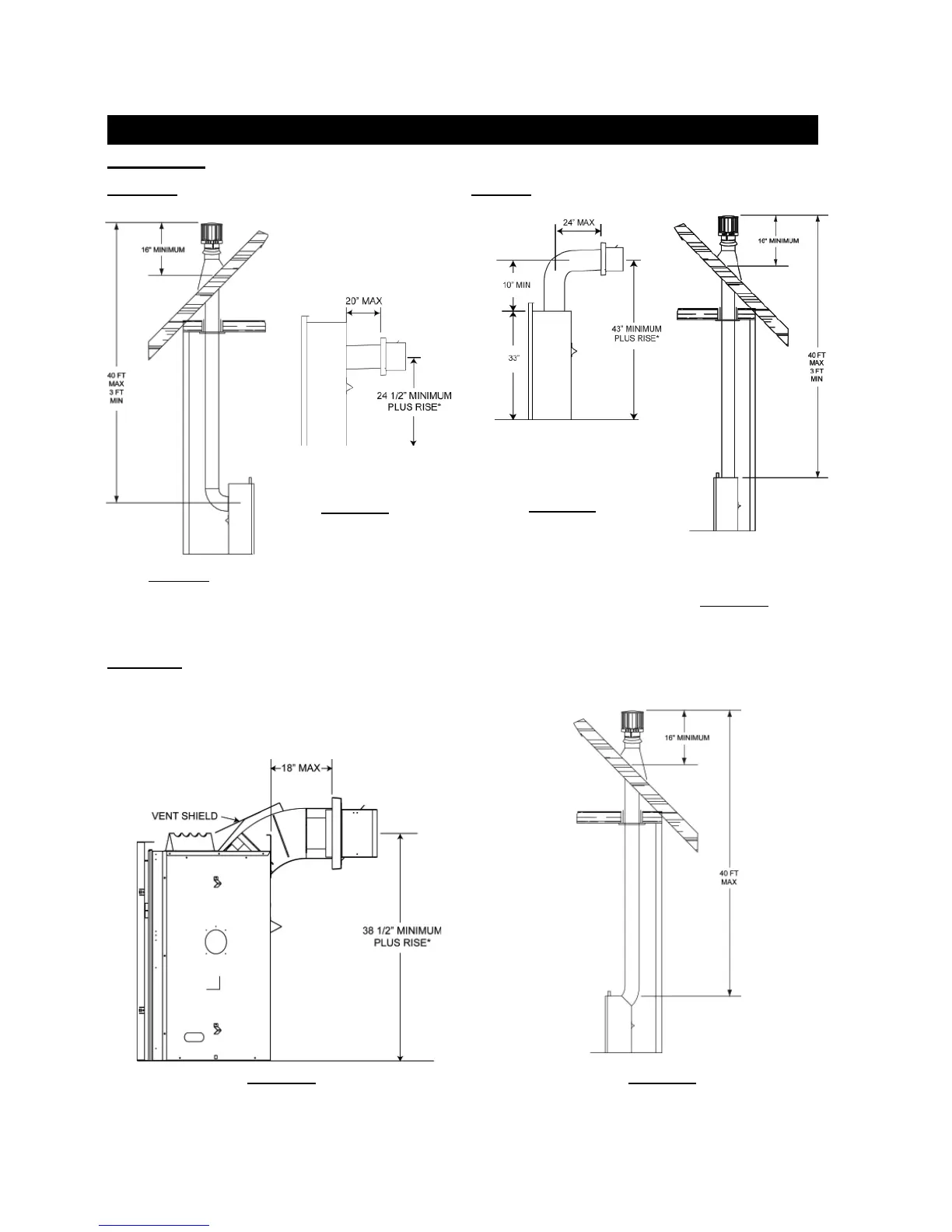

TYPICAL MINIMUM AND MAXIMUM VENT LENGTHS
For optimum performance, it is recommended that all horizontal runs
have a 1" rise per foot.
When terminating vertically, the vertical rise is a minimum 3 feet and
a maximum 40 feet from the centre of the fi replace fl ue outlet.
NOTE: When terminating vertically, the restrictor plate W500-0205 must be installed. Refer to
Restricting Vertical Vents.
REAR EXIT
TOP EXIT
BGD36CF(G)
BGD42CF
FIGURE 10
FIGURE 9
FIGURE 11
FIGURE 12
FIGURE 13
FIGURE 14
* See Venting Section
