Napoleon BGD36PTR - BGD36

40
W415-0773 / E / 03.13.12
BRICK
COMBUSTIBLE NON-COMBUSTIBLE
2”
1”
0” IF
NON-COMBUSTIBLE
FINISHING IS USED
SUCH AS BRICK
AND STONE.
24” MINIMUM
PLUS RISE*
2”
39”
6” MINIMUM
BRICK
COMBUSTIBLE NON-COMBUSTIBLE
2”
1”
0” IF
NON-COMBUSTIBLE
FINISHING IS USED
SUCH AS BRICK
AND STONE.
2”
42
3
/8” MINIMUM
PLUS RISE*
48
3
/8”
2” MINIMUM
16”
1
1
/2”

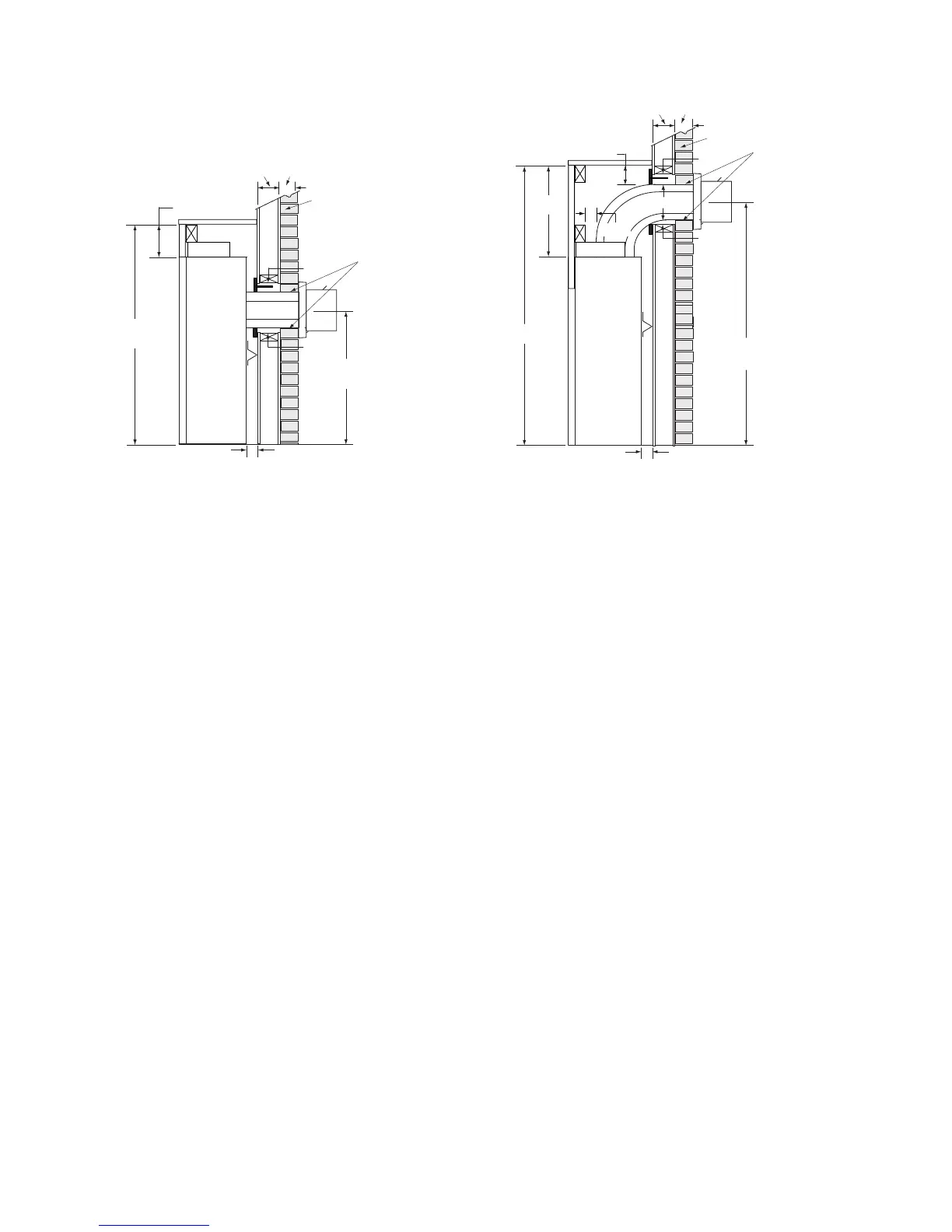

TOP EXIT ENCLOSURE
The appliance requires a minimum enclosure height
of 48 3/8". For temperature requirements, the
enclosure space around and above the appliance
must be left unobstructed.
REAR EXIT ENCLOSURE
The appliance requires a minimum enclosure height
of 39". For temperature requirements, the enclosure
space around and above the appliance must be left
unobstructed.
* See "VENTING" section.
6.3.2 BGD36
