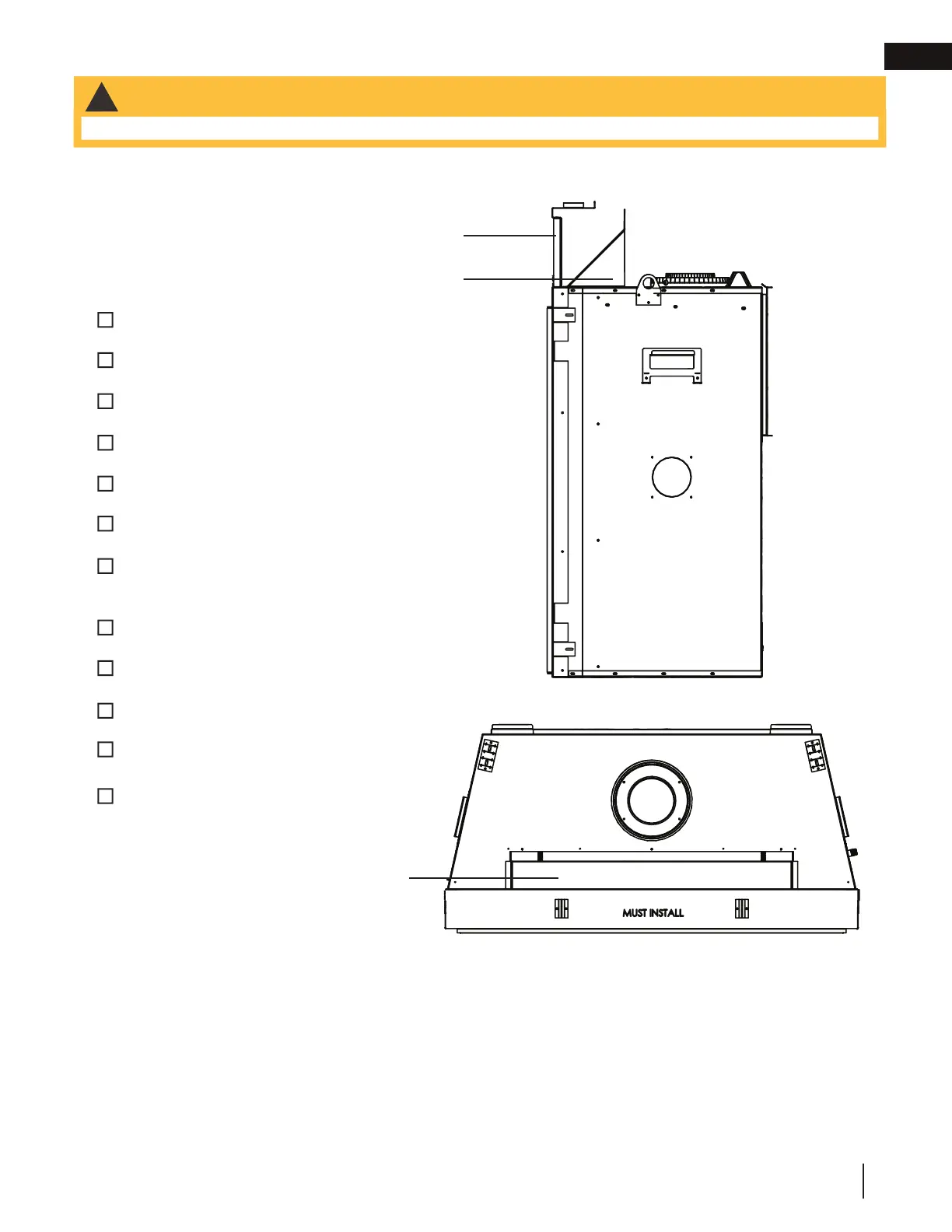

fi nish framing - after appliance installation
side view
Header shield installed
Housing cap removed
Insulation removed
Housing tray removed
Defl ector installed
High limit switch installed
Wire harness connected to high
limit switch and control board.
Safety Barrier installed
Framing
Clean all dust and debris
Finish the appliance
Installation of Dynamic Heat
Control™ recorded in owner’s
manual.
top view
!
WARNING
• Ensure knockout plates on the fi xed side are not removed or damaged.
12.0 Dynamic Heat Control™ installation checklist
header shield
defl ector
defl ector
