fi nish framing - after appliance installation
8.0 fi nish framing - after appliance installation
fl ush
There are various methods to ventilate the enclosure. Refer to “installation planning” section. Only two options
are illustrated - installation option 2 and installation option 5.
Ref EX36 EX42
I
39 3/4” 45 3/4”
C
22 1/4”
D
6”
H
43 3/4” 47 3/4”
L
72”
Q*
2” min and 3” max
(Q x R)*
112 sq. in.
minimum framing

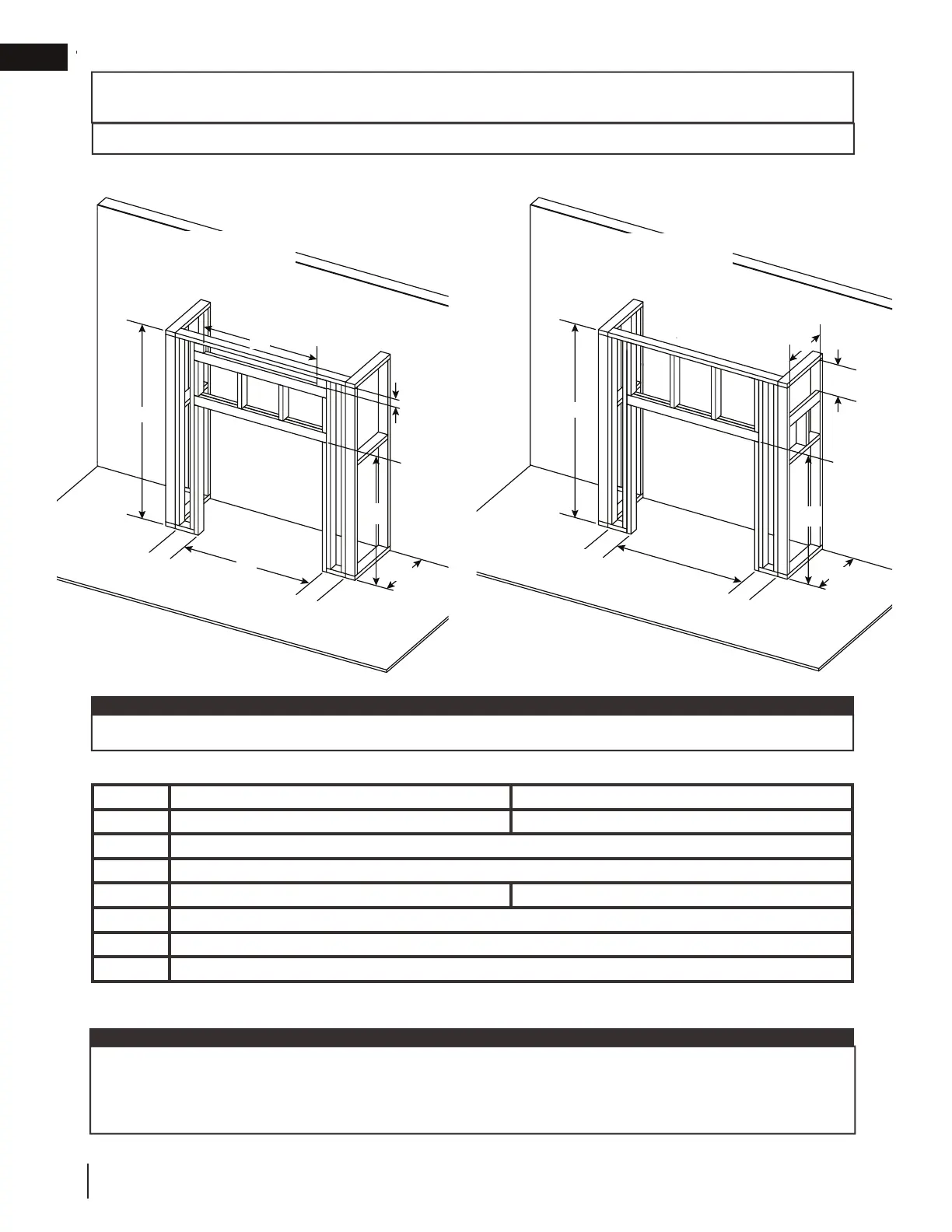

Installation Option 2 illustrated
Finish framing must be built after appliance has been placed in its fi nal position and venting connected.
note:
* ONLY APPLICABLE TO OPTION 2, 3 and 5 - Opening must be centered in enclosure on appliance. Dimensions represent
fi nished sizes and where applicable should be adjusted to include fi nish material thickness.
The appliance must be installed at this point of framing. Appliance is not shown to better illustrate framing.
note:
The Elevation series requires a minimum enclosure height (as illustrated) measured from the bottom of the ap-
pliance. For temperature requirements, this area must be left unobstructed. Some venting confi gurations that
require more vertical rise will require a larger enclosure to provide minimum vertical clearance between vent pipes
and combustibles.
L
D
D
I
C
H
Q
R
Dynamic Heat Control™
front air outlet opening
Dynamic Heat Control™
side air outlet opening
Installation Option 5 illustrated
D
D
L
H
C
R
Q
