W415-1365 / 10.21.14
12
EN

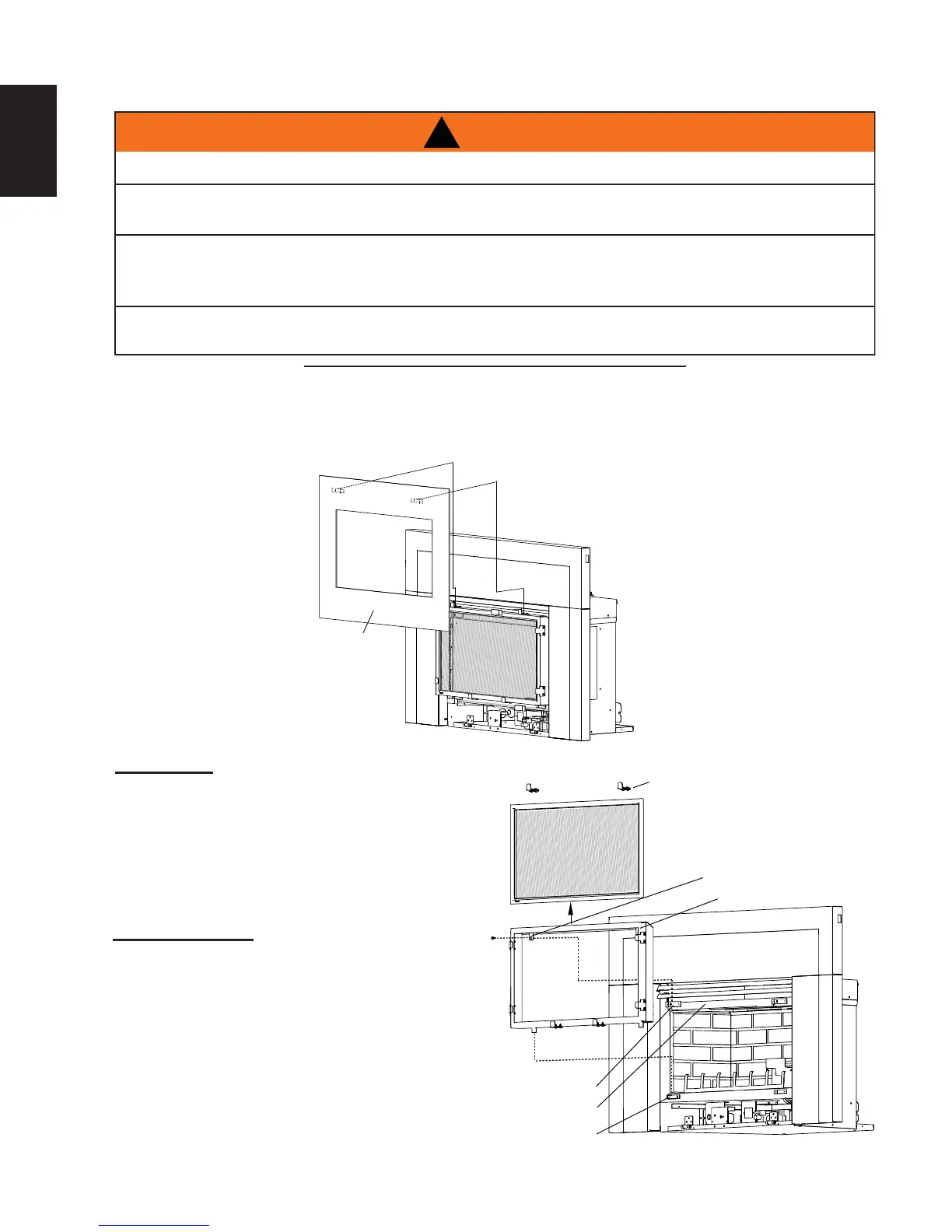

4.2 SAFETY SCREEN REMOVAL AND INSTALLATION
!
WARNING
GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED.
THE DOOR LATCHES ARE PART OF A SAFETY RELIEF SYSTEM AND MUST BE PROPERLY
ENGAGED. DO NOT OPERATE THE APPLIANCE WITH LATCHES DISENGAGED.
FACING AND/OR FINISHING MATERIALS MUST NOT INTERFERE WITH AIR FLOW THROUGH AIR
OPENINGS, LOUVRES OPENINGS, OPERATION OF LOUVRES OR DOORS OR ACCESS FOR
SERVICE. OBSERVE ALL CLEARANCES WHEN APPLYING COMBUSTIBLE MATERIALS.
BEFORE DOOR IS REMOVED TURN THE APPLIANCE OFF AND WAIT UNTIL APPLIANCE IS COOL TO
THE TOUCH. DOORS ARE HEAVY AND FRAGILE SO HANDLE WITH CARE.
75.1
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the
appliance and shall be installed.
Before the glass door can be removed, the faceplate and safety screen must be removed. Lift the faceplate up
up and off the appliance door and remove from the appliance.
FLASHING
SAFETY SCREEN
TOP CLIPS
BOTTOM BRACKETS
SAFETY SCREEN FRAME
TOP BRACKETS
DOOR FRAME
TOP BRACKETS
A.
B.
C.
D.
A. Remove the top clips and set aside.
B. Remove the safety screen from the safety
screen frame by sliding it up and out.
C. Remove the two screws from the top
brackets of the safety screen frame.
D. Lift the safety screen frame up and away
from door frame.
REMOVAL:
INSTALLATION:
E. Install the safety screen frame into the
bottom brackets of the door frame and
secure the top brackets with the 2 screws
into the top brackets of the door frame.
F. Slide the safety screen into the safety
screen frame.
G. Install the top clips.
H. Ensure the safety screen is installed
correctly before using the appliance.
