4.5 LOG PLACEMENT
!
WARNING
FAILURE TO POSITION THE LOGS IN ACCORDANCE WITH THESE DIAGRAMS OR FAILURE TO USE
ONLY LOGS SPECIFICALLY APPROVED WITH THIS APPLIANCE MAY RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
LOGS MUST BE PLACED IN THEIR EXACT LOCATION IN THE APPLIANCE. DO NOT MODIFY THE
PROPER LOG POSITIONS, SINCE APPLIANCE MAY NOT FUNCTION PROPERLY AND DELAYED
IGNITION MAY OCCUR.
THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE.
76.1A
PHAZER
TM
logs and glowing embers exclusive to Napoleon, provide a unique and realistic glowing effect that is
different in every installation. Take the time to carefully position the glowing embers for a maximum glowing effect.
Log colours may vary. During the initial use of the appliance, the colours will become more uniform as colour
pigments burn in during the heat activated curing process.

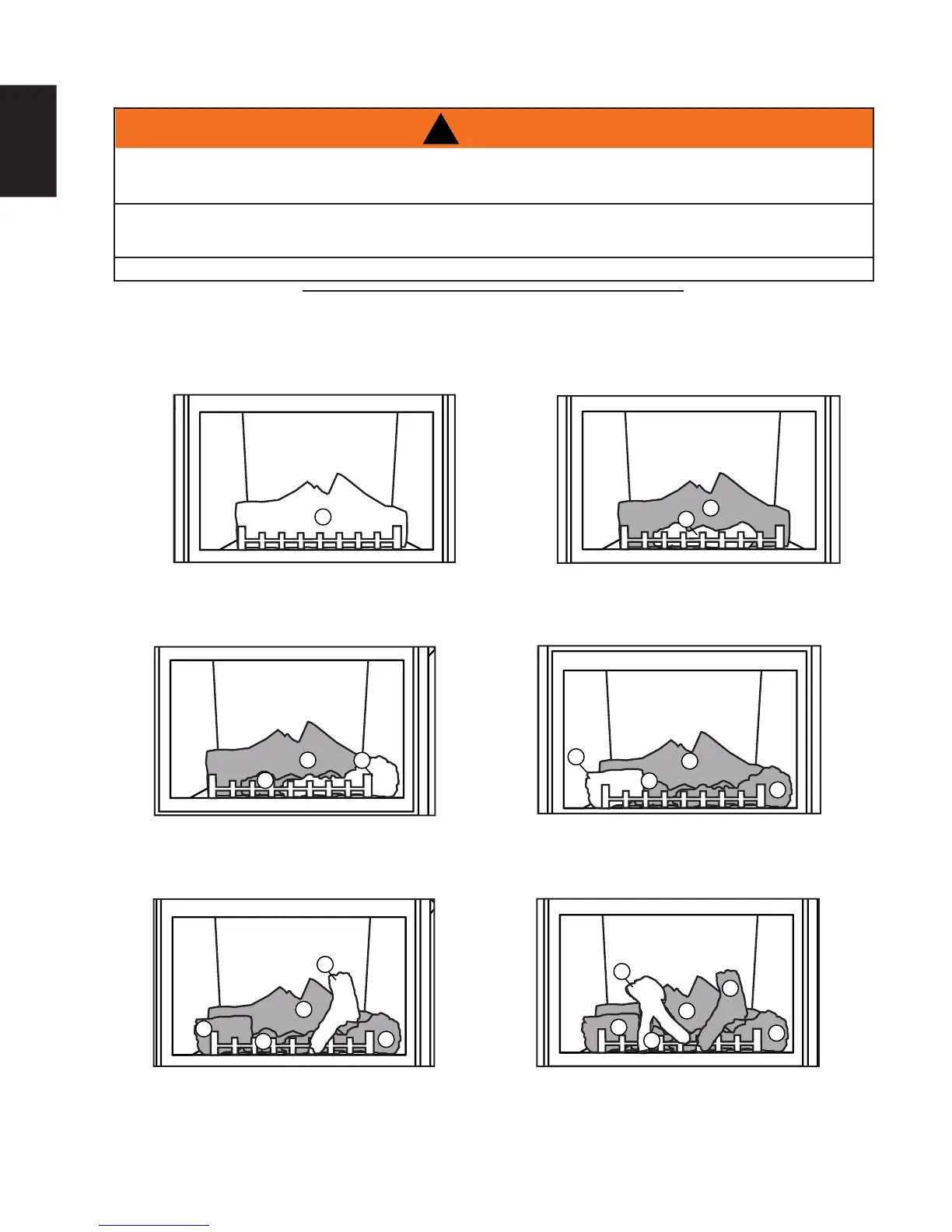

A. Place the rear log so that it rests against the
two log brackets on the back wall of the fi rebox.
The air space between the log and fi rebox back
is used to facilitate combustion air fl ow.
B. Move the charcoal strip into position lining
up the holes in the bottom with the studs
located on the burner on the burner. Ensure
strip sits fl at on the burner.
B
A
A
E. Line up the square hole in the right crossover
with the square post located on the right side
of log and install as shown.
F. Line up the rectangular hole in the left cross-
over with the rectangular post located on the
left side of log and install as shown.
B
A
C
D
E
B
A
C
D
E
F
C. Position the front right log just behind the
grate lining up the holes in the bottom with
the studs located on the log support.
D. Move the left log into position lining up the
hole in the bottom with the stud on the left
side of the log support.
B
A
C
B
A
C
D
