W415-1365 / 10.21.14
16
EN

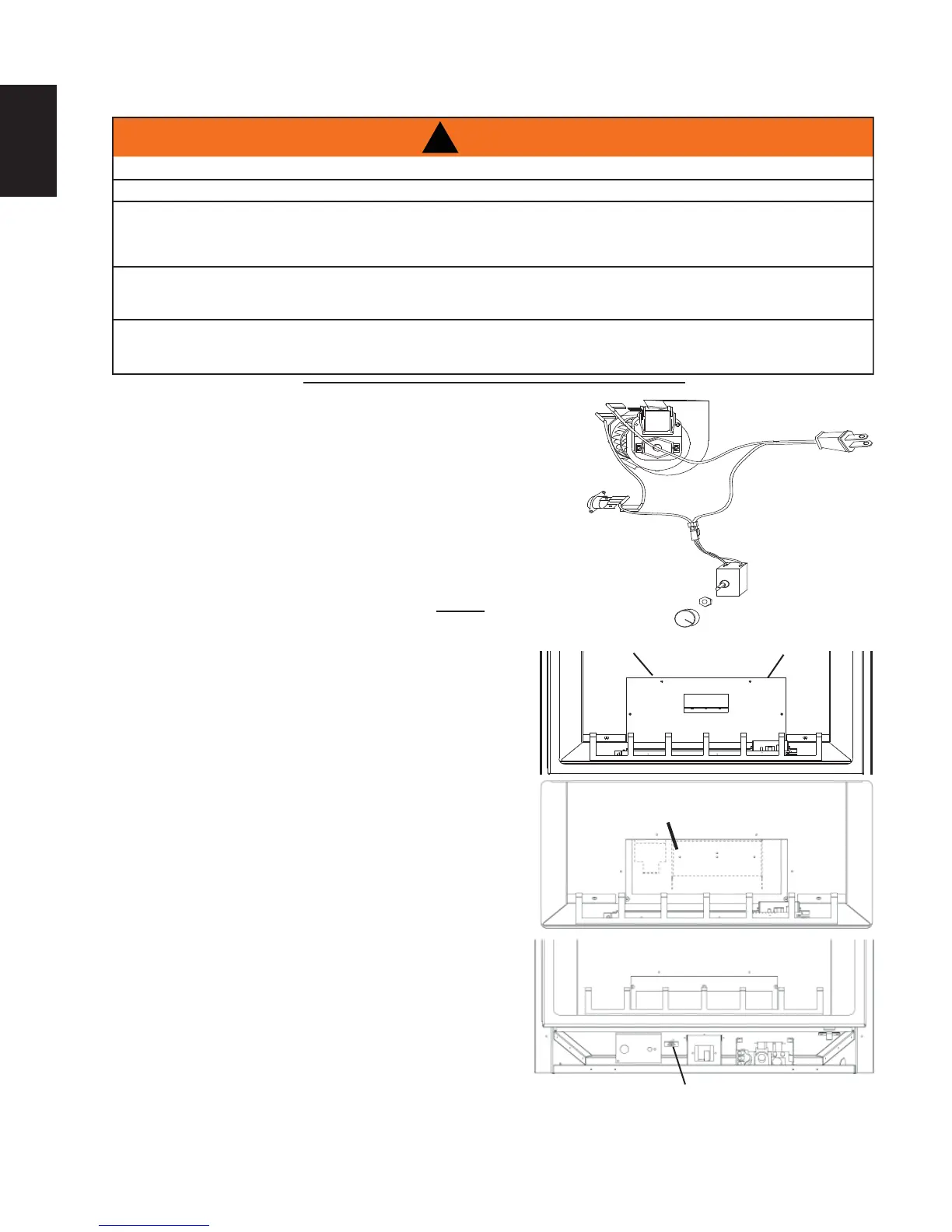

5.0 BLOWER REPLACEMENT
black
white
red
SPEED
CONTROL
SWITCH
BLOWER
THERMAL
SWITCH
FRONT BLOWER ACCESS COVER
THERMAL SWITCH / BRACKET
ASSEMBLY
REAR BLOWER ACCESS COVER
A. Turn off the electrical power and the gas supply to the
appliance.
B. Open the glass door and remove the logs and fi bre bricks, if
installed.
C. Remove the front blower access cover held on with 4
screws.
D. Remove the rear blower access cover. NOTE: Check the
blower gasket for damage. Replace if damaged.
E. Disconnect the two blower wires. Remove the blower
from the mounting plate and replace. For thermal
switch replacement: Remove the mounting bracket
secured to the underside of the burner base. Remove
the thermal switch from the bracket and replace.
F. Reconnect the two wires. Re-install the blower
gasket. Reattach the blower mounting plate and
blower access covers. Replace the logs. Close the
fi re viewing door.
G. Turn the gas supply and electricity back on. Because
the blower is thermally activated, when turned
on, it will automatically start approximately 5-15
minutes after lighting the appliance and will
run for approximately 30-45 minutes after the
appliance has been turned off. Use of the fan
increases the output of heat.
Drywall dust will penetrate into the blower
bearings causing irreparable damage and
must be prevented from coming into contact
with the blower or its compartment. Any
damage resulting from this condition is not
covered by the warranty policy.
!
WARNING
RISK OF FIRE AND ELECTRICAL SHOCK.
TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THIS APPLIANCE.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH
THIS APPLIANCE. USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS
COMPONENTS, VENTING COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL
VOID THE WARRANTY AND CERTIFICATION.
ENSURE THAT THE FAN’S POWER CORD IS NOT IN CONTACT WITH ANY SURFACE OF THE
APPLIANCE TO PREVENT ELECTRICAL SHOCK OR FIRE DAMAGE. DO NOT RUN THE POWER
CORD BENEATH THE APPLIANCE.
THE WIRE HARNESS PROVIDED IN THE BLOWER KIT IS A UNIVERSAL HARNESS. WHEN
INSTALLED, ENSURE THAT ANY EXCESS WIRE IS CONTAINED, PREVENTING IT FROM MAKING
CONTACT WITH MOVING OR HOT OBJECTS.
51.5
