W415-1365 / 10.21.14
9
EN
While the liners must be continuous from the appliance to the chimney cap, to
achieve the needed length, they may be coupled, using an approved coupler.
We recommend that exhaust vents that pass through unheated spaces,
such as tall exterior chimneys, be wrapped in a protective sleeve to minimize
condensation and reverse fl ow symptoms. See Trouble Shooting for details.
This appliance is approved for use with a 2" (51mm) liner for air intake
and a 3" (76mm) liner for exhaust. For best performance, however, it is
recommended to use two 3" (76mm) liners.
If a 2" (51mm) liner is used for the intake, it may be necessary to adjust
the primary air shutter.

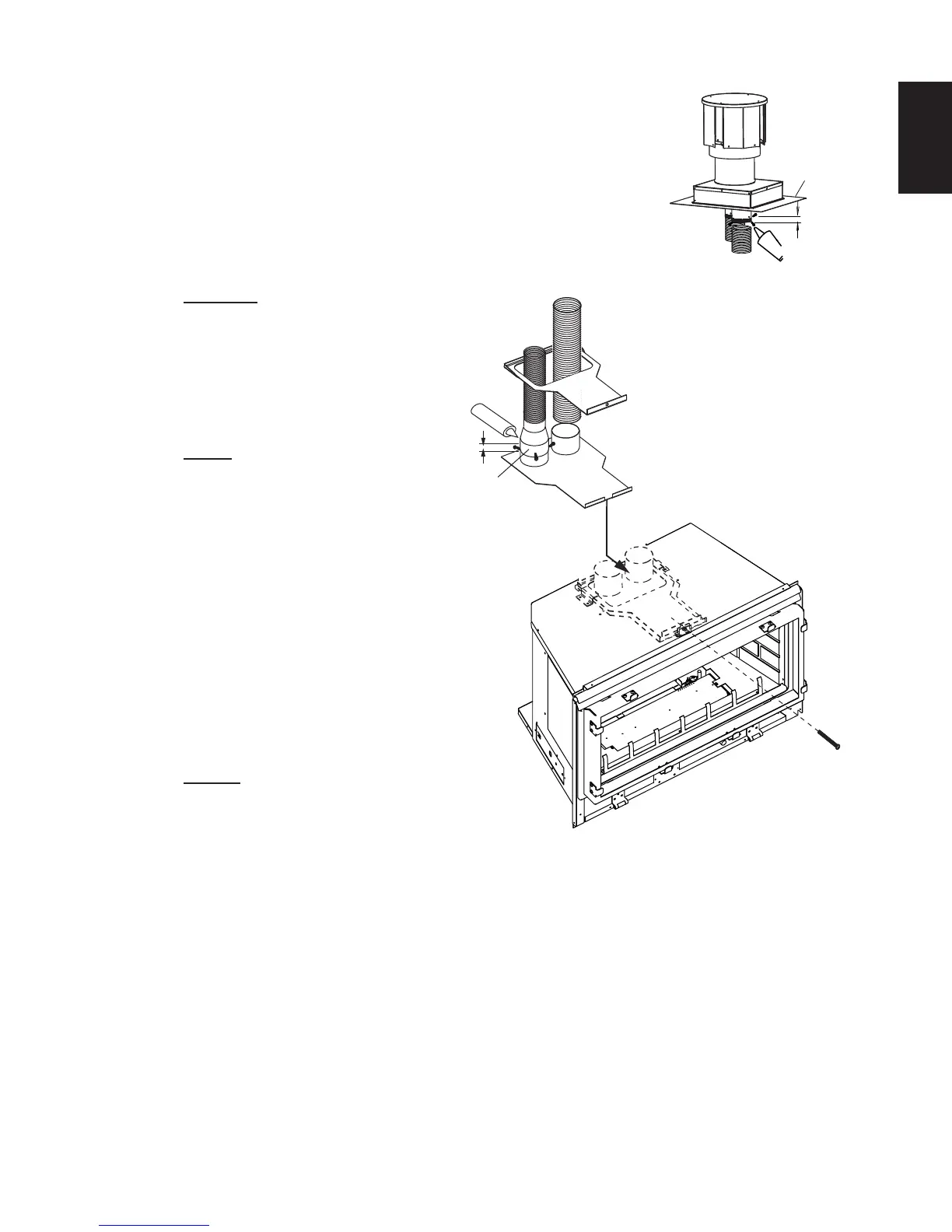

A. OUTSIDE: Slip the one end
of a liner a minimum of 2"
(51mm)
over the sleeve of the
air terminal. Secure using 3
screws. Then seal the joint and
screw heads with W573-0007
Mill-Pac (not supplied). Repeat
with the other liner.
NOTE: We recommend that
the other end of the exhaust
liner be marked to eliminate
the exhaust liner being
connected to the intake
collar at the appliance.
B. Gently stretch the liners to the
required lengths and insert
into the chimney. Trim and fi t
the fl ashing plate to suit the
chimney termination. Place
the air terminal onto the top
of the chimney. Make weather
tight by sealing with caulking
(not supplied). Fasten to the
chimney with screws and plugs
(not supplied).
C. INSIDE: Remove the securing
screw from the front of the vent
mounting plate. Pull the vent
mounting plate only, back into
the track, to the front stop. Start the slider back into position. Re-secure the screw. The appliance may
now be pushed into its fi nal position inside the wood burning appliance, and the screw tightened until
the slider has been pulled tight to the front stop.
D. Route the fl ex liners through the slider. Attach and secure the liners to the vent mounting plate using
the same procedure as before, ensuring that the marked exhaust liner is attached to the exhaust collar.
FLASHING
PLATE
2” (50.8mm)
OVERLAP
MILL-PAC
INTAKE
EXHAUST
MOUNTING
PLATE
SECURING
SCREW
INTAKE
EXHAUST
2" (50.8mm)
OVERLAP
MILL-PAC
2" (50.8mm)
LINER
3" (76.2mm)
LINER
SLIDER
REDUCER
CONNECTION
ILLUSTRATED WITH A 2"
(50.8mm) INTAKE LINER.
