ELT-400 5 Operation and use
5-13
Possible faults:
The overload display appears

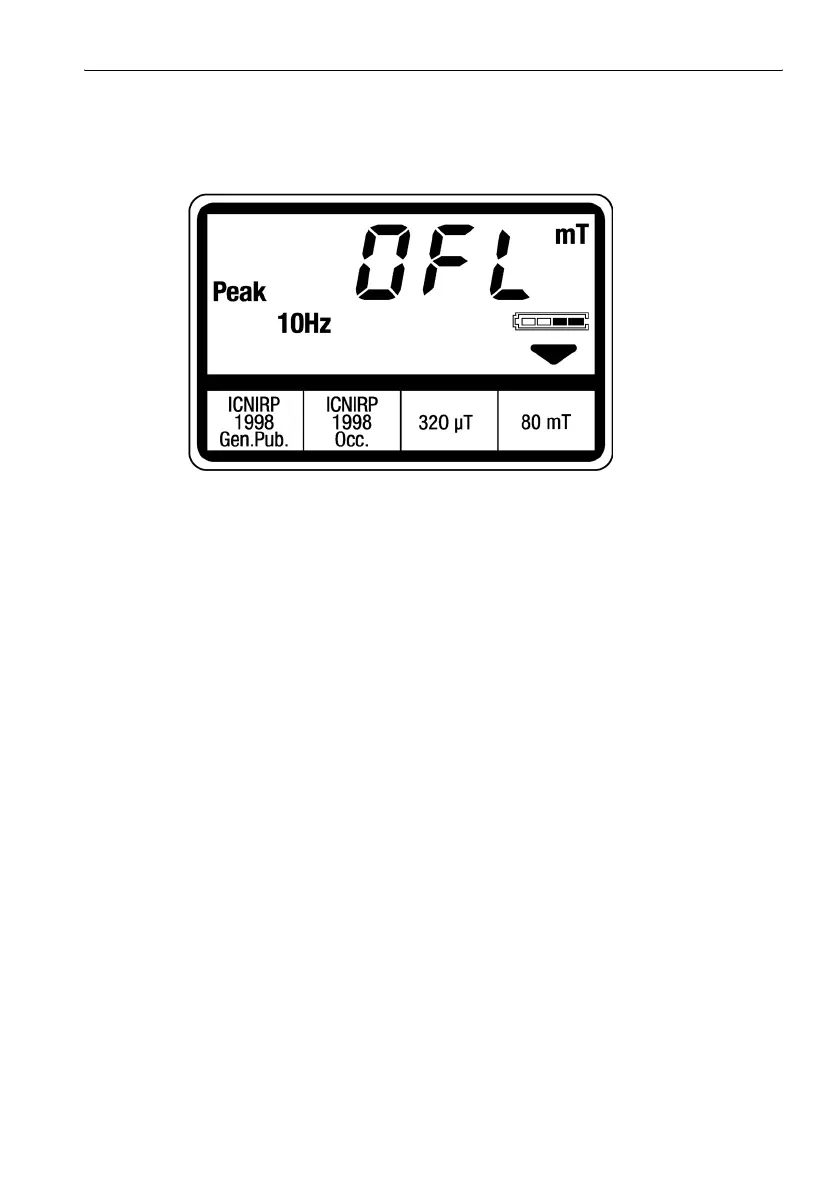

Fig. 5-6 Overload display
The selected measurement range is unsuitable for the measurement task.
1. Select HIGH range.
2. If the overload display is still shown, increase the distance of the ELT-400
from the field source.
ª Selecting the measurement range (RANGE): see page 5-10
– or –
3. Deactivate the MAX HOLD function if it is activated.
MAX HOLD cannot be reactivated until the overload display has cleared.
ª Activating the MAX HOLD display function: see page 5-11
ª Overload monitoring: see page C-6
