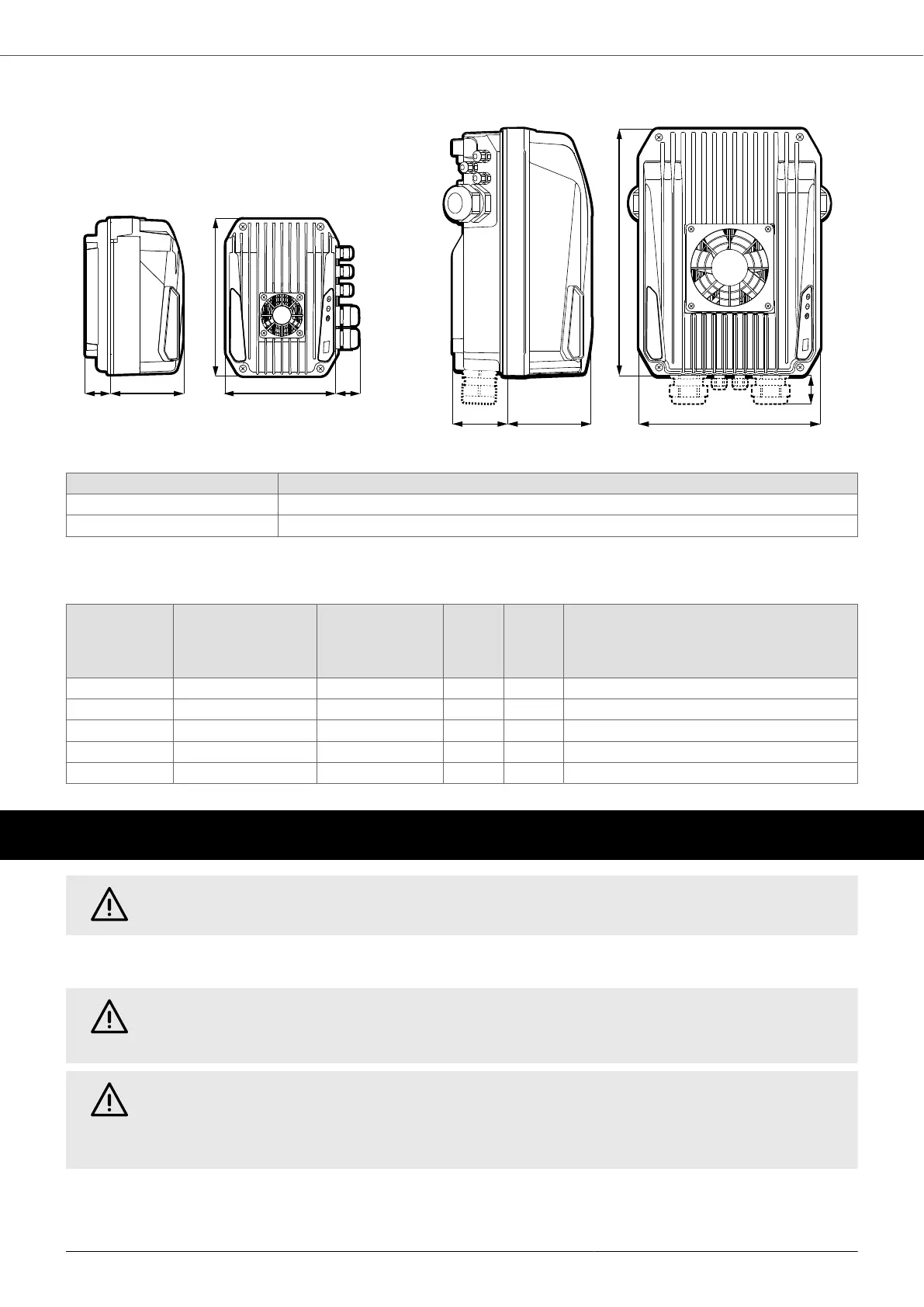

5.3. Dimensions and weight
39
248
337 mm
97 mm33
211 mm
150 27
76
114 mm
Size Maximum weight [kg]
1 2,5
2 10
5.4. Cables entry
Cable gland Tightening torque
[Nm]
Cable diameter
[mm]
Size
1
Size
2
Size
2
MIDA 338 , MIDA 344 ,MIDA 438 , MIDA 444
M12 1,5 3,5-7 3 6 6
M16 3 5-10 - 2 2
M20 6 7-13 2 - -
M25 8 10-17 - 2 -
M40 13 19 -28 - - 2
6. Mechanical installation
WARNING
Read the safety chapter carefully before continuing.
6.1. Installation environment
WARNING
The environmental specifications stated in the technical data of the product must be strictly complied
with.
WARNING
Do not install the device in environments at a risk of explosion, flooding, or in the presence of
flammable fluids or solids. Ensure sufficient ventilation in the room.
Refer to local regulations when selecting the appropriate installation location.
MIDA
13
