DANGER
Be careful not to damage or remove the four metal pins, as this will not only compromise the
mechanical coupling between the base and the power, but also the ground connection.

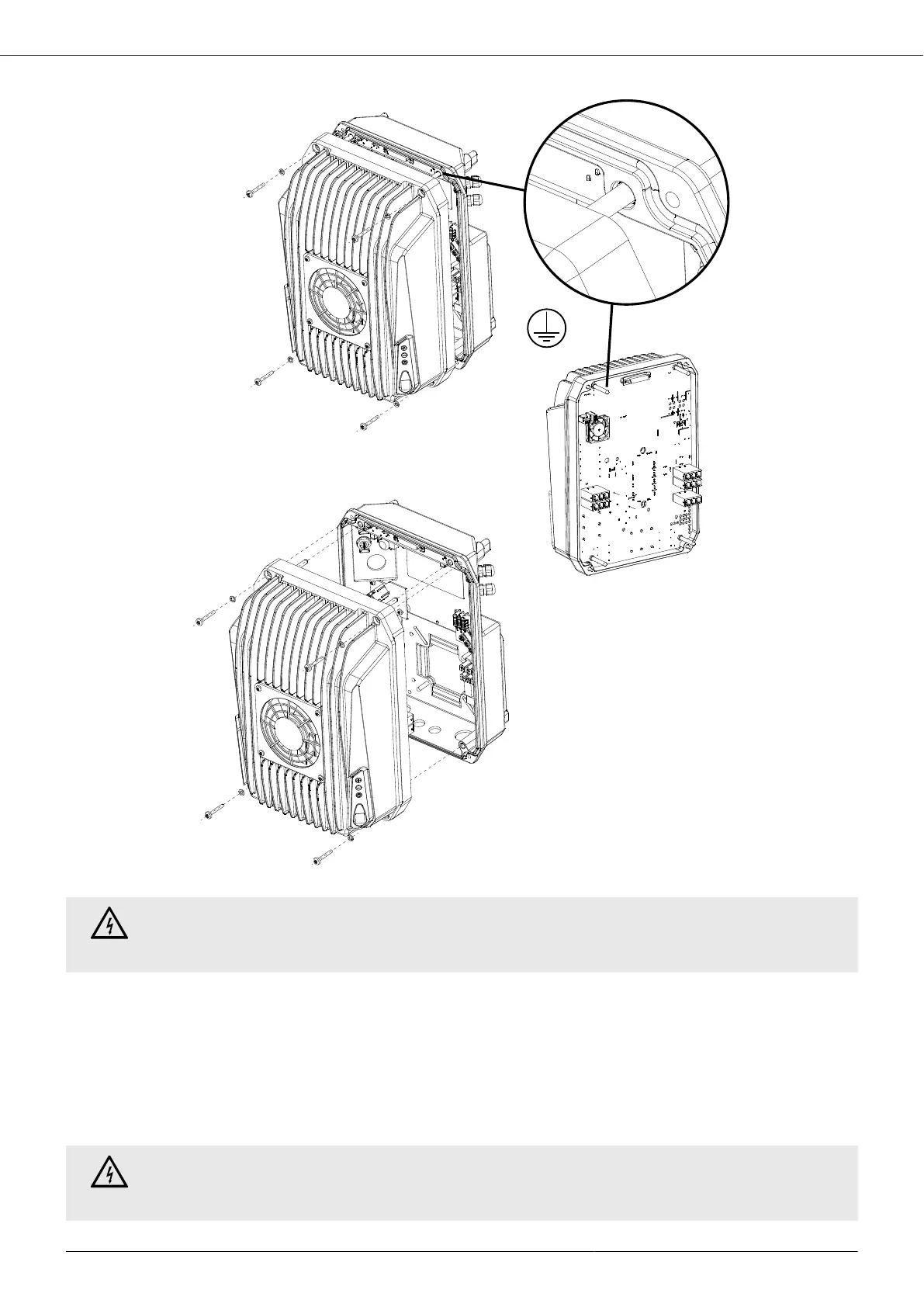

6.4. Assembly on-board the motor
The device may be installed in place of the motor terminal box cover both horizontally and vertically. It is necessary
to check with the motor manufacturer whether the base of the device can be fastened to the motor casing.
The seal on the base of the device provides protection against the ingress of water and dust. Drill the seal only
in the area where the four holes for fastening to the motor casing are. It is possible to use the same screws
and washers with which the terminal box cover was fastened to the motor casing. Please refer to the following
instructions when fastening the device to the motor.
DANGER
At the end of the installation, check the ground continuity between the base of the device and the
motor casing.
