Mechanical specifications:

Protection rating IP55 (NEMA 4)

WARNING

Protect the device from direct exposure to weather and sunlight.

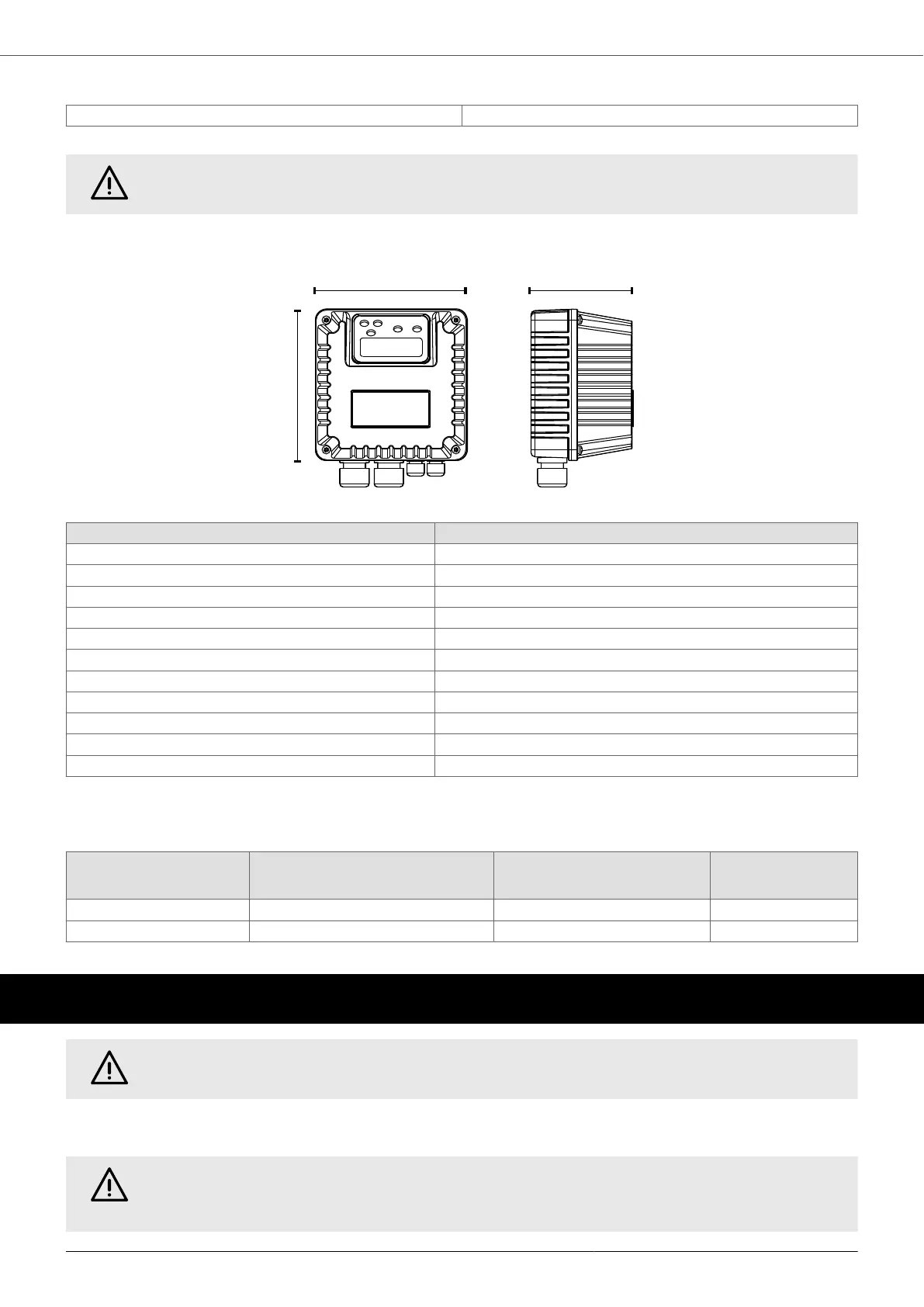

5.2. Dimensions and weight

180 mm

120 mm

Model Maximum weight [kg]

PILOT 112 1x230V 2

PILOT 118 1x230V 2

PILOT 312 3x230V 2,2

PILOT 325 3x230V 2,4

PILOT 330 3x230V 2,4

PILOT 312 3x400V 2,2

PILOT 325 3x400V 2,4

PILOT 330 3x400V 2,4

PILOT 312 3x460V 2,2

PILOT 325 3x460V 2,4

PILOT 330 3x460V 2,4

5.3. Cables entry

Cable gland Tightening torque

[Nm]

Cable diameter

[mm]

Quantity

PG9 3 5-8 2

PG21 8 13-18 2

6. Mechanical installation

WARNING

Read the safety chapter carefully before continuing.

6.1. Installation environment

WARNING

The environmental specifications stated in the technical data of the product must be strictly complied

with.

PILOT
