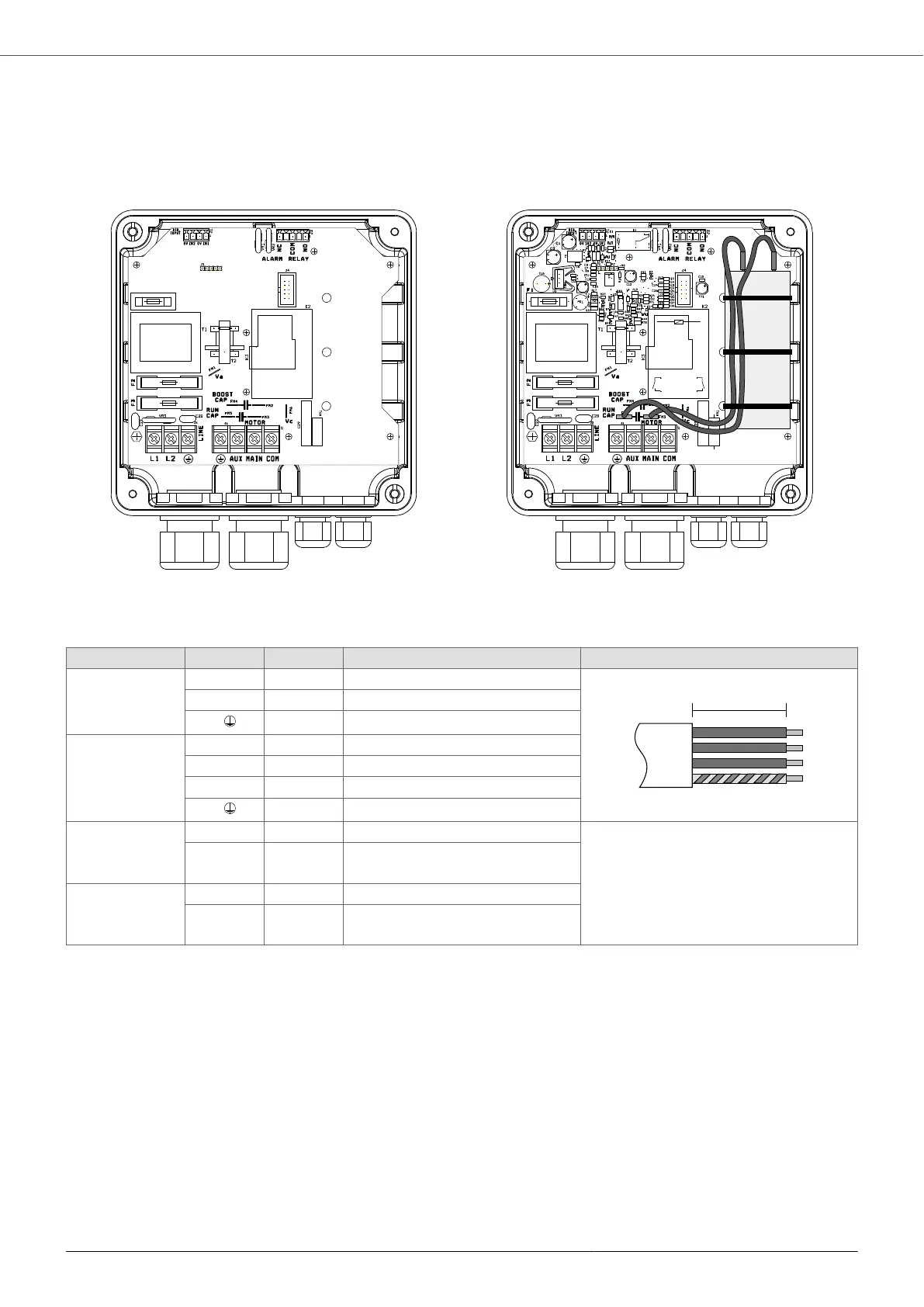

7.4.1. Power connections
PILOT 112 1x230V , PILOT 118 1x230V
A [mm] Pre-insulated cable lug Stripping diagram
Power Supply
LINE
L1 50 Fork for M4 screw
A
L2 50 Fork for M4 screw
P.E.
50 Fork for M4 screw
Motor
MOTOR
AUX 50 Fork for M4 screw
MAIN 50 Fork for M4 screw
COM 50 Fork for M4 screw
P.E.
50 Fork for M4 screw
Running capaci-
tor
RUN CAP
FM3 - 6.3 x 0.8 mm female Faston
-
FM5 - 6.3 x 0.8 mm female Faston
Starting capaci-
tor
BOOST CAP
FM2 - 6.3 x 0.8 mm female Faston
FM4 - 6.3 x 0.8 mm female Faston
PILOT
