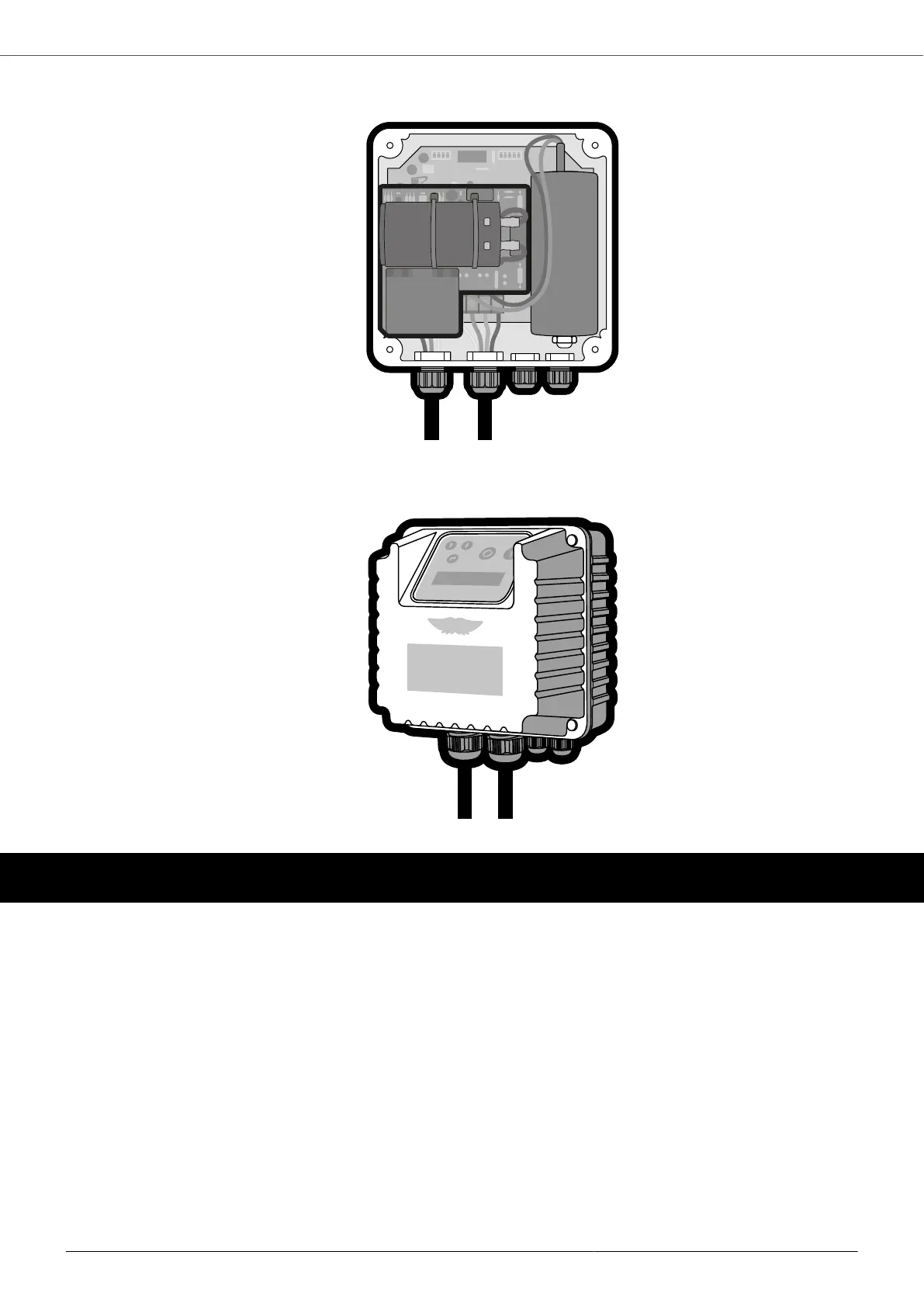

6. Check the correct and safe positioning of board AVIATOR on board PILOT.
7. Close the cover.
8. Commissioning
8.1. Preliminary checks
Before supplying power to the device, carry out the following electrical and mechanical checks:
• Check that the device complies with the motor control according to its data plate.
• Verify proper grounding of the device, of the load, and of the entire system.
• Check the correct connection of the power supply cable and the motor cable, paying particular attention to any
connection reversal.
• Check the correct connection of the power and signal cables, paying particular attention to any polarity.
• Check that the connection terminals of the power and signal cables are correctly tightened.
• Check the implementation of electromagnetic compatibility (EMC) regulations and the correct connection of cable
shields.
• Check that the protective devices are present and correctly installed.
• Check that the mechanical installation is correct, sturdy and complies with environmental and cooling require-
ments.
• Check that the seals are intact and correctly positioned in their seats.
PILOT
20
