WARNING
Do not install the device in environments at a risk of explosion, flooding, or in the presence of
flammable fluids or solids. Ensure sufficient ventilation in the room.
Refer to local regulations when selecting the appropriate installation location.
WARNING
The degree of protection of the device is only ensured if, at the end of the installation, the cover
screws and the cable glands have been properly tightened. Close the holes of unused cable glands
with the appropriate plugs.
Protect the device from direct exposure to weather and sunlight.
Do not leave the device installed without cover or with the cable glands open, even if not connected
to the power supply. The infiltration of dust, water or humidity may irreparably damage the device.
6.2. Cooling
The device is cooled by natural ventilation of the air through its surfaces.
It is therefore necessary to ensure sufficient space around the device during installation.
• 150 mm for current intensity up to 18 A
• 200 mm for current intensity up to 30 A
During operation, the surfaces of the device can become hot enough to cause burns. Do not touch them.
In the case of installation inside electric cabinet, it is necessary to guarantee the appropriate air flow for the heat
dissipation of all the components. The heat released by the device may be calculated from its conversion efficiency.

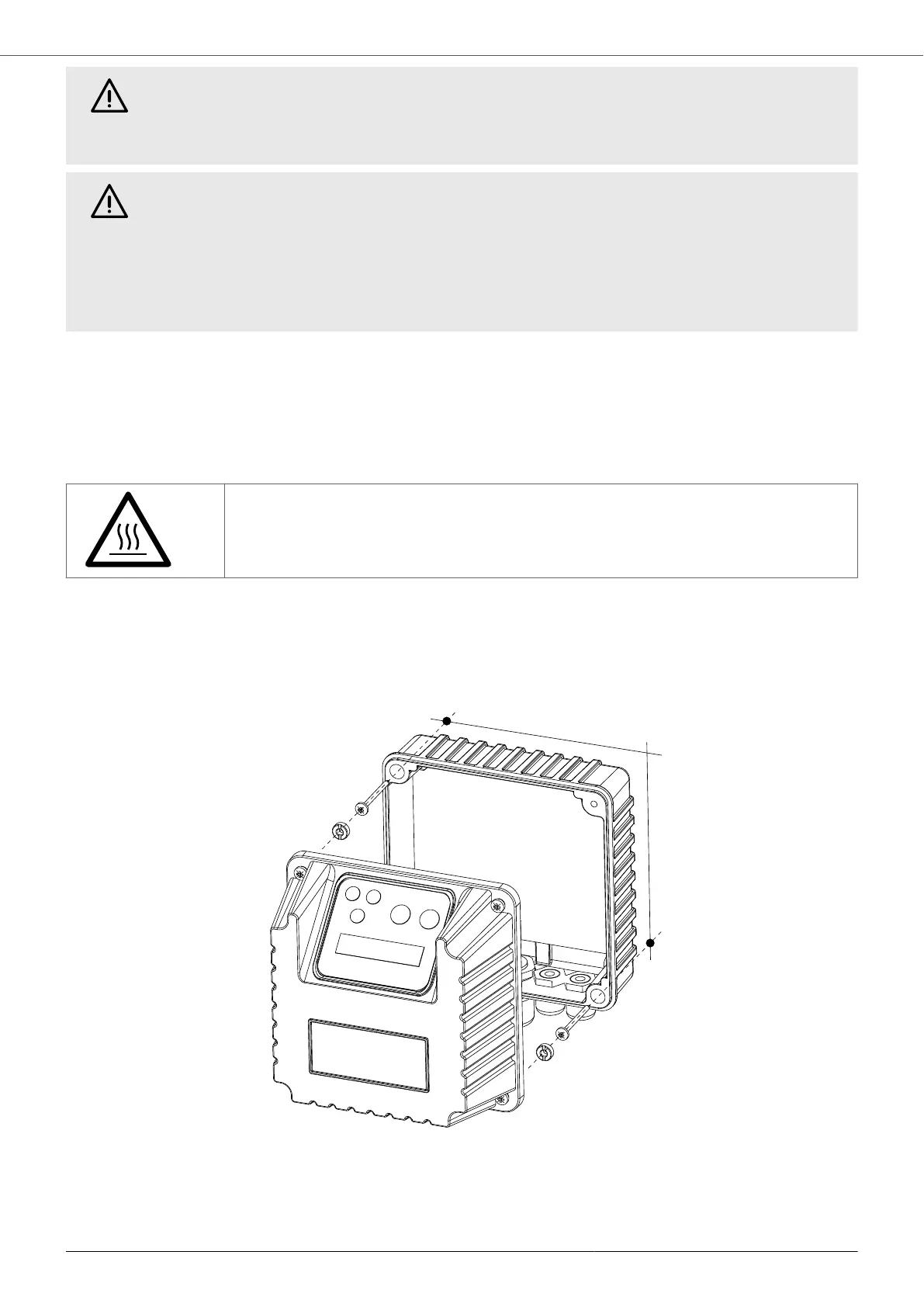

6.3. Wall installation
