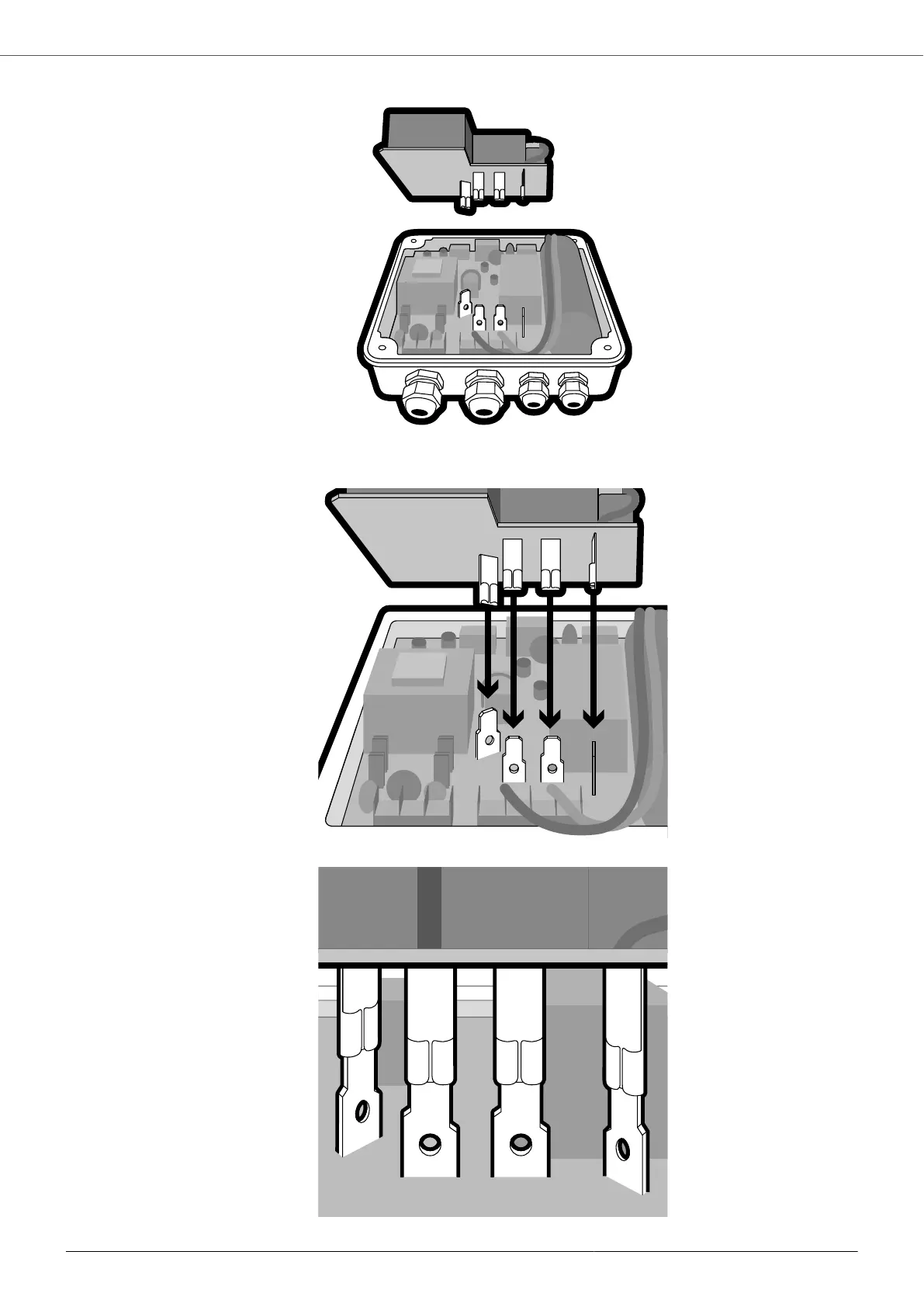

3. Place board AVIATOR above board PILOT.
4. Insert the female faston terminals of board AVIATOR in the male faston terminals of board PILOT paying
attention to the correct insertion of all 4 terminals.
5. Gently press the board AVIATOR downwards making sure the faston contacts are correctly coupling.
