National Instruments cRIO-9068 - LEDs; Power LED Indicators

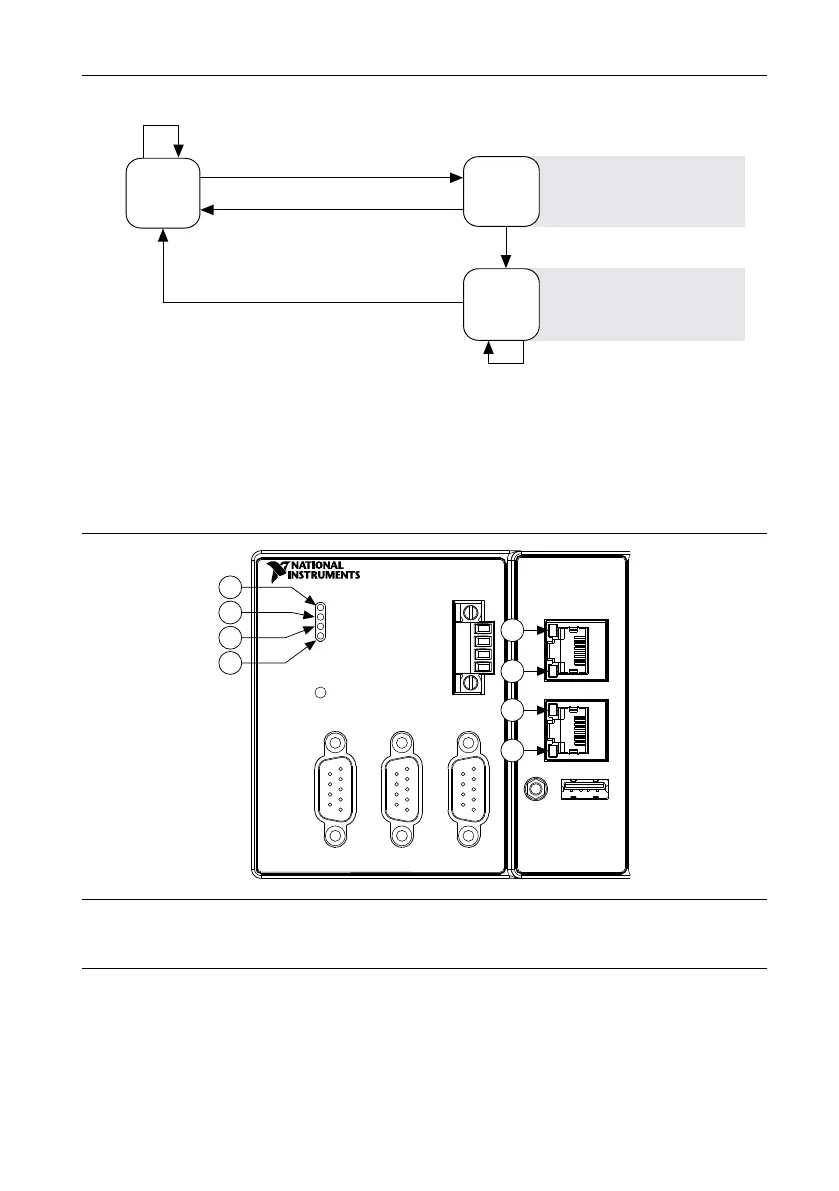

Figure 3. Reset Button Behavior
Press and hold RESET button for ≥ 5 s
Press and hold RESET button for < 5 s
Run Mode
Safe Mode
Press and hold RESET button for < 5 s
Press and hold RESET button for ≥ 5 s
Press and hold
RESET button for ≥ 5 s
Press and hold
RESET button for < 5 s
• Console Out enabled
• Network settings reset
• RT Startup App disabled
• FPGA Startup App disabled
• Console Out enabled
• RT Startup App disabled
• FPGA Startup App disabled
Safe Mode
LEDs
The cRIO-9068 provides the following LEDs.
Figure 4. cRIO-9068 LEDs
1
4
3
2
5
6
5
6
1. Power
2. Status
3. User1
4. User FPGA1
5. ACT/LINK
6. 10/100/1000
POWER LED Indicators
The following table lists the POWER LED indicators.
10 | ni.com | NI cRIO-9068 User Manual
