Mounting the Device on a Rack

You can use the following rack mount kit to mount the cRIO-9068 and other DIN rail-

mountable equipment on a standard 482.6 mm (19 in.) rack.

• NI Rack-Mounting Kit, 781989-01

Note You must use the NI DIN rail mounting kit, 779018-01, in addition to a rack-

mounting kit.

Mounting the Device on a Desktop

You can use the NI desktop mounting kit to mount the cRIO-9068 on a desktop.

What to Use

• cRIO-9068

• Screwdriver, Phillips #1

• Screwdriver, Phillips #2

• NI desktop mounting kit, 779473-01

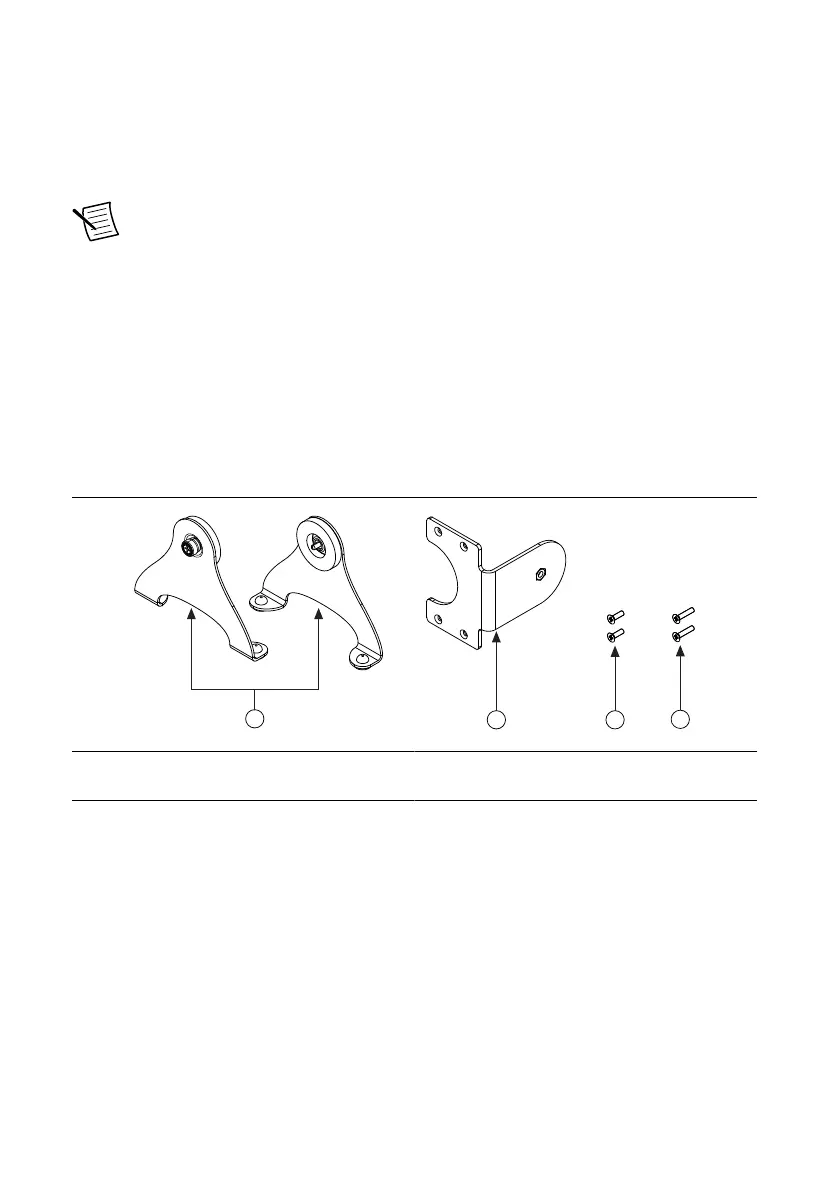

Figure 14. Components of the NI Desktop Mount Kit

2 3

1. Desktop mounting brackets (x2)

2. Adapter bracket

3. M3x14 screws (x2)

4. M3x20 screws (x2)

What to Do

Complete the following steps to mount the cRIO-9068 on a desktop.

Other manuals for National Instruments cRIO-9068
