Tip Before using any of these mounting methods, record the serial number from
the back of the cRIO-9068 so that you can identify the cRIO-9068 in MAX. You
will be unable to read the serial number after you mount the cRIO-9068.
Dimensions

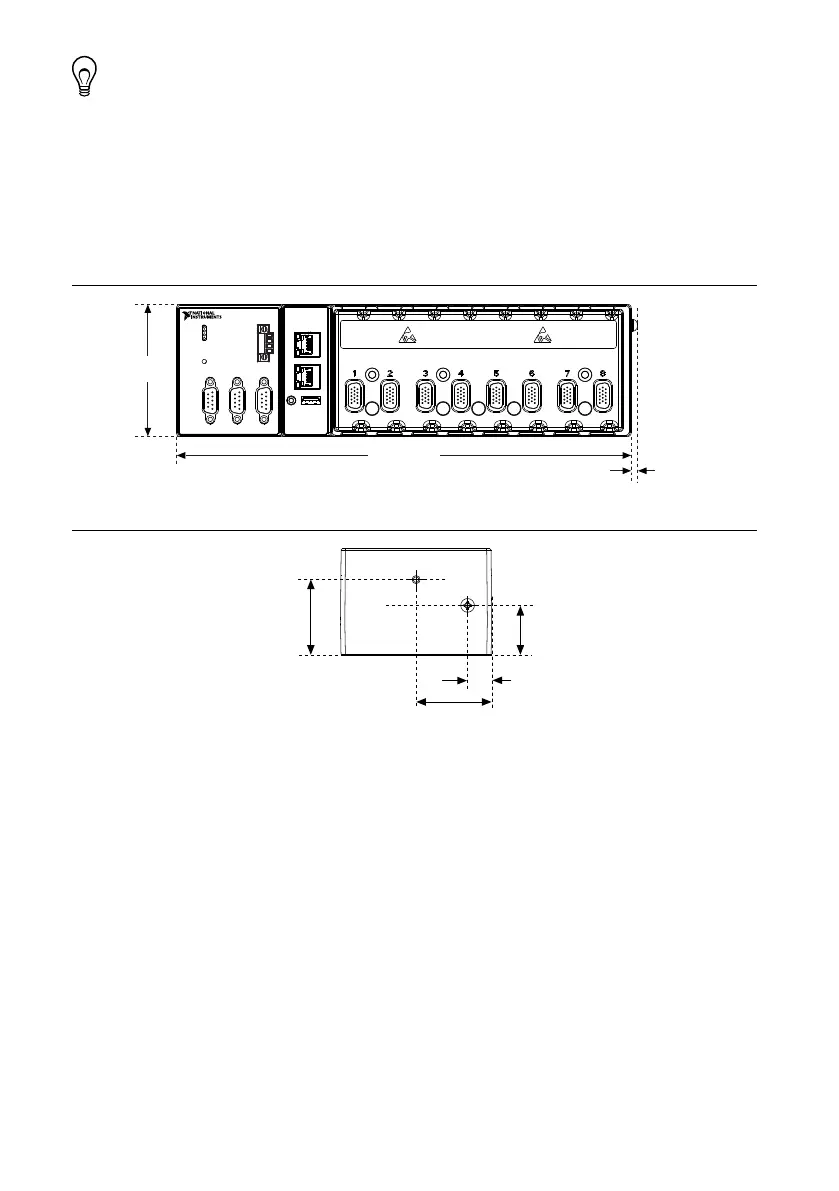

The following figures show the front and side dimensions of the cRIO-9068. For detailed
dimensional drawings and 3D models, visit ni.com/dimensions and search for the module
number.
Figure 7. cRIO-9068 Front Dimensions
302.8 mm
(11.92 in.)
88.1 mm
(3.47 in.)
4.0 mm
(0.16 in.)
Figure 8. cRIO-9068 Side Dimensions
44.1 mm
(1.74 in.)
44.1 mm
(1.73 in.)
14.1 mm
(0.55 in.)
29.3 mm
(1.15 in.)
Mounting Requirements
Your installation must meet the following requirements for cooling and cabling clearance.
Allow 25.4 mm (1.00 in.) on the top and the bottom of the cRIO-9068 for air circulation, as
shown in the following figure.
NI cRIO-9068 User Manual | © National Instruments | 15
