National Instruments cRIO-9068 - Mounting the Device on a Panel

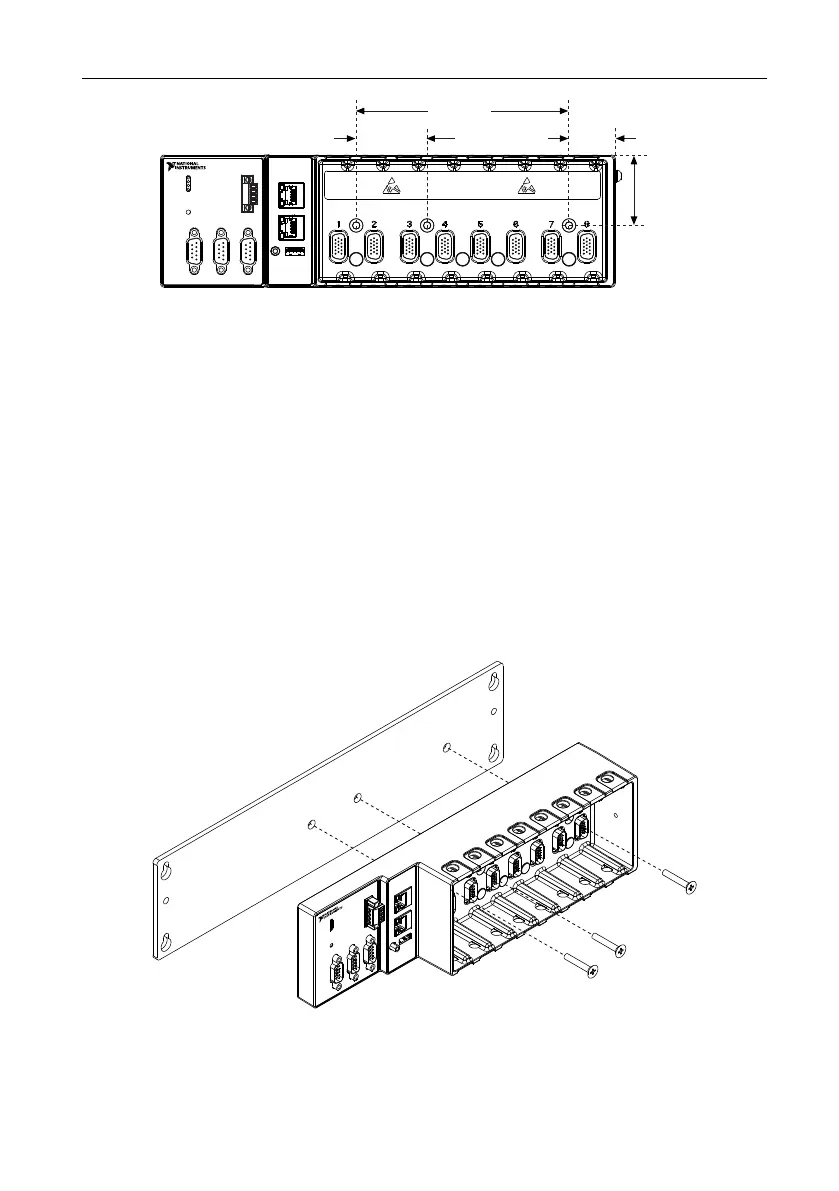

Figure 12. cRIO-9068 Surface Mounting Dimensions
141.7 mm
(5.58 in.)
47.2 mm
(1.86 in.)
47.0 mm
(1.85 in.)
30.8 mm
(1.21 in.)
Mounting the Device on a Panel
You can use the NI panel mounting kit to mount the cRIO-9068 on a panel.
What to Use
• cRIO-9068
• Screwdriver, Phillips #2
• NI panel mounting kit, 782863-01
– Panel mounting plate
– M5 or number 10 screw (x4)
What to Do
Complete the following steps to mount the cRIO-9068 on a panel.
1. Align the cRIO-9068 and the panel mounting plate.
