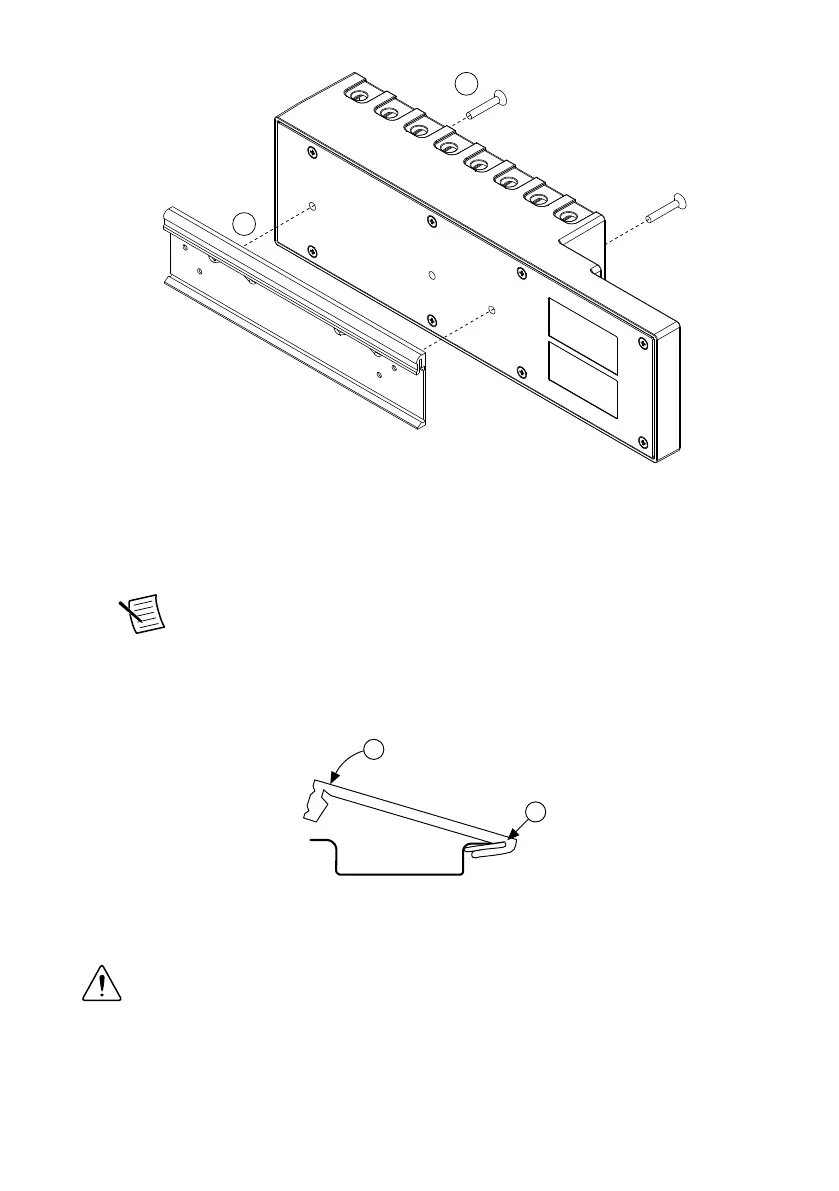

1. Align the cRIO-9068 and the DIN rail clip.
2. Fasten the DIN rail kit to the cRIO-9068 using the screwdriver and M4 × 25 flathead
screws. NI provides these screws with the DIN rail mounting kit. Tighten the screws to a
maximum torque of 1.3 N · m (11.5 lb · in.).
Note You must use the screws provided with the NI DIN rail mounting kit
because they are the correct depth and thread for the DIN rail clip.
Clipping the Device on a DIN Rail
Complete the following steps to clip the cRIO-9068 on a DIN rail.
1. Insert one edge of the DIN rail into the deeper opening of the DIN rail clip.
2. Press down firmly to compress the spring until the clip locks in place on the DIN rail.
Caution Ensure that no C Series modules are in the cRIO-9068 before removing it
from the DIN rail.
20 | ni.com | NI cRIO-9068 User Manual
