National Instruments M Series - Chapter 8 PFI

© National Instruments Corporation 8-1 M Series User Manual
8
PFI
M Series devices have up to 16 Programmable Function Interface (PFI)
signals. In addition, M Series devices have up to 32 lines of bidirectional
DIO signals.
Each PFI can be individually configured as the following.
• A static digital input
• A static digital output
• A timing input signal for AI, AO, DI, DO, or counter/timer functions
• A timing output signal from AI, AO, DI, DO, or counter/timer
functions
Each PFI input also has a programmable debouncing filter. Figure 8-1
shows the circuitry of one PFI line. Each PFI line is similar.

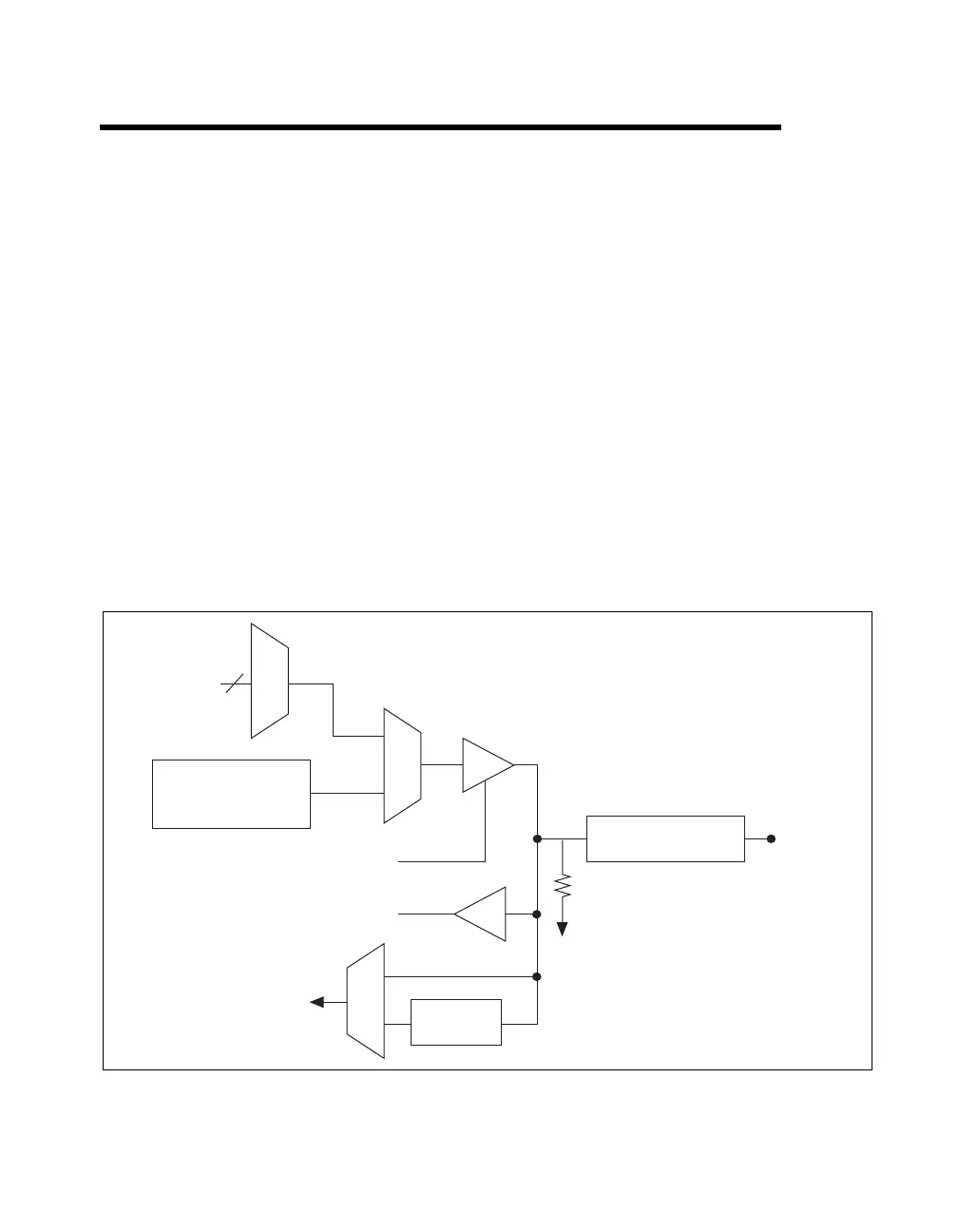

Figure 8-1. M Series PFI Circuitry
Timing Signals
Direction Control
Static DI
I/O Protection
Weak Pull-Down
PFI x/P1/P2
Static DO
Buffer
To Input Timing
Signal Selectors
PFI
Filters
