Chapter 3 Connector and LED Information
© National Instruments Corporation 3-9 M Series User Manual

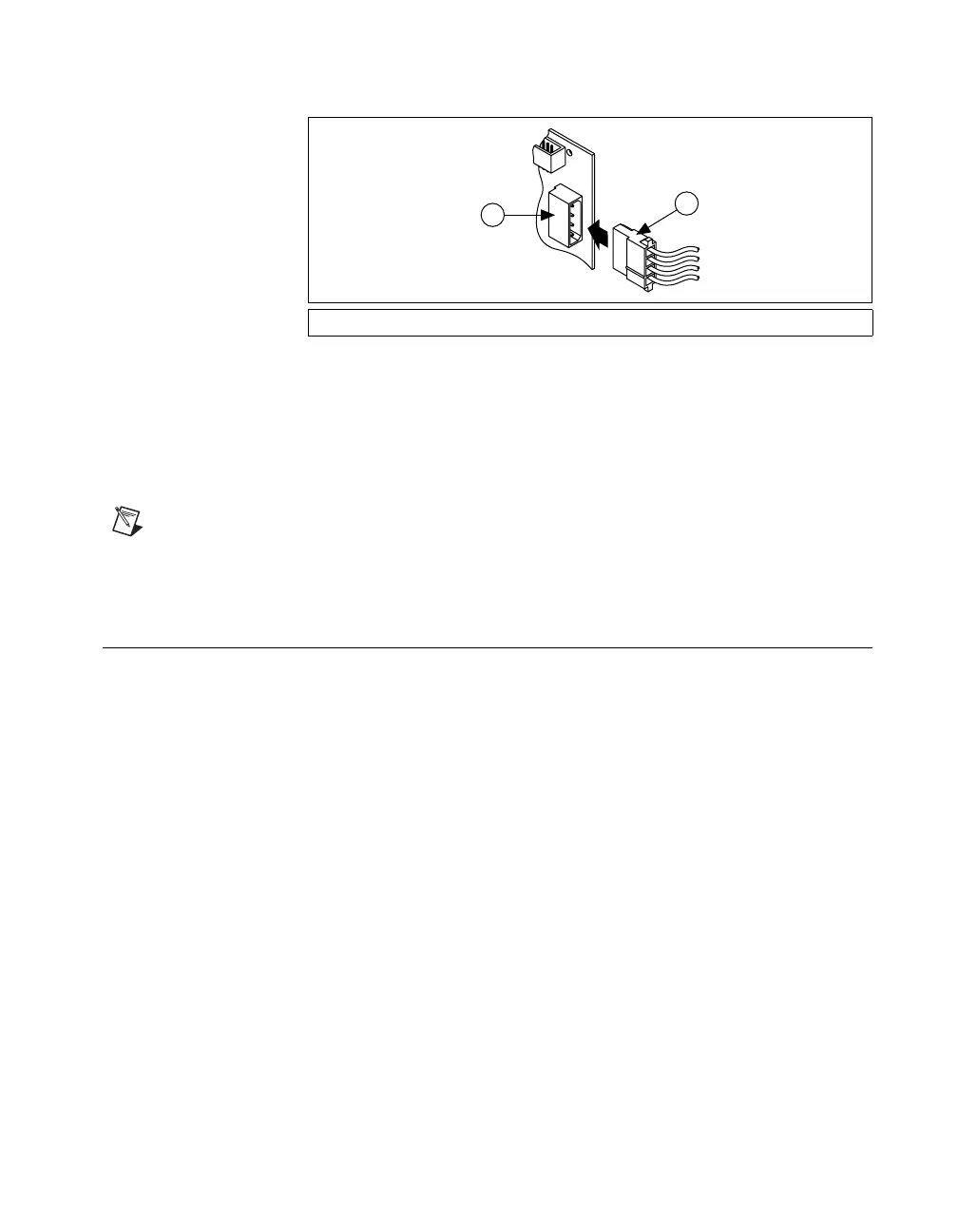

Figure 3-1. Connecting to the Disk Drive Power Connector
4. Replace the computer cover, and plug in and power on the computer.
5. Self-calibrate the PCI Express DAQ device in MAX by following the
instructions in Calibrating DAQ Devices in the Measurement &
Automation Explorer Help.
Note Connecting or disconnecting the disk drive power connector can affect the analog
performance of your device. To compensate for this, NI recommends that you self-calibrate
after connecting or disconnecting the disk drive power connector.
USB Device Fuse Replacement
M Series USB devices have a replaceable 2A 250V (5 × 20 mm) fuse.
(USB-62xx Screw Terminal Devices) To remove the fuse from the USB-62xx
Screw Terminal, complete the following steps.
1. Power down and unplug the device.
2. Loosen the four Phillips screws that attach the back lid to the
enclosure, and remove the lid.
1 Device Disk Drive Power Connector 2 PC Disk Drive Power Connector
1
2
