National Instruments M Series User Manual

Appendix B Timing Diagrams
© National Instruments Corporation B-9 M Series User Manual

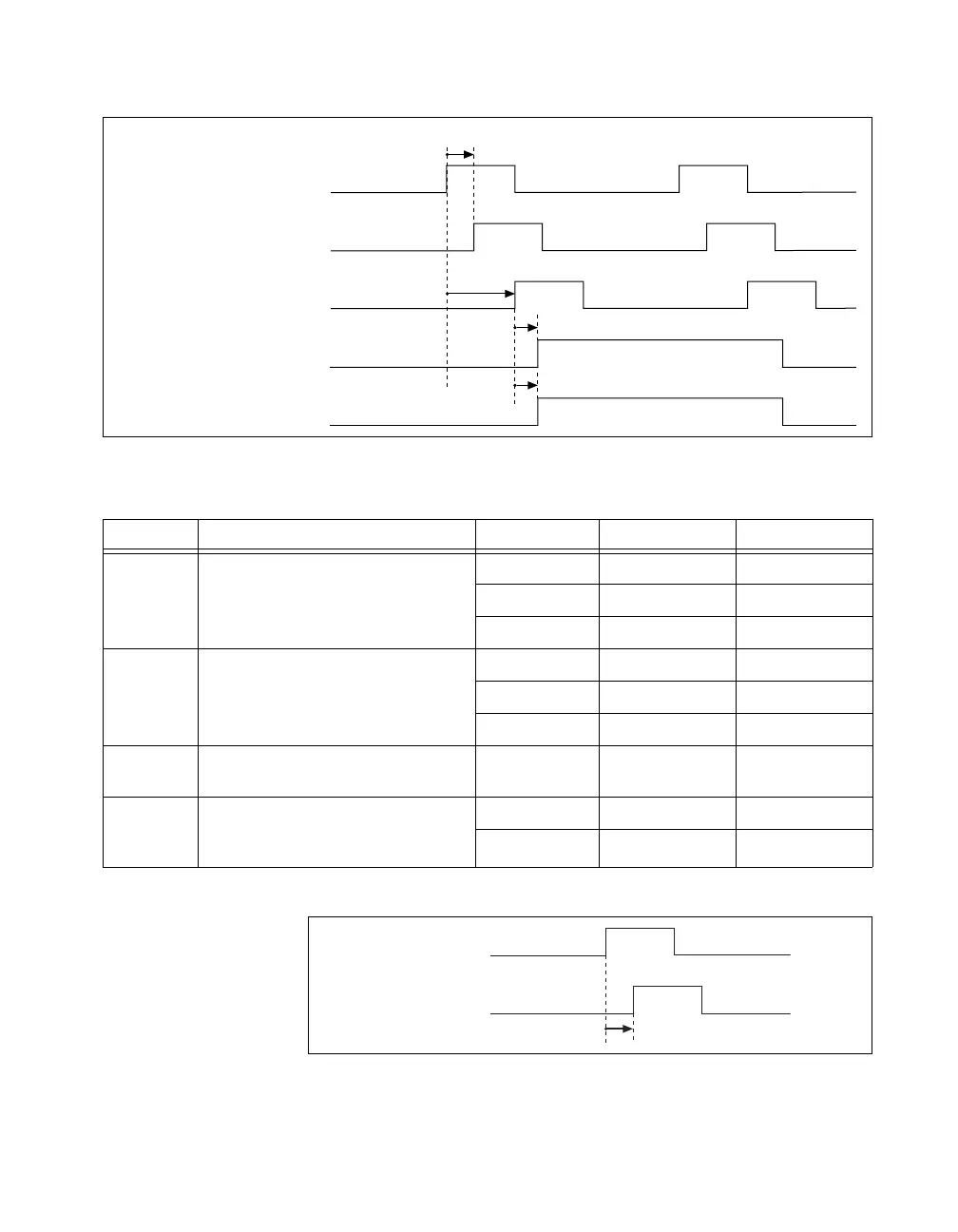

Figure B-7. Convert Clock Timing Diagram
Figure B-8. Convert Clock and Any Internal Signal Timing Diagram
Table B-3. Convert Clock Timing
Time Description Line Min (ns) Max (ns)
t
8
Delay from _i to Sync Convert Clock
Timebase
PFI 6.4 15.9
RTSI 6.0 15.6
STAR 5.7 12.9
t
9
Delay from _i to Convert Clock
Timebase
PFI 16.2 39.1
RTSI 16.0 38.8
STAR 15.5 36.1
t
10
Delay from Convert Clock Timebase to
p_AI_Convert
— 6.0 13.0
t
11
Delay from Convert Clock Timebase to
Convert Clock, when exported to an
external terminal (POUT)
PFI 4.6 10.8
RTSI 4.6 10.5
_i
POUT
Sync Convert Clock Timebase
Convert Clock Timebase
p_AI_Convert
t
8
t
9
t
10
t
11
_i
p_AI_Convert
t
12
