National Instruments M Series User Manual

Appendix B Timing Diagrams
M Series User Manual B-26 ni.com

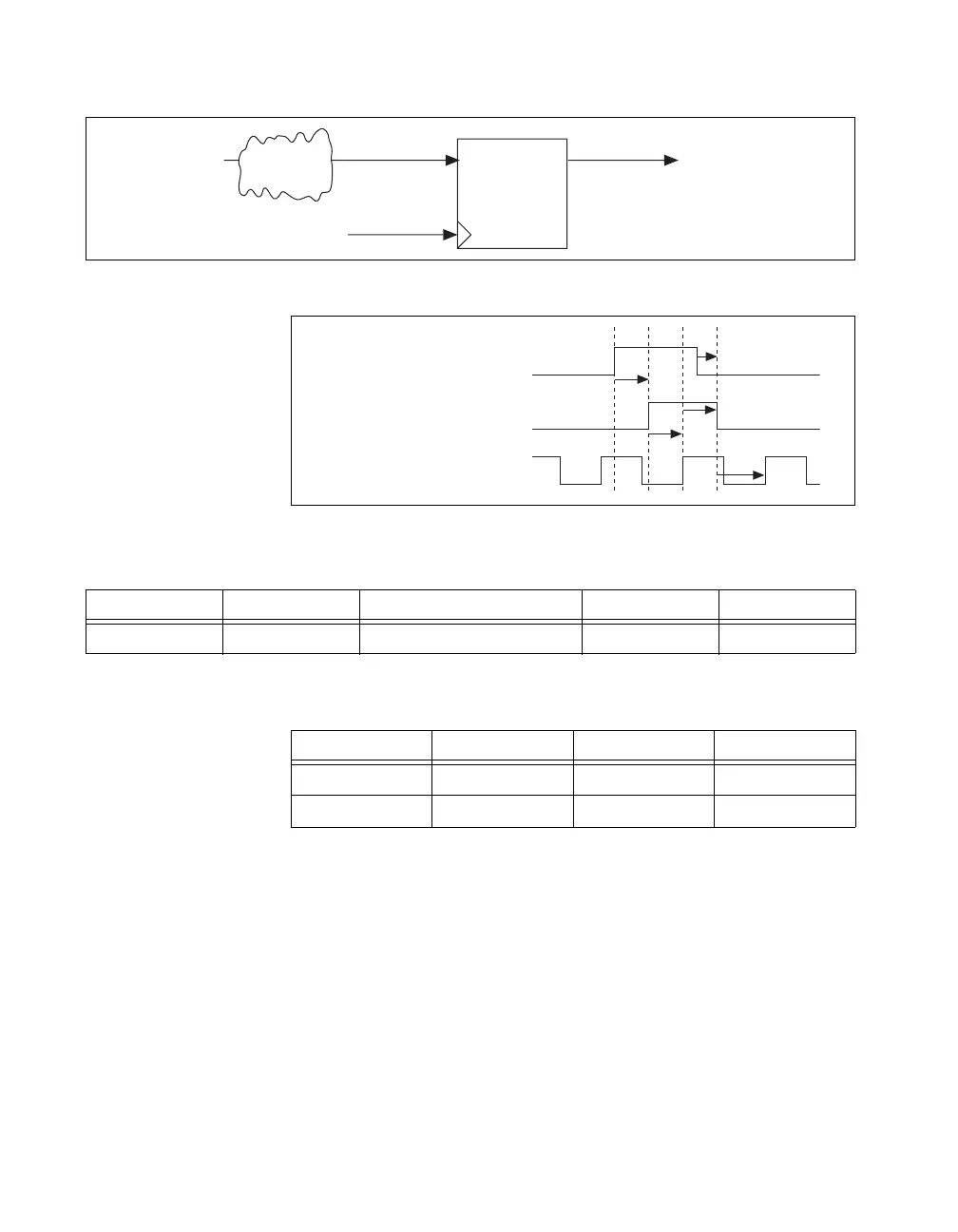

Figure B-28. Pause Trigger Input Delay Path
Figure B-29. Pause Trigger Timing Diagram
Input Timing Verification
Consider an application that uses an external trigger and an external clock.
The trigger and clock signals are routed to an internal D flip-flop (DFF). To
ensure that the trigger is sampled on a particular clock edge, the setup and
hold times of the internal DFF must be met:
• Recall that a “terminal” is a PFI pin, RTSI pin, or PXI_Star pin.
• Let TriggerDelay be the delay from the trigger terminal to the DFF.
• Let ClockDelay be the delay from the clock terminal to the DFF.
Table B-17. Pause Trigger Timing from Signal_i to Selected Pause
Time From To Min (ns) Max (ns)
t
9
Signal_i Selected Pause 1.7 7.8
Table B-18. Pause Trigger Setup and Hold Timing
Time Parameter Min (ns) Max (ns)
t
10
Setup 1.5 —
t
11
Hold 0 —
Signal_i
Sync Sample Clock Timebase
D Q To Internal Logic
Logic
Selected Pause
Signal_i
Selected Pause
Sync Sample Clock Timebase
t
9
t
9
t
10
t
11
t
10
