DC and AC Current

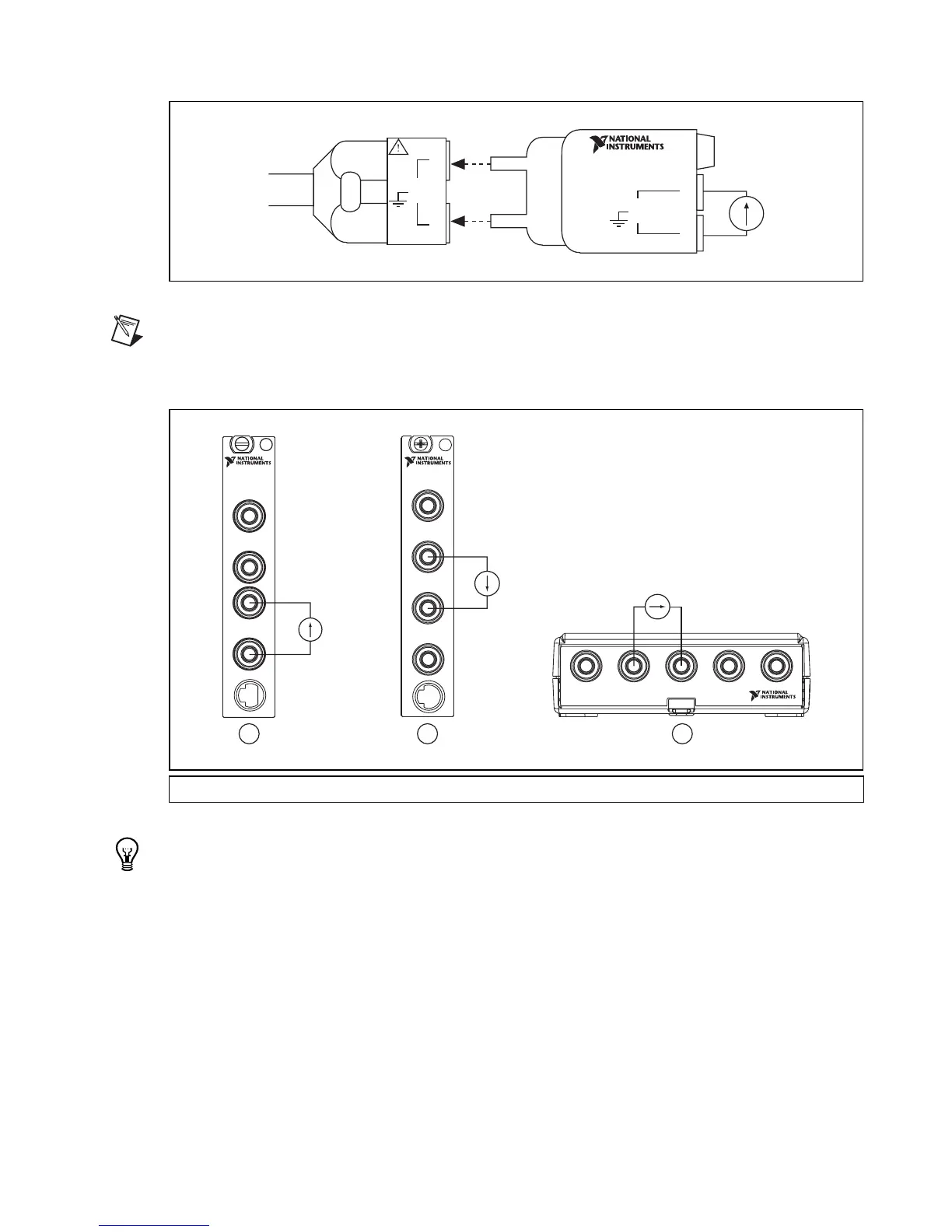

Figure 12. NI 4050 Signal Connections for Current Measurements
Note To measure current, the NI 4050 requires the NI CSM-200mA or NI CSM-10A current shunt
module (shown in Figure 12), which is available from NI. Refer to the NI CSM-10A/200mA
Installation Guide at Start»All Programs»National Instruments»NI-DMM»Documentation.
Figure 13. NI 4060, NI 4065, and NI 407x Signal Connections for Current Measurements
Tip To measure current beyond the specifications of the NI 4060, NI 4065 and NI 407x, NI offers a
10 A current shunt module, the NI CSM-10A. Refer to the NI CSM-10A/200mA Installation Guide
at
ni.com/manuals for more information. Refer to ni.com/instruments for purchasing
information.
1 NI 4060 2 NI PXI/PCI/PCIe-4065 and NI 407x 3 NI USB-4065
250 V
MAX.
LO
HI
250 V
MAX.- FUSED
LO
HI
CSM-200mA
200mA SHUNT 1Ω
2
3
1
