Appendix A: Front Panels
PXI/PCI/PCI Express/USB
The PXI, PCI, PCI Express front panels have four shrouded banana plug connectors and one 9-pin
connector. The USB front panel has five shrouded banana plug connectors and one 9-pin connector.
Refer to Figure 20 for the front panels for the NI 4060, NI 4065, and NI 407x.

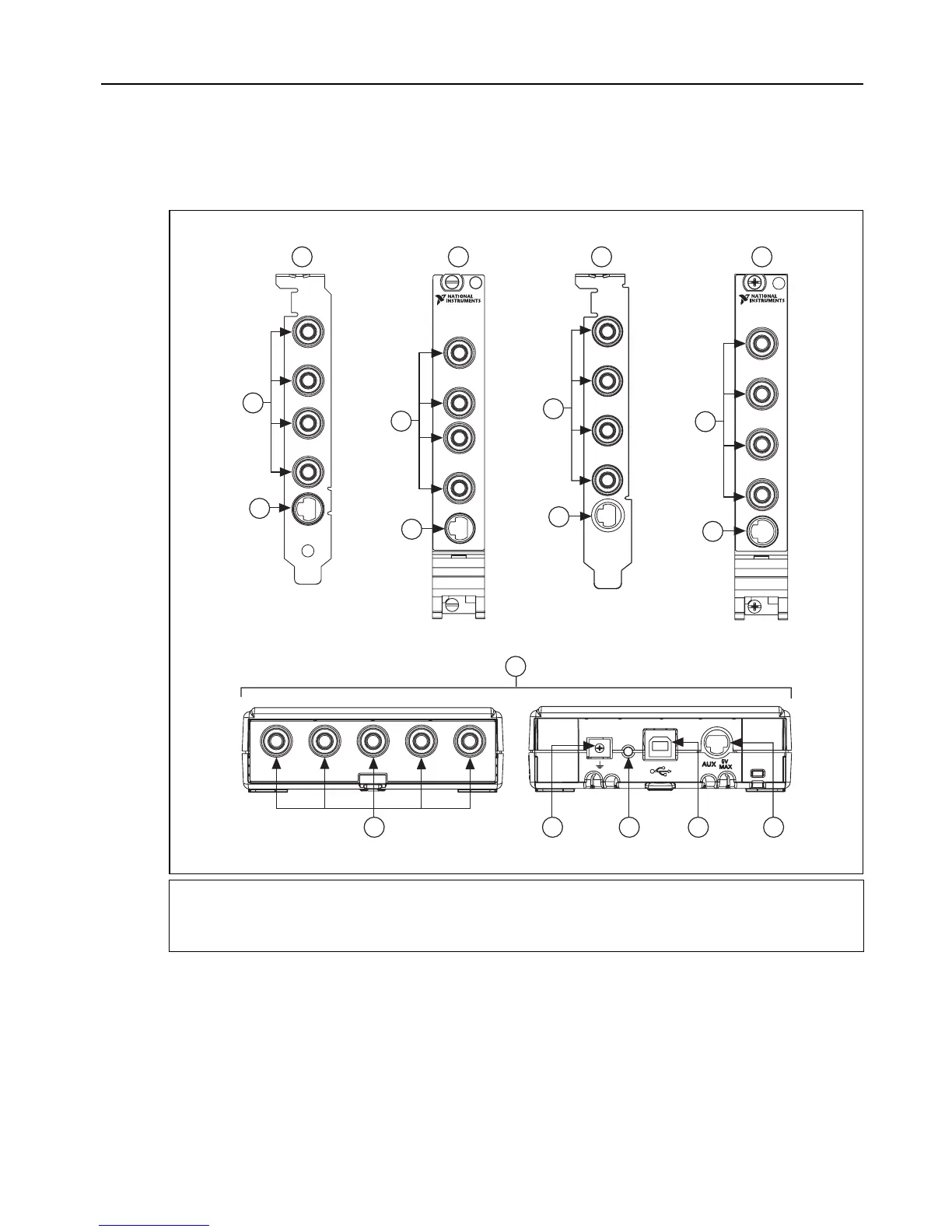

Figure 20. Front Panel Connectors on the PXI, PCI, PCI Express, and USB DMMs
1 NI PCI-4060
2 NI PXI-4060
3 NI PCI/PCIe-4065, NI PCI-4070
4 NI PXI-4065/4070/4071/4072
5 NI USB-4065
6 Banana Plug Connectors
7 9-Pin Auxiliary Connectors
8 Ground Lug
9LED
