Installing a PCI Express DMM
To determine PCI Express slots, refer to Figure 4. To install a PCI Express DMM, refer to the Installing
a PCI DMM section using any PCI Express slot.

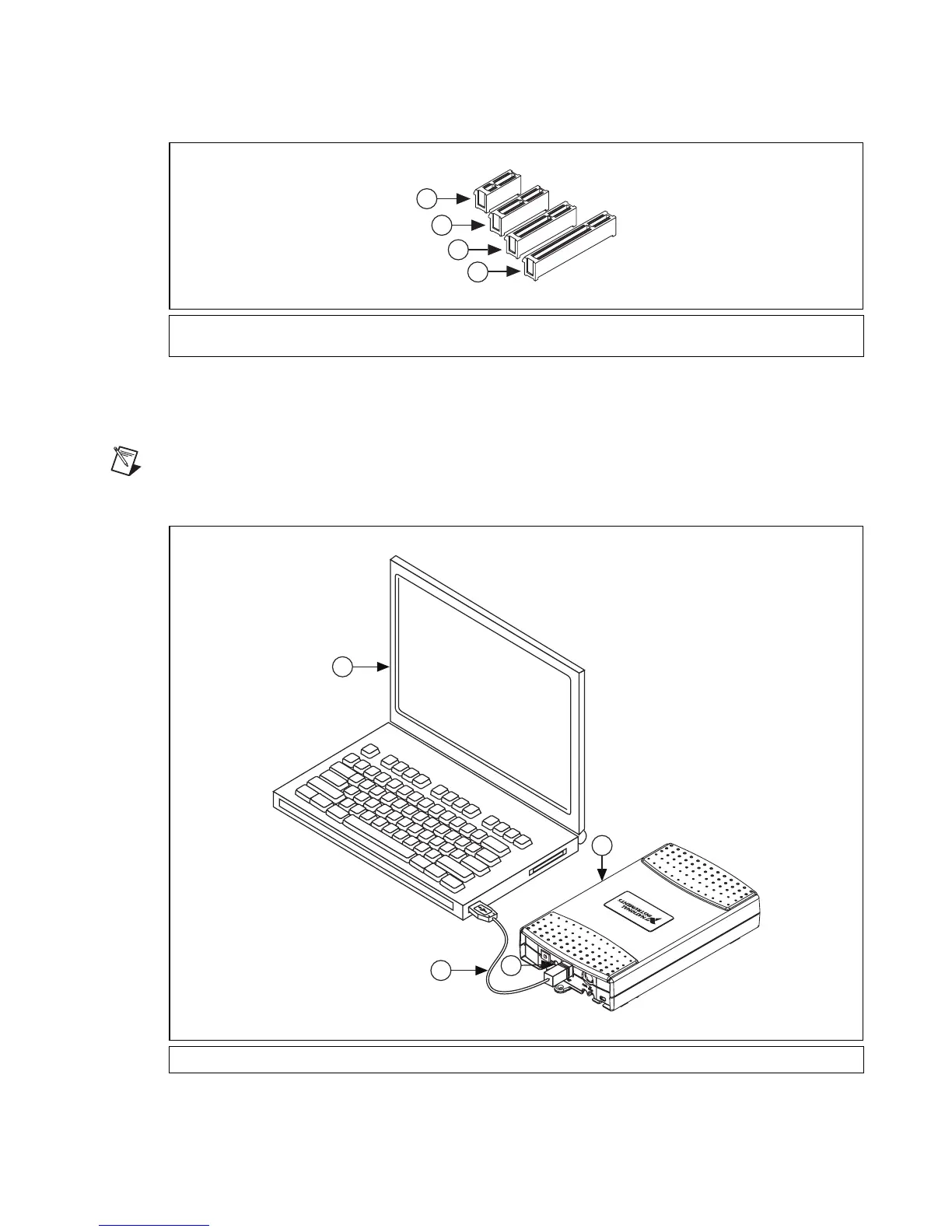

Figure 4. PCI Express Slots
Installing a USB DMM
To install a USB DMM, refer to Figure 5, and connect the USB cable to the PC and DMM.
Note The LED next to the USB connector of the device will be lit with a solid green light once the
PC loads the driver for the device.
Figure 5. USB Installation
1 PCI Express x1 Slot
2 PCI Express x4 Slot
3 PCI Express x8 Slot
4 PCI Express x16 Slot
1 Laptop Computer 2USB DMM 3USB Cable 4LED
2
3
4
1
2
1
3
4
