NI Digital Multimeters Getting Started Guide 16 ni.com
8. Connecting Signals
The following sections explain how to connect signals to the DMM front panel connectors for common
measurements.
For more information about these common measurements, refer to the NI Digital Multimeters Help at
Start»All Programs»National Instruments»NI-DMM»Documentation»NI Digital Multimeters
Help.
Caution Always refer to the specifications document included with the DMM before connecting
signals. Failure to observe the specified maximum signal ratings can cause shock, a fire hazard, or
damage to the devices connected to the DMM. NI is not liable for any damage or injuries resulting
from incorrect signal connections.
DC and AC Voltage

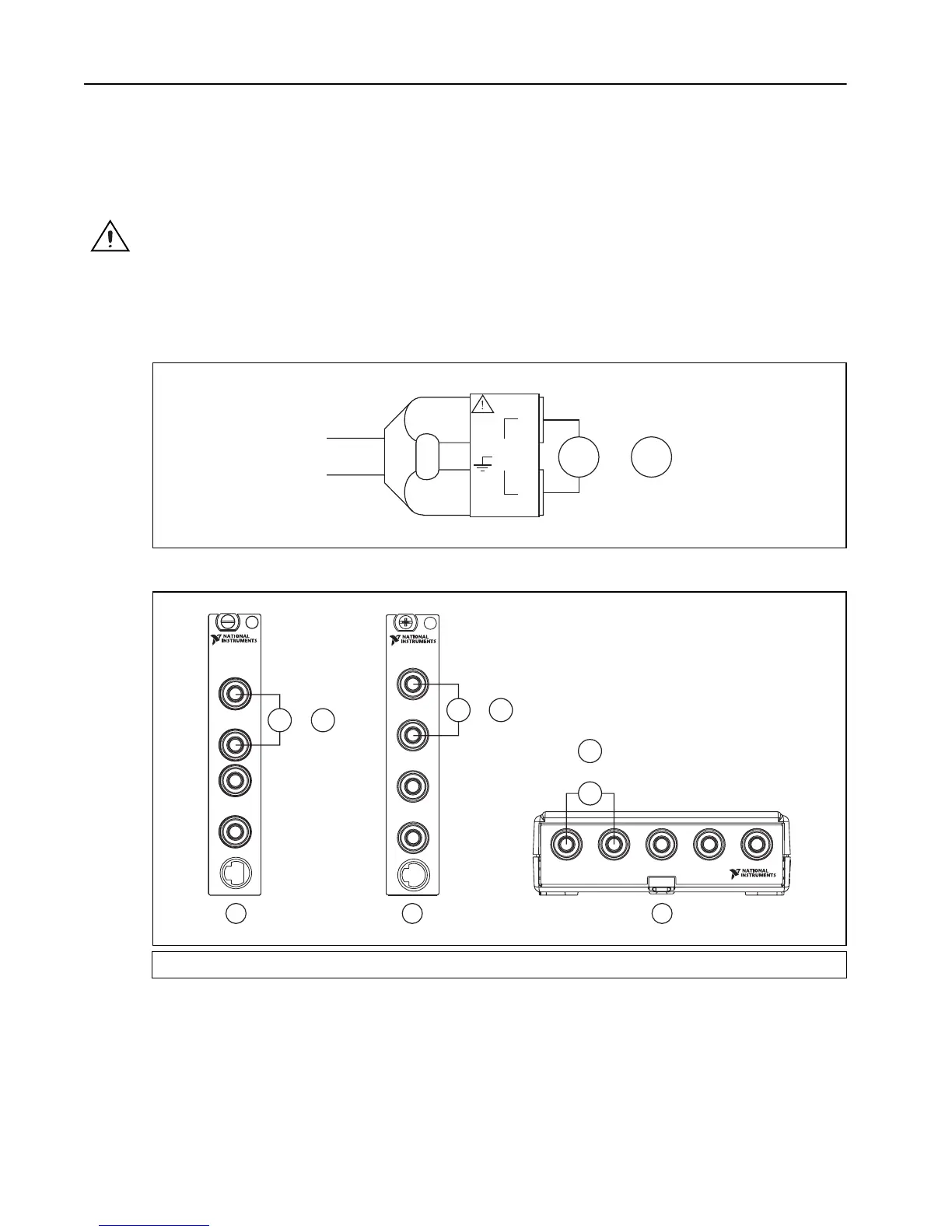

Figure 10. NI 4050 Signal Connections for Voltage Measurements
Figure 11. NI 4060, NI 4065, and NI 407x Signal Connections for Voltage Measurements
1 NI 4060 2 NI PXI/PCI/PCIe-4065 and NI 407x 3 NI USB-4065
or
250 V
MAX.
LO
HI
DC
AC
or
DC
AC
or
DC
AC
or
DC
AC
2 31
