4-Wire Resistance (NI 4060, NI 4065 and NI 407x only)
4-wire resistance measurements use both pairs of terminals. Use the configuration to measure low
resistances accurately by eliminating the effects of lead resistance.
Note The NI 4050 does not support 4-wire resistance measurements.

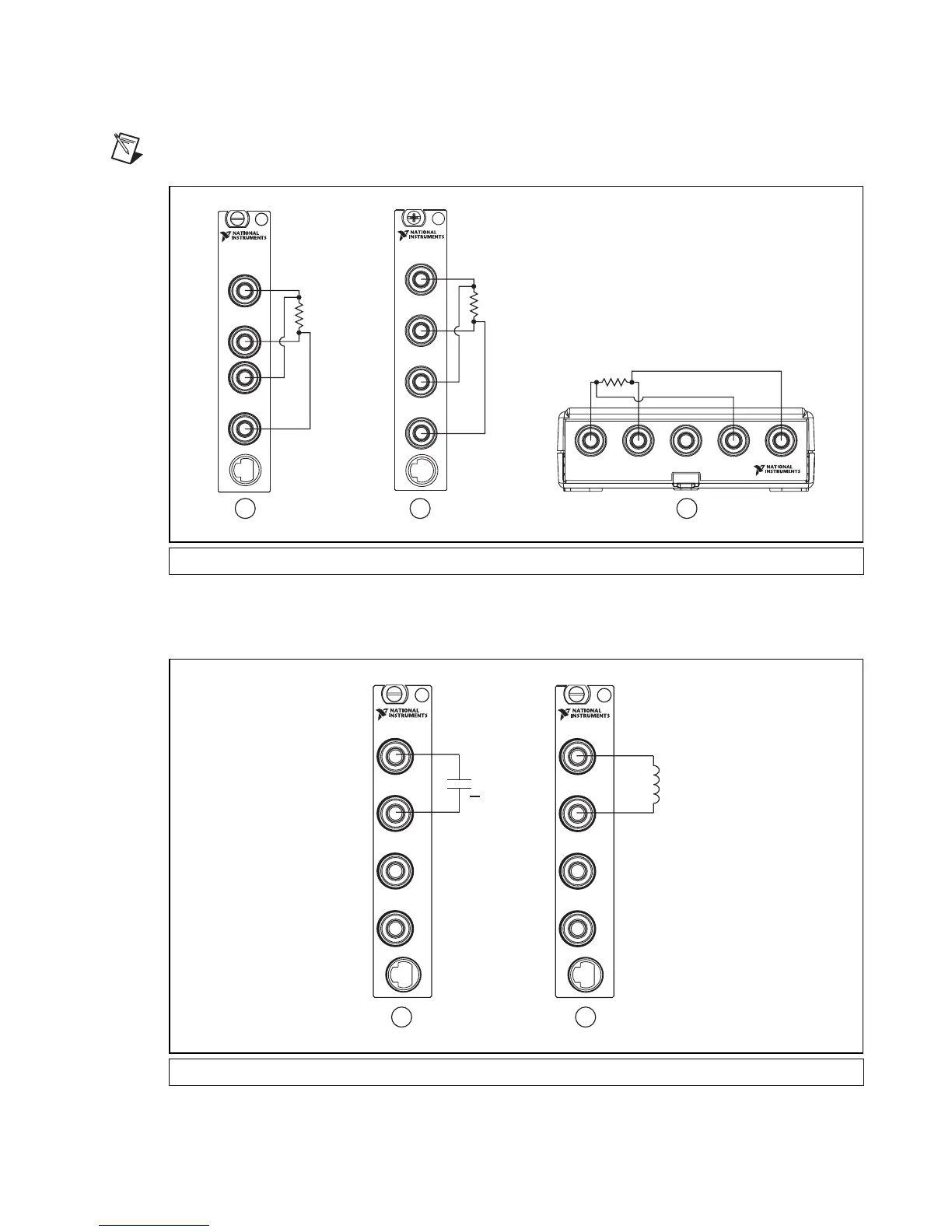

Figure 16. NI 4060, NI 4065, and NI 407x Signal Connections for 4-Wire Resistance Measurements
Capacitance and Inductance (NI 4072 only)
Figure 17. NI 4072 Signal Connections for Capacitance and Inductance Measurements
1 NI 4060 2 NI PXI/PCI/PCIe-4065 and NI 407x 3 NI USB-4065
1 Capacitance Connections 2 Inductance Connections
2
3
1
+
2
1
