National Instruments PCIe-6323 User Manual

A-16 | ni.com
Appendix A Device-Specific Information

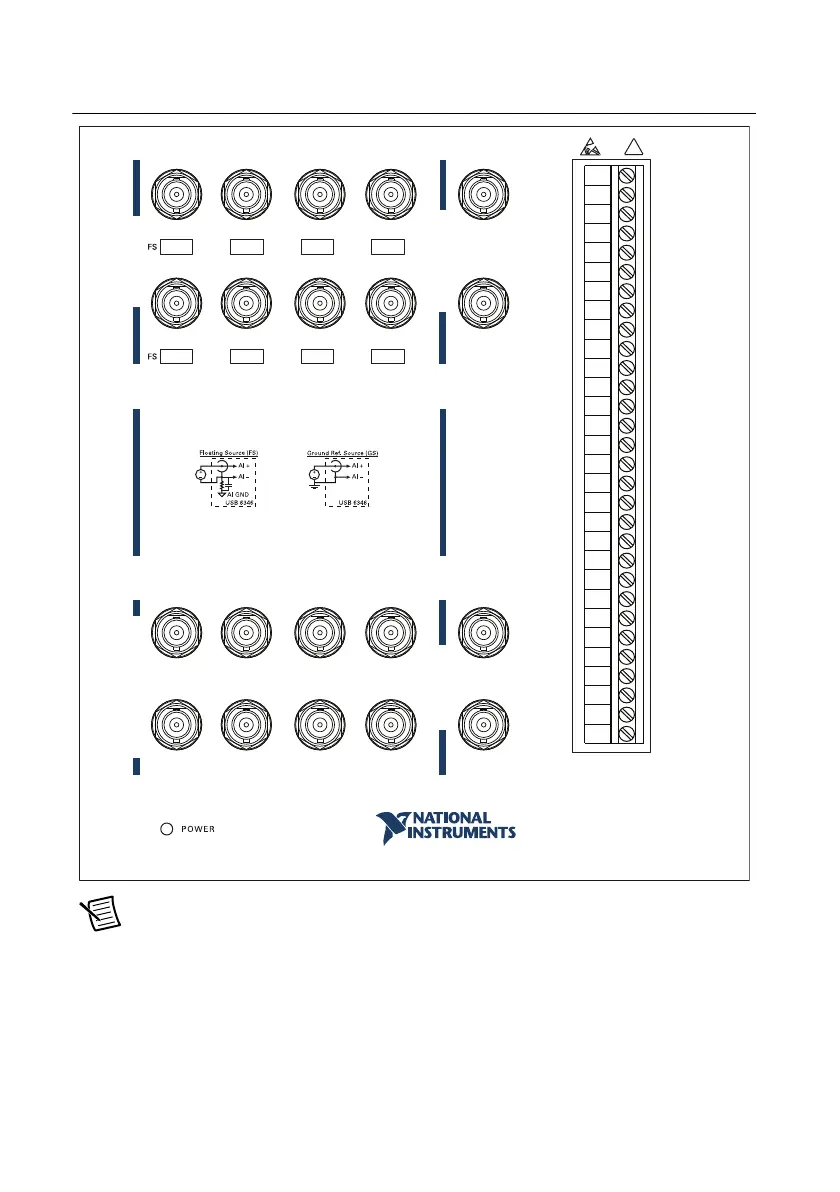

Figure A-11. NI USB 6346 BNC Pinout
Note Refer to Table 7-9, X Series PCI Express/PXI Express/USB Mass
Termination/USB BNC Device Default NI-DAQmx Counter/Timer Pins
, for a list of
the default NI-DAQmx counter/timer pins for this device. For more information
about default NI-DAQmx counter inputs, refer to Connecting Counter Signals in the
NI-DAQmx Help or the LabVIEW Help.
ANALOG OUTPUT
DIGITAL AND TIMING I/O
USER ACCESS
AI 0
AI 4
AI 1
AI 5
AI 2
AI 6
AI 3
AI 7
PFI 0/P1.0
PFI 4/P1.4
GS
GS
GS
GS
GS
GS
GS
GS
FS
FS
FS
FS
FS
FS
USB-6346
8 Inputs, 16-Bit, 500 kS/s
Multifunction I/O Device
AO 0
AO 1
D GND
P0.0
P0.1
P0.2
P0.3
D GND
P0.4
P0.5
P0.6
P0.7
D GND
PFI 8/P2.0
PFI 9/P2.1
PFI 10/P2.2
PFI 11/P2.3
D GND
PFI 12/P2.4
PFI 13/P2.5
PFI 14/P2.6
PFI 15/P2.7
D GND
USER 1
USER 2
D GND
+5 V
AI GND
RESERVED
RESERVED
APFI 0
CHS GND
PFI 1/P1.1
PFI 5/P1.5
PFI 2/P1.2
PFI 6/P1.6
PFI 3/P1.3
PFI 7/P1.7
USER 1
USER 2
!
ANALOG INPUT
