National Instruments SCB-68 User Manual

Chapter 4 Using Thermocouples
© National Instruments Corporation 4-3 SCB-68 Shielded Connector Block User Manual

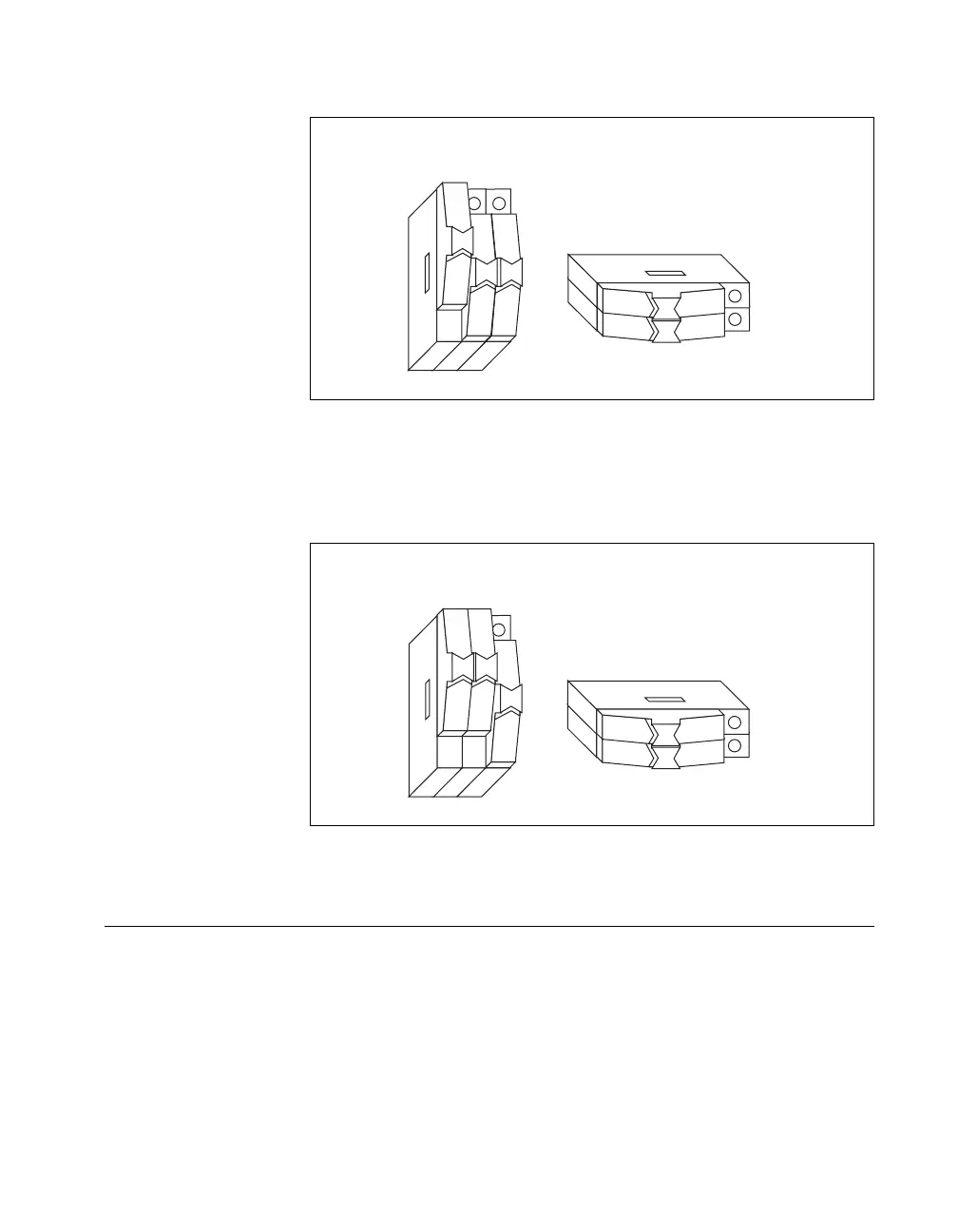

Figure 4-1. Single-Ended Switch Configuration
For differential operation, connect differential analog channel 0 to the
temperature sensor by switching S5 and S4 to the up position, as shown in
Figure 4-2.
Figure 4-2. Differential Switch Configuration
Special Considerations
To connect a high-value resistor between the positive input and +5V, refer
to the Accuracy and Resolution Considerations section of Chapter 5,
Adding Components for Special Functions.
To reduce noise by connecting a lowpass filter to the analog inputs of the
SCB-68, refer to the Lowpass Filtering section of Chapter 5, Adding
Components for Special Functions.
S1
S2
S5 S4 S3
Signal Conditioning
Circuitry Power (On)
Temperature Sensor
S1
S2
S5 S4 S3
Signal Conditioning
Circuitry Power (On)
Temperature Sensor
