National Instruments USRP-2950 User Manual

Table 9. LEDs (Continued)
LED Description Color State Indication
RF 1 TX1
RX1
Indicates the transmit
status of the device.
OFF — The device is not active.
Red Solid The device is transmitting
data.
Green Solid The device is receiving
data.
RX2 Indicates the receive
status of the device.
OFF — The device is not receiving
data.
Green Solid The device is receiving
data.

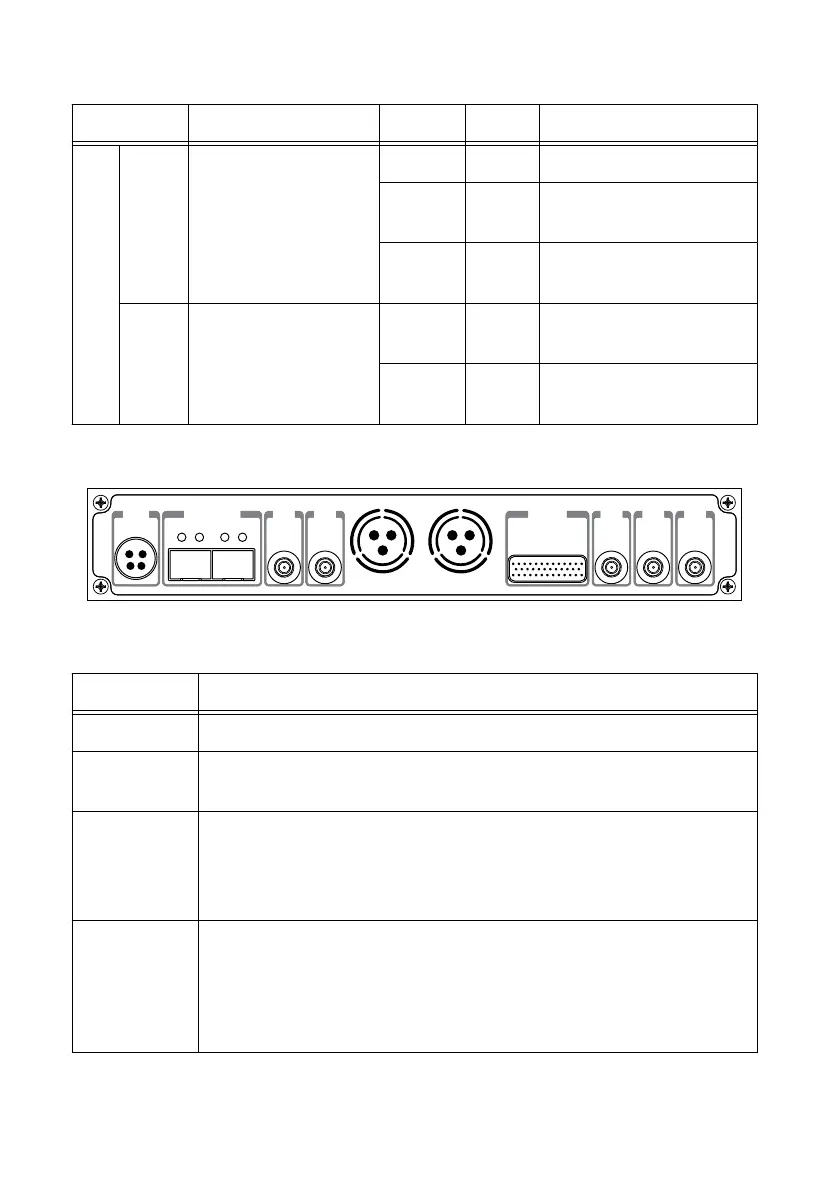

Back Panel
0 1
PWR REF
IN
PPS
OUT
TRIG
5V DC
REF
OUT
1G/10G ETH
3.3 V +15 dBm
MAX
9-16V DC
7.5 A MAX
SFP+Ports
PCIe x4
TRIG
3.3V
IN
5V MAX
PPS GPS
ANT
–15 dBm
MAX
Table 10. Connector Descriptions
Connector Use
PWR Input that accepts a 9 V to 16 V, 6 A external DC power connector.
1G/10G ETH Two SFP+ input terminals used for 1G ETH or 10G ETH connectivity with
the host driver. Not currently supported in LabVIEW FPGA.
REF OUT Output terminal for an external reference signal for the LO on the device.
REF OUT is a female SMA connector with an impedance of 50 Ω, and it is
a single-ended reference output. The output signal at this connector is
10 MHz at 3.3 V.
REF IN Input terminal for an external reference signal for the LO on the device.
REF IN is a female SMA connector with an impedance of 50 Ω, and it is a
single-ended reference input. REF IN accepts a 10 MHz signal with a
minimum input power of 0 dBm (0.632 Vpk-pk) and a maximum input
power of 15 dBm (3.56 Vpk-pk) for a square wave or sine wave.
USRP-2950/2952/2953/2954/2955 Getting Started Guide | © National Instruments | 25
