Verifying the Kit Contents

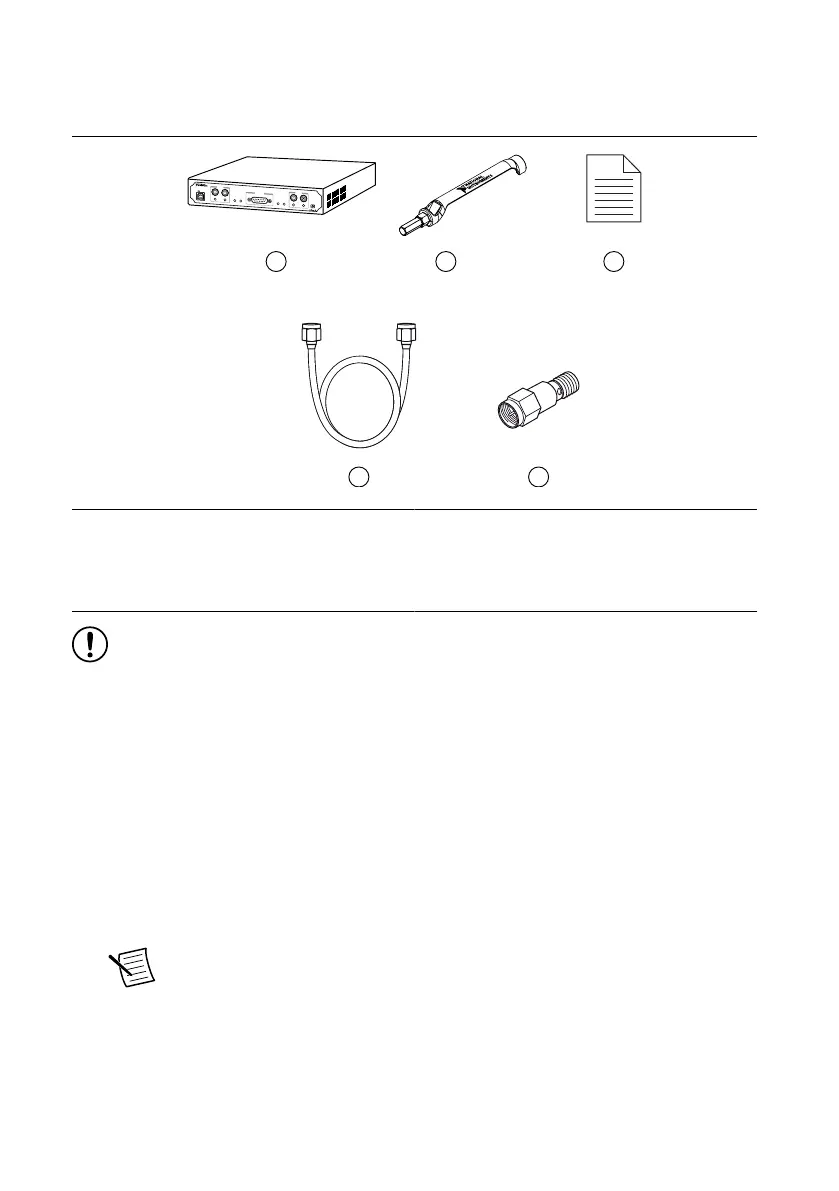

Figure 1. Kit Contents
LINK
PWR
TX OUTPUT MAX +20 dBm, RX INPUT MAX -15 dBm, ALL RF PORTS 50 W
TX1 RX1
RX2
GPS
PPS
REF
TX1 RX1
RX2
AUX I/O
3.3 VDC MAX
RF 0
RF 1
NI USRP-2943R
1.2 GHz - 6 GHz
NI USRP-2943R
1.2 GHz - 6 GHz
Designed by Ettus ResearchDesigned by Ettus Research
JTAG
1
54
3
2
1. USRP RIO Device
2. SMA Driver Bit (USRP-2955 Only)
3. Getting Started Guide (This Document) and
Safety, Environmental, and Regulatory
Information Document
4. SMA (m)-to-SMA (m) Cable
5. 30 dB SMA Attenuator (Not Included with
USRP-2955)
Notice If you directly connect or cable a signal generator to your device, or if you
connect multiple devices together, you must connect a 30 dB attenuator to the RF
input (RX1 or RX2) of each receiving USRP RIO device.
Other Required Item(s)
In addition to the kit contents, you must provide the following additional item(s):
• An MXI Express interface card. You can purchase an MXI Express interface kit for your
USRP RIO device, which contains an MXI Express interface card, at ni.com.
Optional Items
• LabVIEW Modulation Toolkit (MT), available for download at ni.com/downloads and
included in LabVIEW Communications System Design Suite, which includes MT VIs
and functions, examples, and documentation
Note You must install the LabVIEW Modulation Toolkit for proper operation
of the NI-USRP Modulation Toolkit example VIs.
• LabVIEW Digital Filter Design Toolkit, available for download at ni.com/downloads and
included in LabVIEW Communications System Design Suite
USRP-2950/2952/2953/2954/2955 Getting Started Guide | © National Instruments | 3
