2. Connect the MXI device to the USRP RIO device using the PCIe cable included in your
MXI Express interface kit.
Connecting to a Laptop Computer
Connect the USRP RIO device to a laptop computer using the ExpressCard-8360 for USRP
Device for PXI Remote Control.
1. Touch the ExpressCard-8360 for USRP and outer metal case of the USRP RIO device
simultaneously.
2. Connect the included cable to the to the ExpressCard-8360 for USRP.
3. Plug the ExpressCard-8360 for USRP into an available ExpressCard slot.
The completed hardware setup is shown in the following figure.

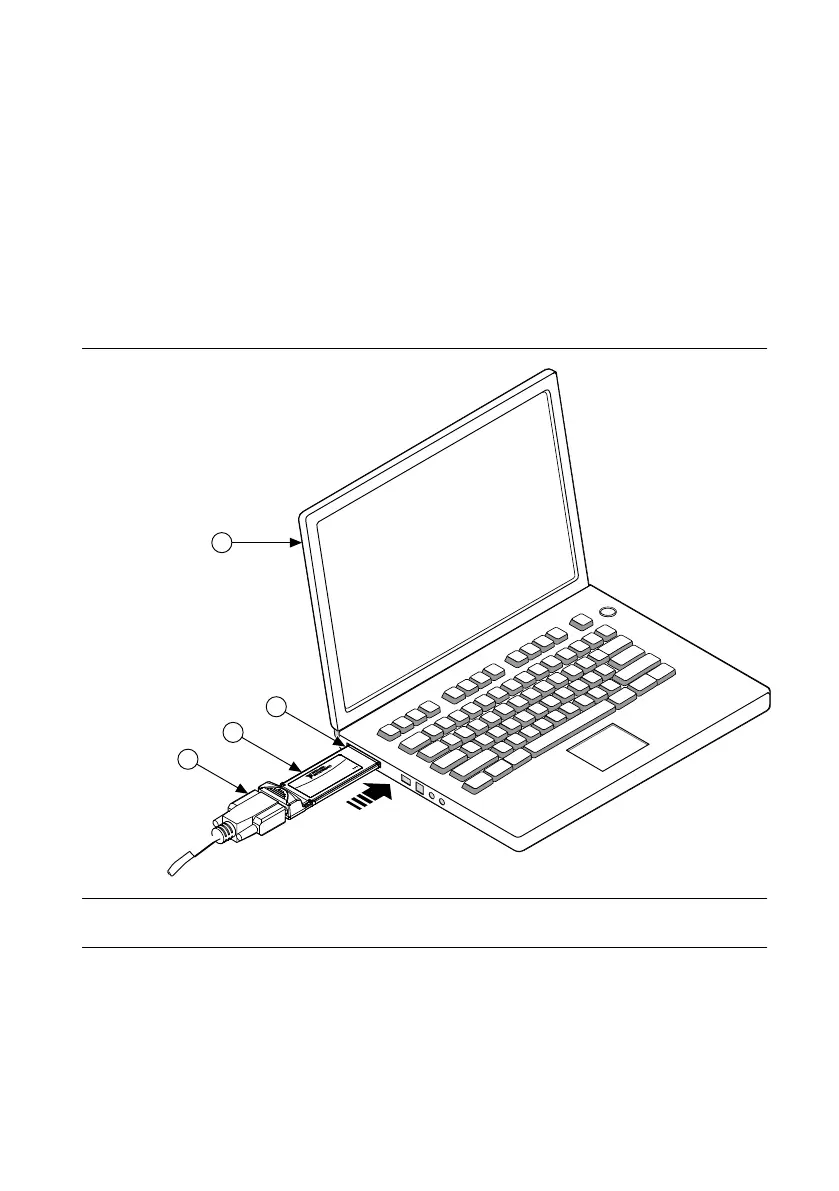

Figure 2.
Connecting the Device with a Laptop Connectivity Kit
NI ExpressCard-8360
INSERT CARD
ni.com
2
1
3
4
1. Cable Included with ExpressCard Interface Kit
2. ExpressCard-8360 for USRP
3. ExpressCard Slot
4. Laptop Computer
Powering on the Device
1. Connect the power supply to the USRP RIO device.
2. Plug the power supply into a wall outlet. Press the PWR button.
3. Power on the computer or laptop.
Windows automatically recognizes the USRP RIO device.
