Why Don't NI-USRP Examples Appear in the
NI Example Finder in LabVIEW?
NI-USRP does not install examples into the NI Example Finder.
Related Information
NI-USRP Examples, Lessons, and Sample Projects on page 11
Front Panels, Back Panels, and Connectors
Direct Connections to the Device
The USRP RIO device is a precision RF instrument that is sensitive to ESD and transients.
Ensure you take the following precautions when making direct connections to the USRP RIO
device to avoid damaging the device.
Notice Apply external signals only while the USRP RIO device is powered on.
Applying external signals while the device is powered off may cause damage.
• Ensure you are properly grounded when manipulating cables or antennas connected to the
USRP RIO device TX 1 RX 1, RX 1, or RX 2 connector.
• If you are using nonisolated devices, such as a nonisolated RF antenna, ensure the devices
are maintained in a static-free environment.
• If you are using an active device, such as a preamplifier or switch routed to the USRP
RIO device TX 1 RX 1, RX 1, or RX 2 connector, ensure that the device cannot generate
signal transients greater than the RF and DC specifications of the USRP RIO device TX 1
RX 1, RX 1, or RX 2 connector.

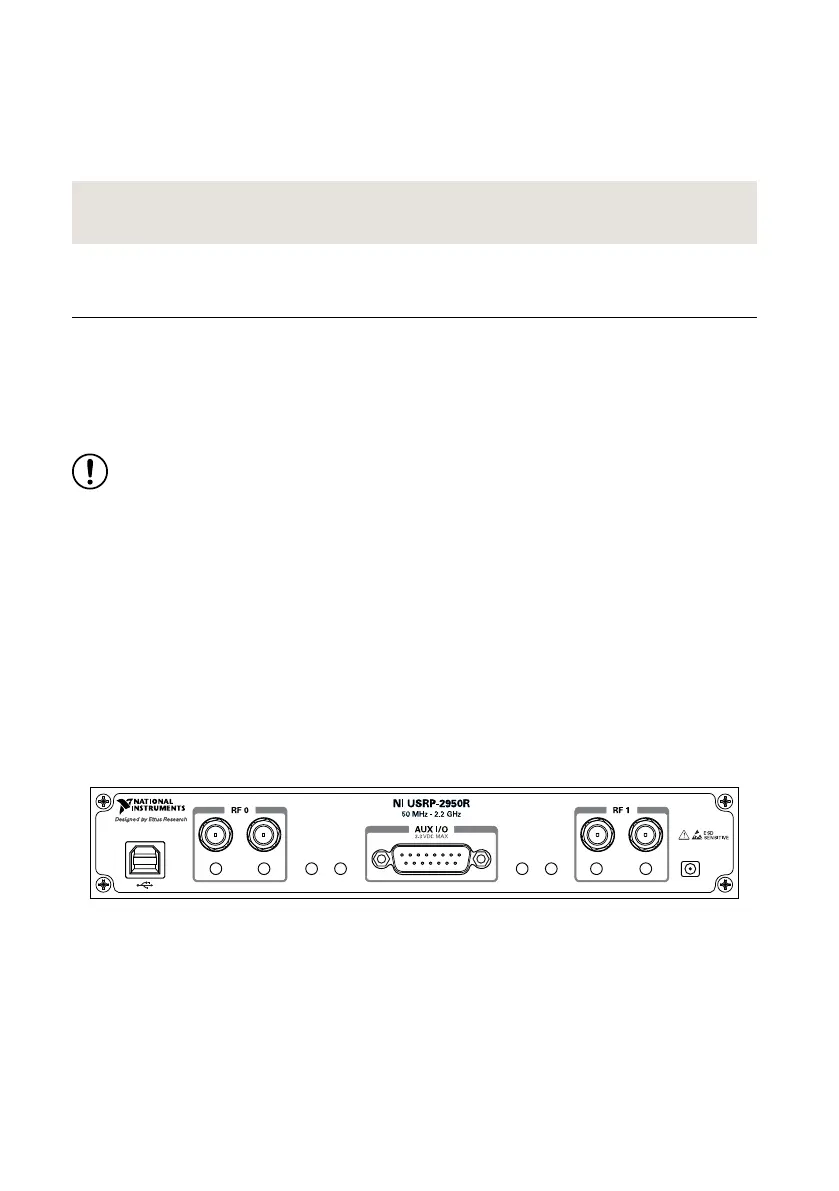

USRP-2950 Front Panel, Back Panel, and LEDs
Front Panel
LINK
TX OUTPUT MAX +20 dBm, RX INPUT MAX -15 dBm, ALL RF PORTS 50 Ω
TX1 RX1 RX2GPSPPSREF
TX1 RX1 RX2
JTAG
PWR
USRP-2950/2952/2953/2954/2955 Getting Started Guide | © National Instruments | 15
