National Instruments VirtualBench Calibration Procedure

68 | ni.com | NI VirtualBench Calibration Procedure
12. Disconnect all connections and connect Channel -25 V to Volts HI, and Common Floating
GND to Volts LO as shown in Figure 37. Connect GND and Common Floating GND with
a jumper.

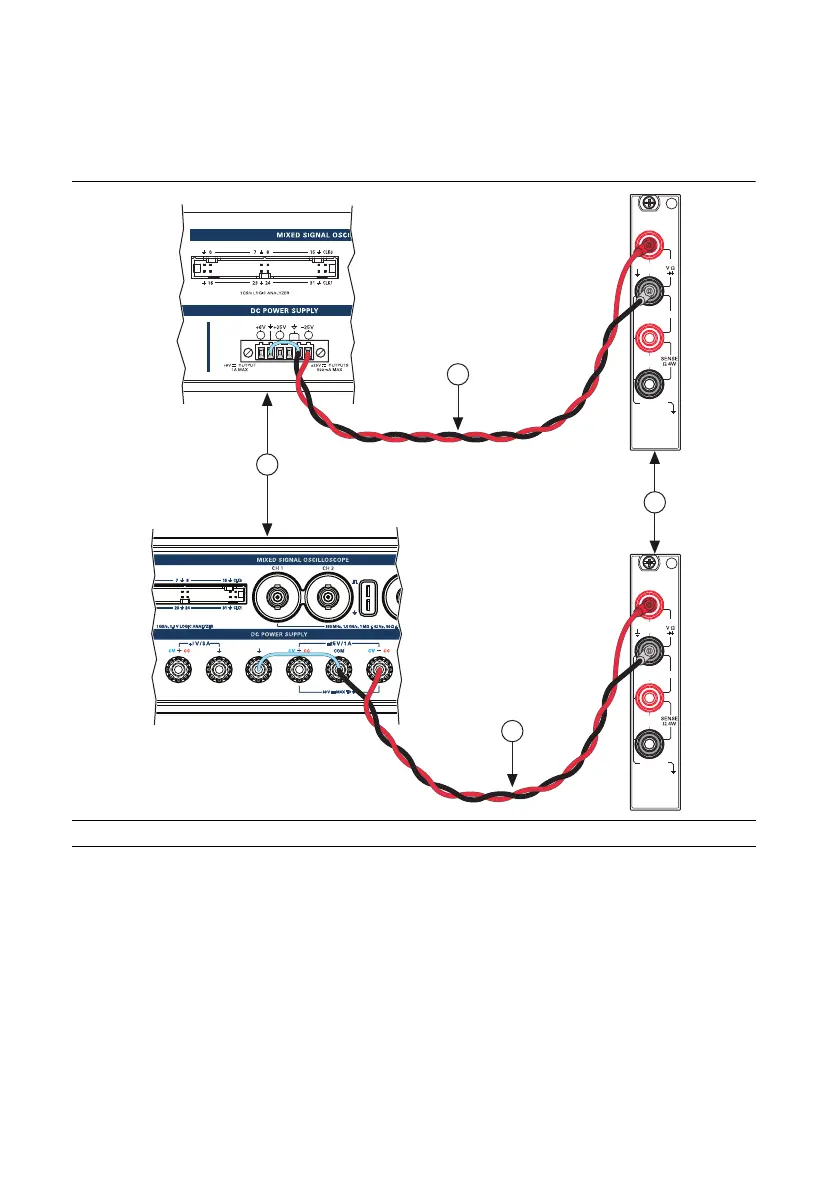

Figure 37. Cable Connections For -25 V Voltage Programming and
Measurement Accuracy Adjustment
13. Repeat steps 4 through 9 for the ps/-25V channel.
14. Call
PS Close Calibration with the following parameter:
• Action =
Commit
15. Disconnect all connections.
1 VirtualBench DC Power Supply 2DMM 3 Cabling Wire
1
3
3
2
HI
LO
300V
MAX
AMPS
500V MAX
HI
LO
1kV
MAX
3A, 250V
MAX
INPUT
MAX
1kV
HI
LO
300V
MAX
AMPS
500V MAX
HI
LO
1kV
MAX
3A, 250V
MAX
INPUT
MAX
1kV
