Native Instruments AUDIO 8 DJ User Manual

AUDIO 8 DJ – 19

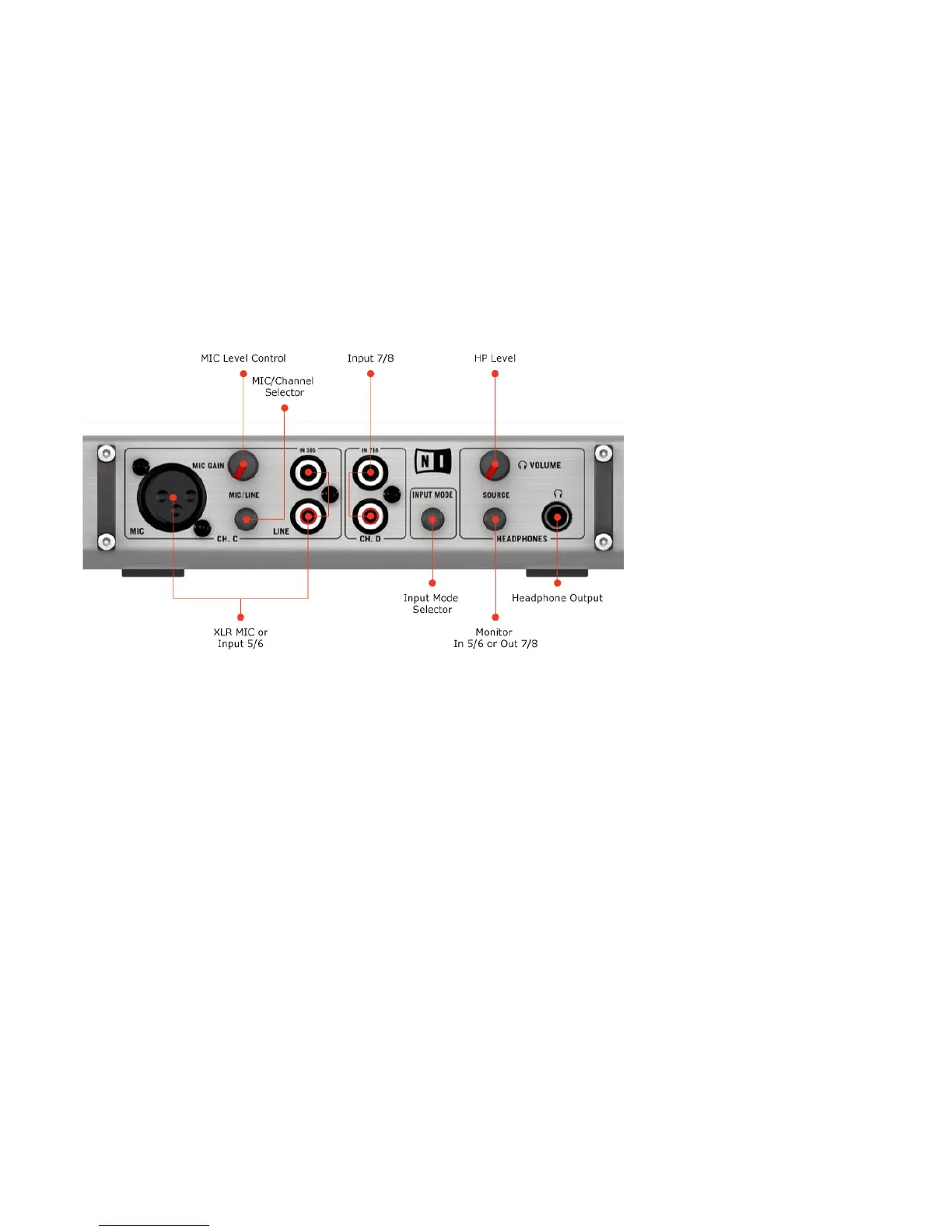

6.2 Front view and connections
MIC: Connect a microphone via XLR here.
IN 5|6 (CH C): Connect to effects output of your mixer for using the send ef-
fects.
MIC GAIN: Control the microphone volume here.
MIC/ LINE Selector: Select here your input source.
IN 7|8 (CH D): Connect to second output of your mixer, e.g. for recording
purposes.
INPUT MODE: Toggle between the input modes of D eck A and B (c oNtrol V iNyl ,
coNtrol cD/ liNe, phoNo).
HEADPHONES: Connect your headphones here if you don’t want to connect
them to the mixer.
SOURCE: Toggle between IN 5|6 and OUT 7|8 as sources.
Volume: Controls the headphones volume.
►
►
►
►
►
►
►
►
►

Native Instruments AUDIO 8 DJ Specifications

General

Brand	Native Instruments
Model	AUDIO 8 DJ
Category	Recording Equipment
Language	English
