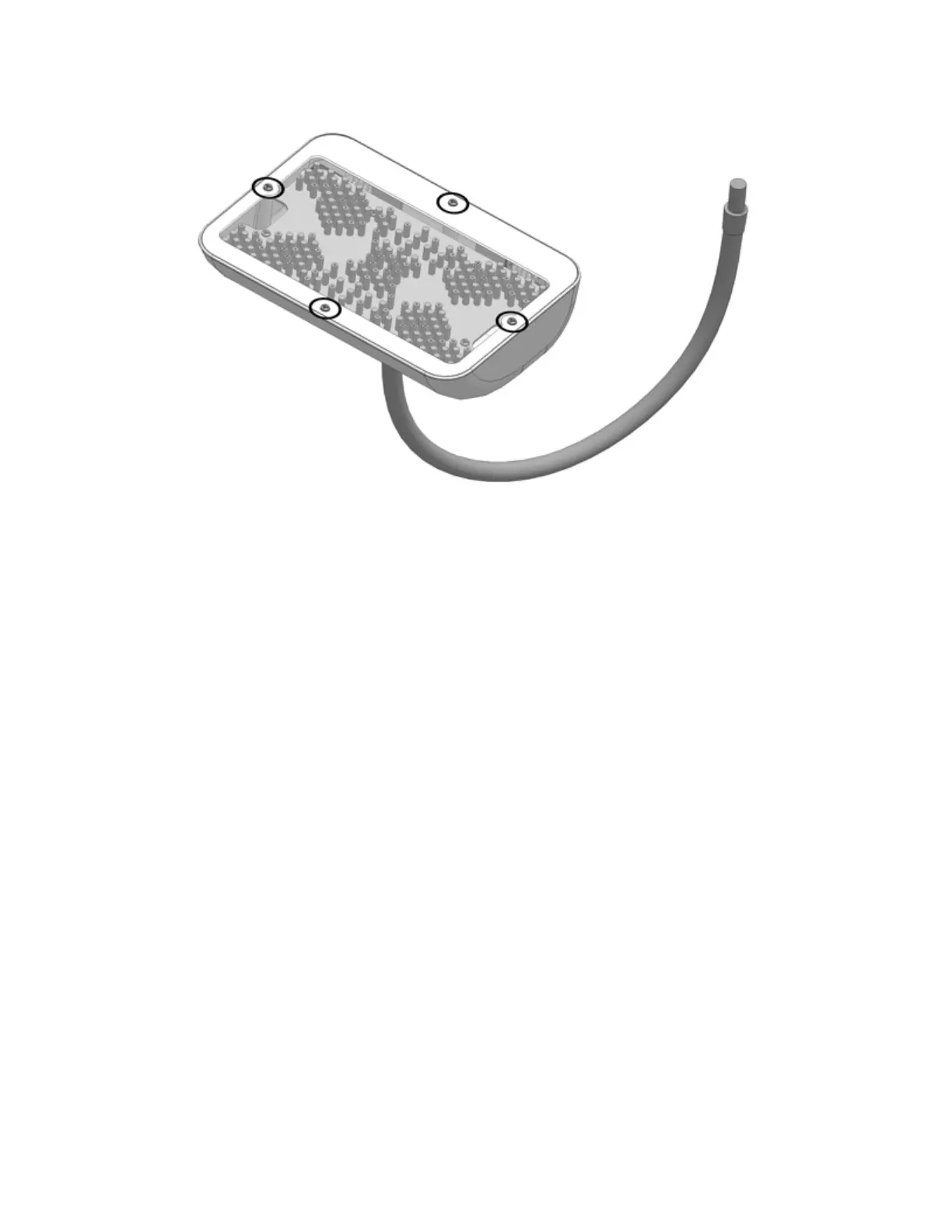

FIGURE 2
4. The lens is removed by gently pulling it away from the light enclosure. Use caution. The
lens assembly may fit tightly into light enclosure.
5. If you are replacing the lens assembly, obtain the replacement and reverse the previous
steps.
6. If no further repair is required, return to chapter 2, and perform Safety and Performance
Verification Tests. If further disassembly is required store the lens in a protected area
and proceed to section 4.2, Removing the LED PCB.
neoBLUE
®
mini System Service Manual P/N 051466F
11
