NV5/NV3.5 Troubleshooting Manual Responding to alarms
Page 1-32 Issue 3.2 2014-12-10

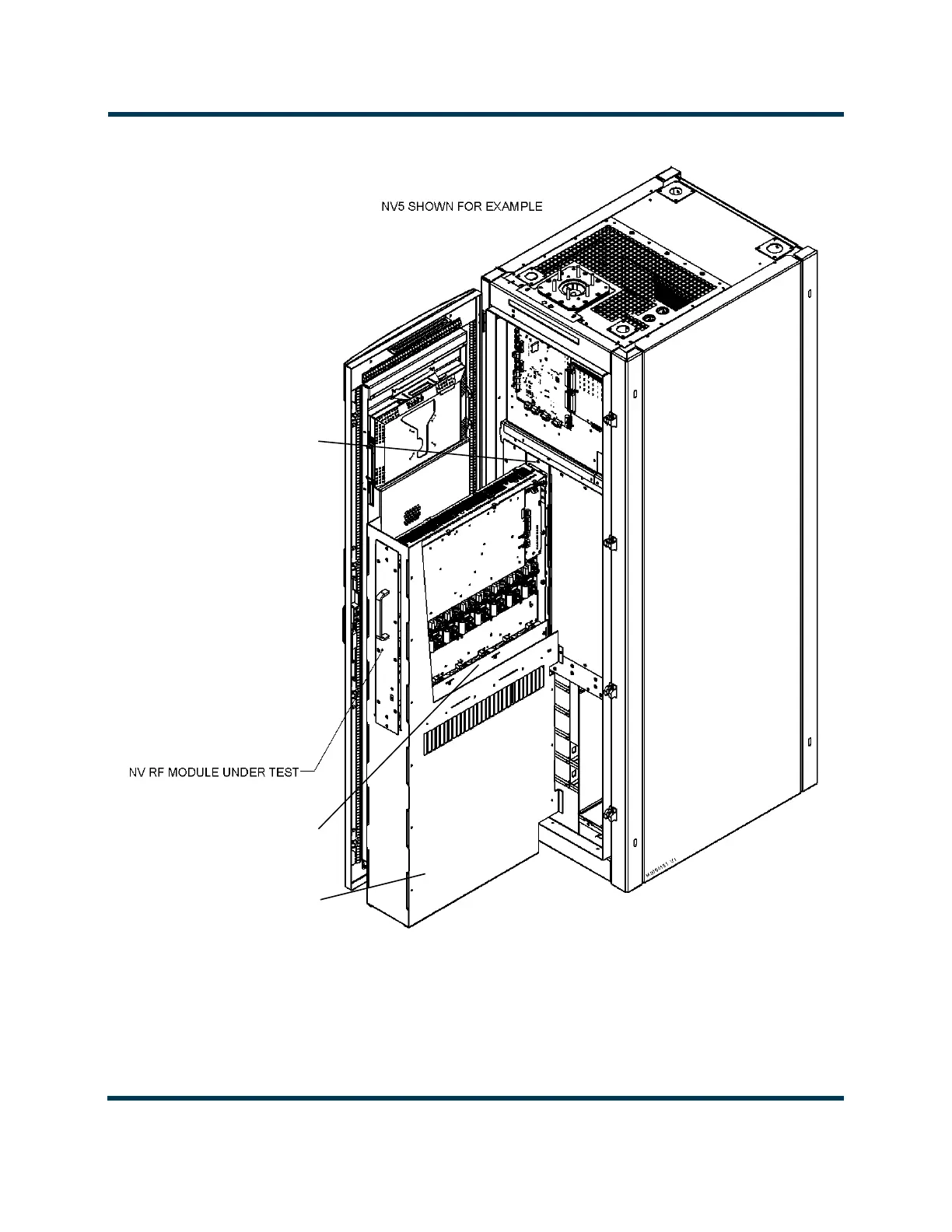

Figure 1.4: Testing an RF Power Module with the NV Power Module Extension Test Jig
4. Obtain the NV module extension support (Nautel Part # 206-5330). Install the extension
support at the front of the transmitter as shown in Figure 1.4. Secure the extension support
using two M5 screws, which are pre-existing on adjacent modules (e.g., modules 1 and 3).
Install, but do not tighten the screws at this time.
NV MODULE EXTENSION SUPPORT
MODULE COVER RUNNER
NV EXTENSION MODULE
(INSERTED IN MODULE POSITION)
