Nautilus E626 Service Manual

11
U626
J
J
A
L
A
B
C
C
D
E
F
G
H
I
K
M
N
O
P
Q
R
S
T
U
V
DD
EE
W
D
BB
Z
Y
J
X
AA
CC
FF
FF

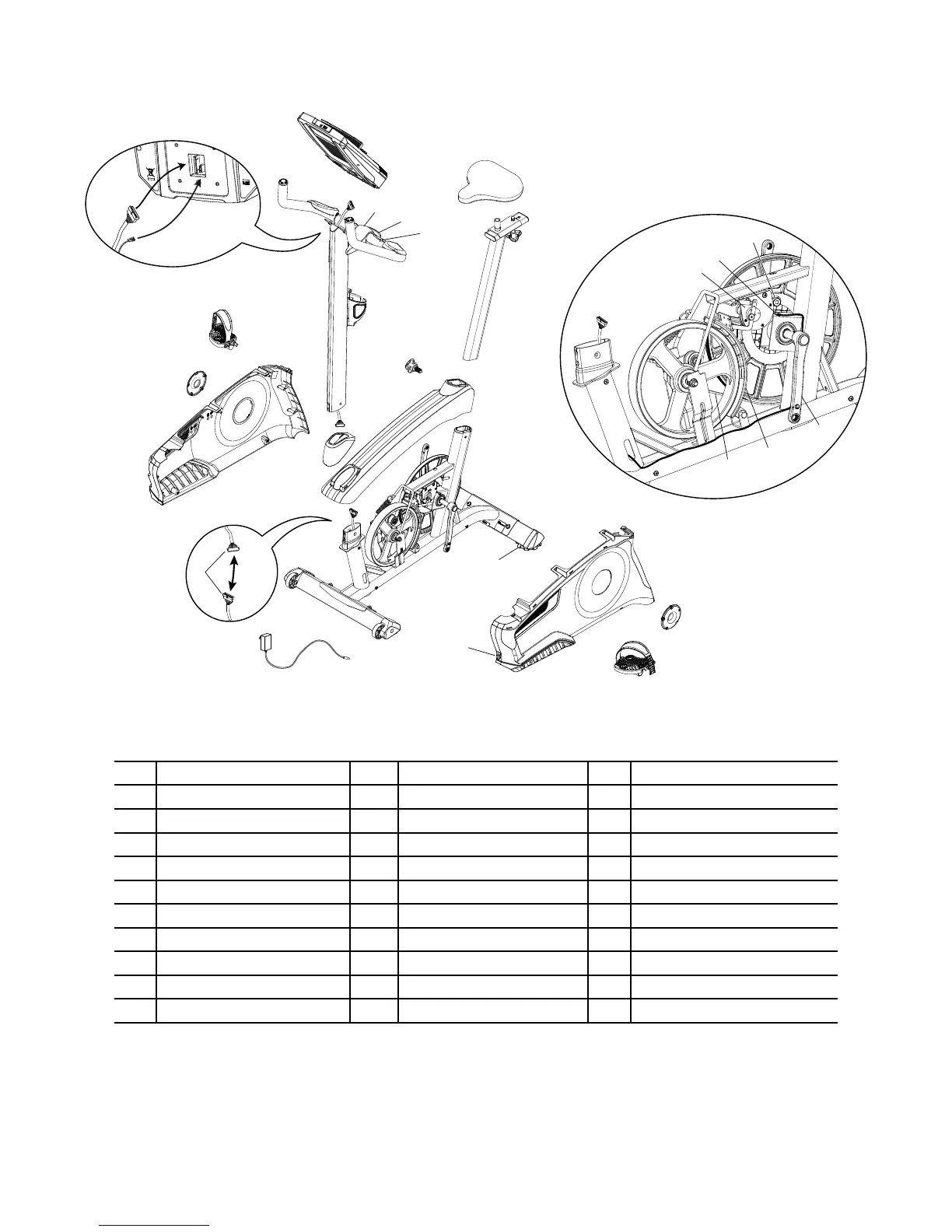

A Console L HR Cable W Flywheel
B Console Mast M CHR Sensors X Brake Assembly
C Pedals N Seat Y RPM Sensor
D Crank Arms O Seat Post w/ Slider Z Speed Sensor Magnet
E Left Shroud P Adjustment Knob AA Servo Motor
F Power Inlet Q AC Adapter BB Drive Belt
G Right Shroud R Water Bottle Holder CC Drive Pulley
H Top Shroud S Rear Stabilizer DD Handlebar Mount Cover
I Mast Gasket T Levelers EE T-handle
J Data Cable U Front Stabilizer FF Cover, Crank Disc
K Handlebars V Transport Wheels

Nautilus E626 Specifications

General

Bottle holder	Yes
Product color	Black, Grey
Number of programs	29
Maximum user weight	136 kg
Number of resistors	25
Training displayed parameters	Calories, Distance, Time
